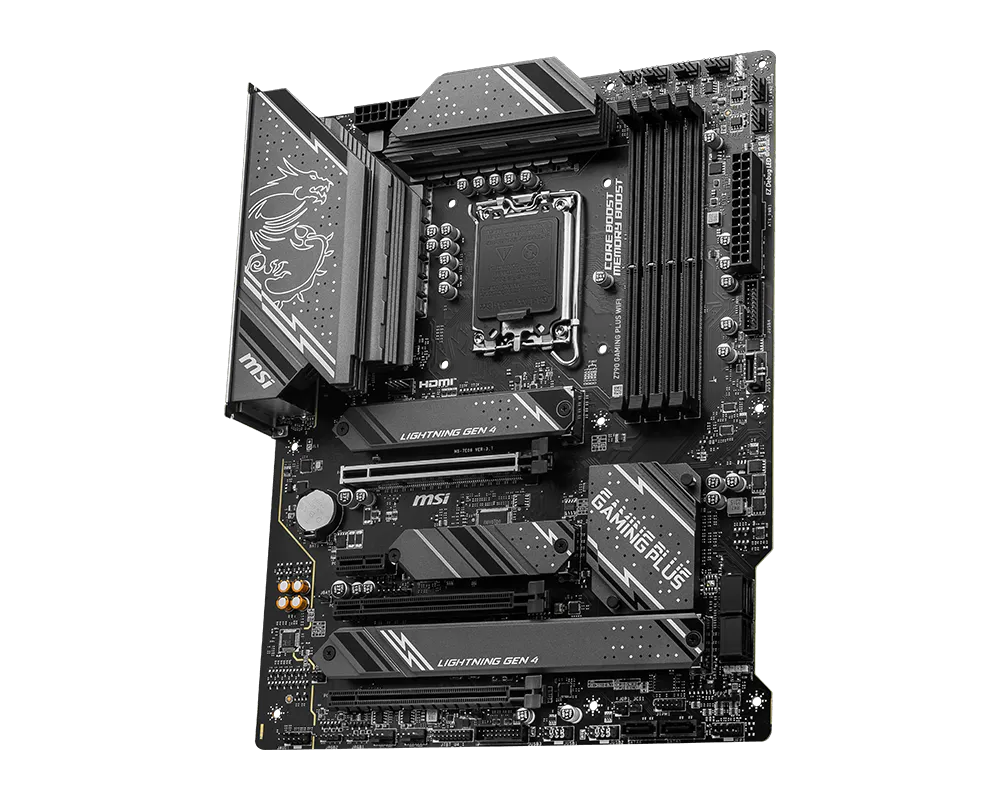

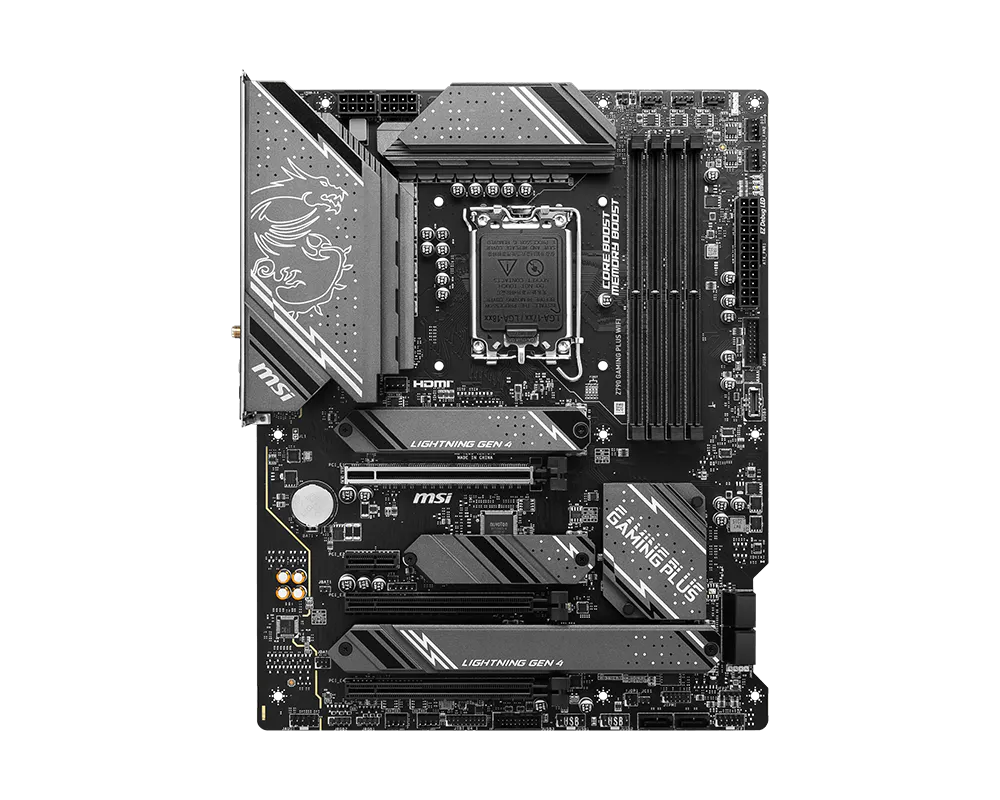

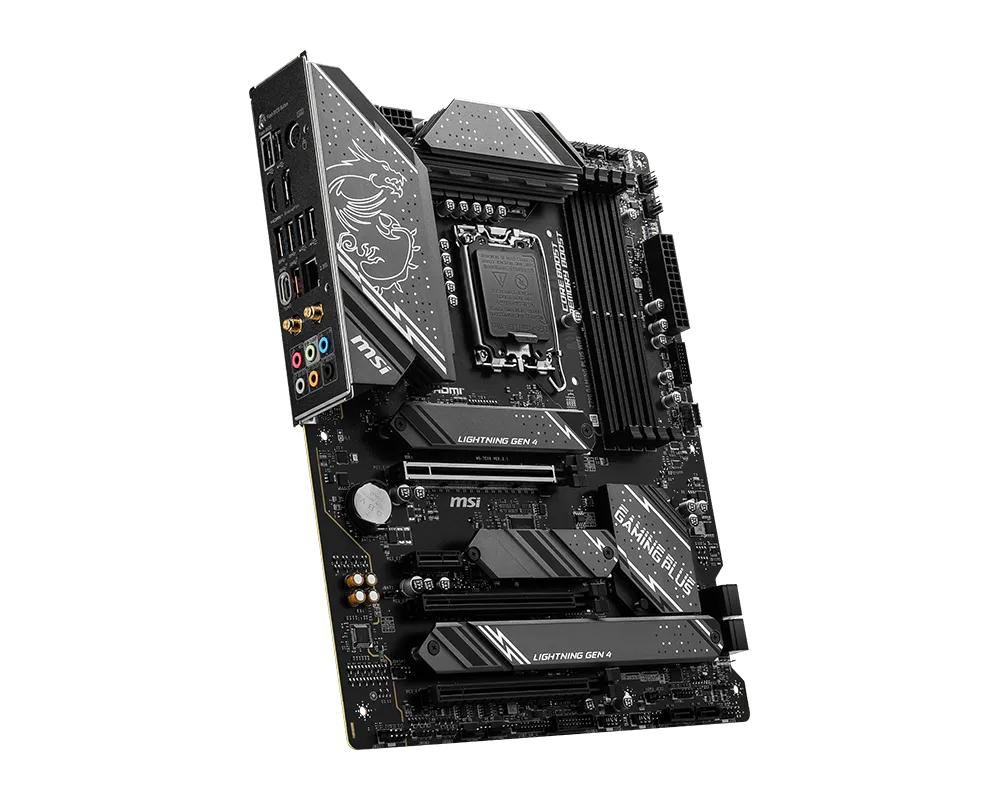

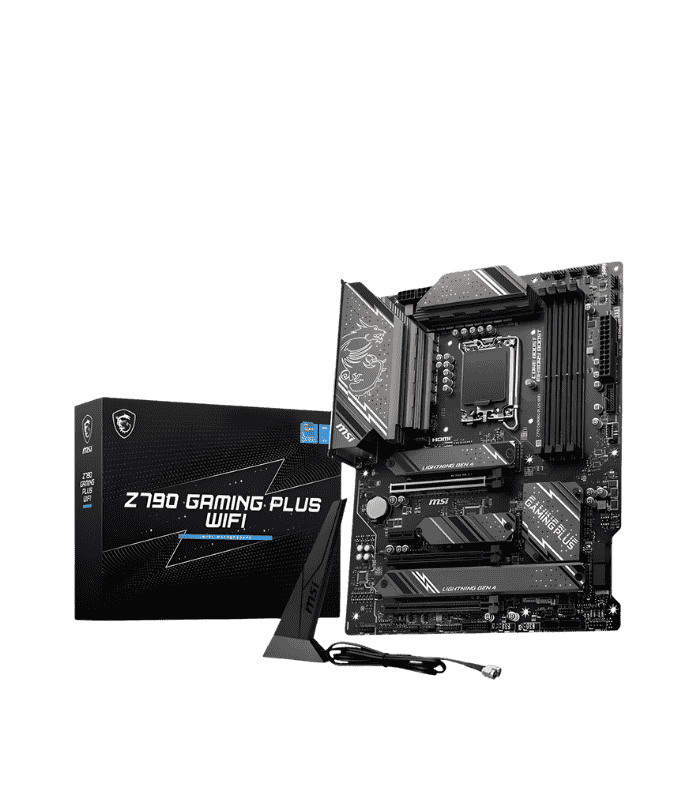

MSI Z790 GAMING PLUS WIFI ATX LGA1700 Motherboard
£172.99 Inc.VAT
In stock
In stock
Features
- Form Factor: ATX
- Socket: Intel LGA 1700
- Chipset: Intel Z790
- DDR Type: DDR5
View Delivery Options
- Free Click & Collect: Pick up today from our Central London store.
- Standard Delivery (Free): Arrives in 2–3 working days.
- Express Delivery: Arrives in 1–2 working days.
View Payment Methods
MSI Z790 GAMING PLUS WIFI ATX Motherboard – Next-Generation Performance & Military-Grade Durability
Advanced Thermal Management and System Cooling
The MSI Z790 GAMING PLUS WIFI features an extensive thermal architecture designed to sustain elite performance under extreme gaming and computing workloads. A heavy-plated VRM heatsink covers the upper MOS to quickly dissipate heat, assisted by premium 7W/mK MOSFET thermal pads and additional choke pads that ensure all processor cores run efficiently at high speeds. The cooling array is completed by an extended heatsink surface, a dedicated chipset heatsink to lower dust and noise, and M.2 Shield Frozr technology to keep high-speed solid-state drives safely cooled and free from thermal throttling.
Â
Ultimate PCI-E 5.0 and High-Speed Expansion
Built to handle next-generation components, this motherboard integrates Lightning Gen 5 PCI-E technology, elevating the bandwidth of the primary x16 slot to a massive 128GB/s. The advanced Surface Mount Technology (SMT) deployment minimizes electrical noise and signal interference to ensure total stability for high-end graphics cards. To ensure durability, the expansion slots are engineered with extra solder points and reinforced connections, providing the structural integrity needed to securely support the physical weight of modern, heavy GPUs.
Â
Elite Memory and Storage Capabilities
Engineered with high-speed DDR5 memory architecture, the platform supports dual-channel memory configurations capable of hitting overclocked speeds up to 7200 MHz and a massive capacity of 192GB. Storage performance is equally robust, offering four onboard M.2 slots utilizing high-bandwidth PCI Express channels for rapid boot times and lightning-fast file loads. Supplementing the NVMe slots are six traditional SATA 6Gb/s connectors, giving PC builders an incredibly flexible arrangement for high-capacity hybrid configurations containing both modern SSDs and traditional hard drives.
Â
Next-Gen Connectivity and Immersive Audio

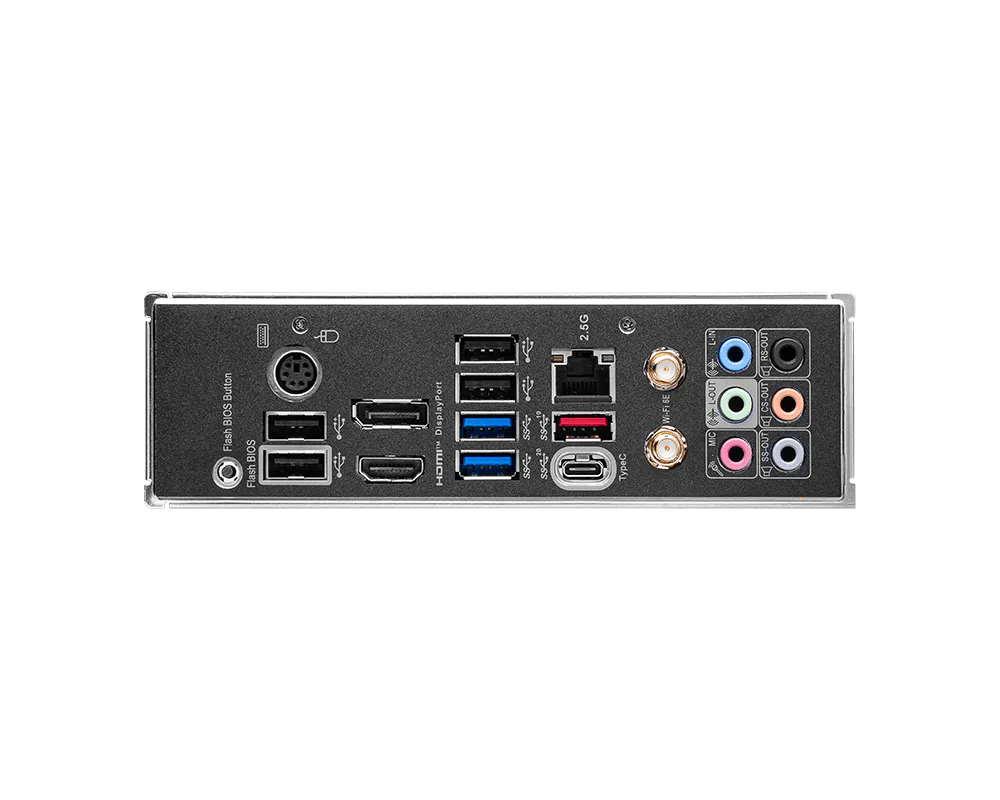

The rear and internal I/O arrays offer comprehensive connectivity, highlighted by ultra-fast USB 3.2 Gen 2x2 Type-C ports capable of rapid peripheral data transfers. Networking is managed through a low-latency 2.5 Gigabit Ethernet port alongside an onboard Wi-Fi 6E module and Bluetooth 5.3, providing clear, high-speed wireless signals over multiple bands. Sound performance is anchored by the integrated Realtek ALC897 audio processor, delivering 7.1-channel high-definition audio complete with an optical S/PDIF out port to create a highly immersive gaming and entertainment soundstage.
Â
| Brand | MSI |
| Model | Z790 GAMING PLUS WIFI |
| Motherboard Chipset Family | Intel |
| Motherboard Chipset | Intel Z790 |
| Supported Processor Sockets | LGA 1700 |
| Motherboard Form Factor | ATX |
| Supported Memory Types | DDR5-SDRAM |
| Number Of Memory Slots | 4 |
| Maximum Internal Memory | 192 GB |
| Supported Memory Clock Speed Max | 7200 MHz |
| Number Of M2 Slots | 4 |
| Number Of Sata Iii Connectors | 6 |
| Raid Levels | 0, 1, 5, 10 |
| Hdmi Ports Quantity | 1 |
| Hdmi Version | 2.1 |
| Ethernet Lan Ports | 1 |
| Ethernet Interface Type | 2.5 Gigabit Ethernet |
| Top Wi-Fi Standard | Wi-Fi 6 (802.11ax) |
| Bluetooth Version | 5.3 |
| Usb 32 Gen 2×2 Type C Ports Quantity | 1 |
| Audio Output Channels | 7.1 channels |
| Width | 243.8 mm |
| Depth | 304.8 mm |
| Mpn | 7E06-026R |
| Ean | 4711377134712 |
| Warranty Type | Manufacturer Limited Warranty |
| Warranty Period | 3 Years |
| Warranty Coverage | Parts and labor for manufacturing defects |
| Warranty Service Location | Authorized MSI Service Centers |
| Warranty Verification | Requires serial number and proof of purchase |
| Weight | 1.58 kg |
|---|---|
| Manufacturer | MSI |
| Chipset Manufacturer | INTEL |
| Motherboard Form Factor | ATX |
| DDR Type | DDR5 |
| Socket | LGA 1700 |
| Motherboard WIFI | Yes |
