Asrock Z890M RIPTIDE WIFI, Intel Z890, 1851, Micro ATX, 4 DDR5, HDMI, DP, 2 TB4, Wi-Fi 6E, 2.5G LAN, RGB, 3x M.2
Original price was: £207.80.£195.88Current price is: £195.88.
Asrock Z890M RIPTIDE WIFI, Intel Z890, 1851, Micro ATX, 4 DDR5, HDMI, DP, 2 TB4, Wi-Fi 6E, 2.5G LAN, RGB, 3x M.2
MPN:
Z890M RIPTIDE WIFI
- Form Factor: Micro ATX
- Socket: Intel LGA 1851
- Chipset: Intel Z890
- DDR Type: DDR5
Original price was: £207.80.£195.88Current price is: £195.88.
Out of stock
Out of stock
Want to be notified when this product is back in stock?
‣ 0% Interest for 4 months
‣ Finance your purchase with PayPal
Payment Methods:
Product Description
ASRock Z890M Riptide WiFi Ultimate Power and Precision Micro ATX Motherboard
Unmatched Power Delivery for Serious Gamers

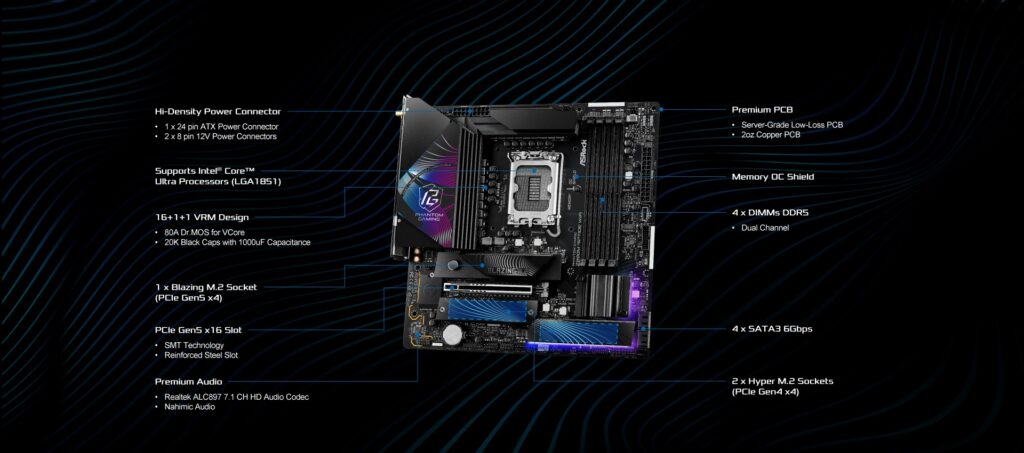

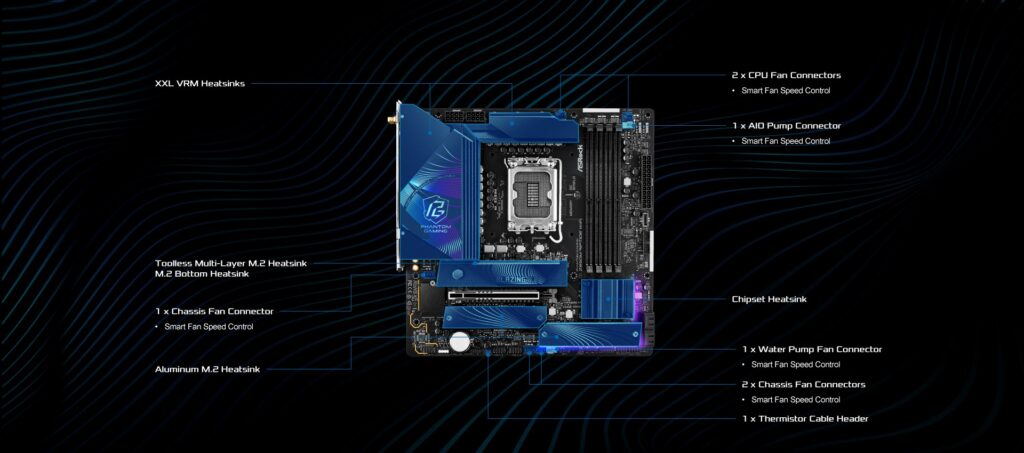

The ASRock Z890M Riptide WiFi motherboard is built for the next generation of gaming and computing. Equipped with Intel’s LGA1851 socket and the robust Z890 chipset, it supports Intel® Core™ Ultra Processors (Series 2) with a powerful 16+1+1+1+1 power phase design and 80A Dr.MOS for VCore, GT, and SA. Its micro ATX form factor makes it ideal for compact high-performance builds, while advanced DDR5 memory support reaching 9066+ MHz (OC) offers cutting-edge speed for demanding applications. Aluminum and XXL heatsinks keep components cool under pressure, and a 2oz Copper PCB ensures solid overclocking support.
Connectivity That Powers Modern Workflows

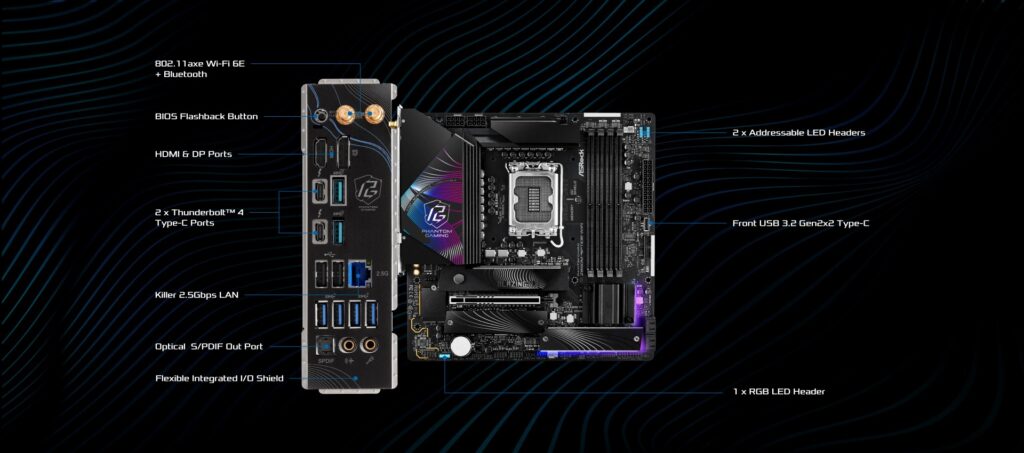

Whether you're gaming, streaming, or creating content, the Z890M Riptide WiFi keeps you connected. It features three ultra-fast M.2 slots, including one blazing Gen5 slot, and four SATA3 ports for expansive storage. Enjoy next-gen USB connectivity with Thunderboltâ„¢ 4, USB 3.2 Gen2x2, and 10Gbps Type-A ports. Integrated networking includes Killerâ„¢ 2.5G LAN and Wi-Fi 6E with extended 6GHz band support, while Bluetooth 5.3 ensures seamless peripheral pairing. For visual output, it offers HDMI, DisplayPort, and dual Thunderboltâ„¢ 4 Type-C.
Premium Audio and User-Friendly Features
The Realtek ALC1220 7.1 HD Audio Codec, enhanced with Nahimic Audio, delivers immersive surround sound with noise cancellation and sound tracking. RGB lovers will appreciate Polychrome RGB lighting with ARGB splitter support. The board is loaded with user-friendly features like BIOS Flashback, Auto Driver Installer, integrated I/O shield, and extensive fan headers for a well-rounded, highly customizable setup. Whether you’re a seasoned enthusiast or a first-time builder, the Z890M Riptide WiFi sets a new benchmark in performance, efficiency, and usability.
| Specification | Details |
|---|---|
| Motherboard Type | Desktop |
| Form Factor | Micro ATX |
| Socket | Intel 1851 |
| Chipset | Intel Z890 |
| CPU Support | Support Intel Core Ultra Processors (Series 2) |
| RAM Technology | DDR5 (Dual Channel), Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM), Supports Intel XMP |
| RAM Slots | 4 x DIMM |
| RAM Speeds | Up to 9066 MHz (OC) |
| Maximum Memory | 256 GB |
| Graphics | Integrated Graphics Graphics specifications may vary between CPU types |
| Graphics Ports | 1 x HDMI 1 x Display Port 2 x Thunderbolt 4 |
| PCI/PCI Express | 1 x PCIe 5.0 x16 (supports x16 mode) * PCIE1 supports PCIe riser cards to extend one x16 slot to x8/x8 or x8/x4/x4 slots. |
| Storage | 4 x SATA III 3 x M.2 M.2_1 – PCIe 5.0 x4 M.2_2 – PCIe 4.0 x4 M.2_3 – PCIe 4.0 x4 & SATA |
| RAID | Supports RAID 0, 1, 5, and 10 for SATA and M.2 NVMe storage devices |
| Wireless | 802.11axe Wi-Fi 6E Module Bluetooth 5.3 Dual-Band 2×2 160MHz Supports MU-MIMO |
| LAN | 2.5GB LAN |
| Audio | 7.1 CH HD Audio (Realtek ALC897 Audio Codec) |
| USB Ports Supported | Rear: 2 x Thunderbolt 4 (USB Type-C), 2 x USB 10Gbps Type-A, 4 x USB 5Gbps Type-A, 2 x USB 2.0 Front: 1 x USB 20Gbps Type-C, 2 x USB 5Gbps, 4 x USB 2.0 |
| Back Panel I/O Ports | 2 x Antenna 1 x HDMI 1 x Display Port 1.4 1 x Optical SPDIF Out 2 x Thunderbolt 4 Type-C 2 x USB 3.2 Gen2 Type-A 4 x USB 3.2 Gen1 2 x USB 2.0 1 x RJ-45 LAN 1 x BIOS Flashback Button 1 x Line Out Jack 1 x Microphone Input Jack |
| Internal I/O Connectors | Thermistor Cable, SPI TPM, Power LED and Speaker, RGB LED, 2 x Addressable LED, 2 x CPU Fan, 3 x Chassis Fan, AIO Pump Fan, Water Pump Fan, 24 pin ATX, 2 x 8 pin 12V, Front Panel Audio, USB 2.0, USB 3.2 Gen1, Front Panel Type-C USB 3.2 Gen2x2 |
| Accessories | 2 x SATA Data Cables, 2 x ASRock WiFi Antennas, 1 x ARGB Splitter Cable, 1 x Thermistor Cable |
| Package Type | Retail |
| Package Weight | 1.8000 kg |
| Warranty | 3 Year Replacement Warranty |
| Full Box Quantity | 10 |
