Asus PRIME B760M-A WIFI mATX, LGA1700, DDR5, Wi-Fi 6, 2.5G LAN
Original price was: £134.62.£126.89Current price is: £126.89.
Asus PRIME B760M-A WIFI mATX, LGA1700, DDR5, Wi-Fi 6, 2.5G LAN
MPN:
90MB1EL0-M1EAY0
- Form Factor: Micro ATX
- Socket: Intel LGA 1700
- Chipset: Intel B760
- DDR Type: DDR5
Original price was: £134.62.£126.89Current price is: £126.89.
Out of stock
Out of stock
Want to be notified when this product is back in stock?
‣ 0% Interest for 4 months
‣ Finance your purchase with PayPal
Payment Methods:
Product Description

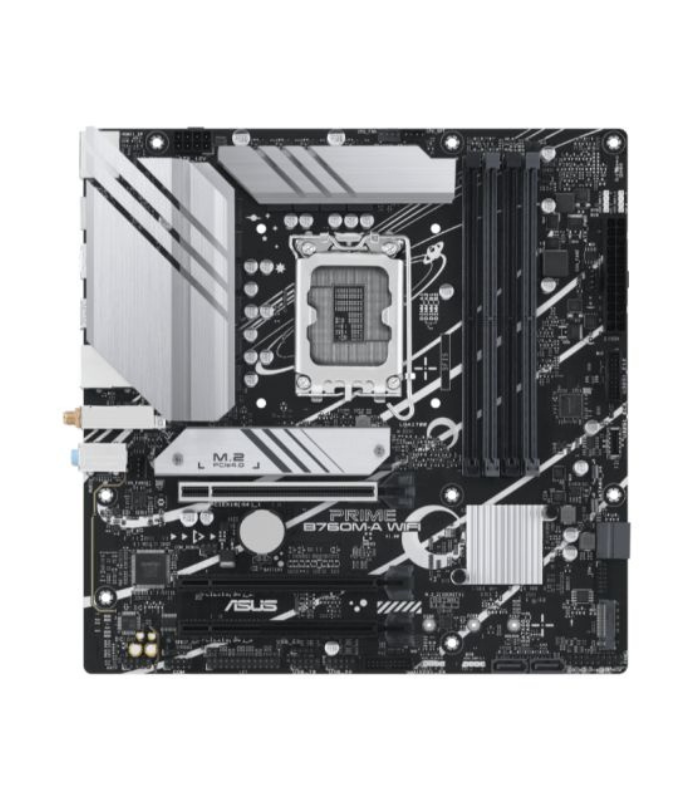

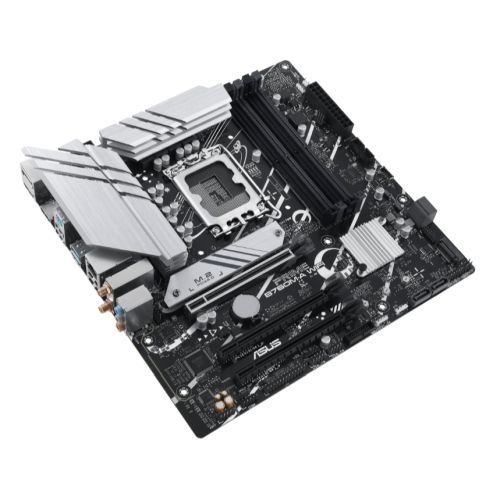

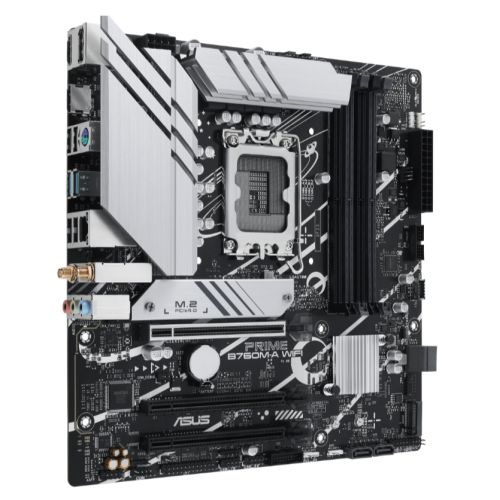

ASUS Prime B760M-A WIFI (LGA 1700) mATX Motherboard
This motherboard features the Intel B760 chipset and supports 13th and 12th Gen Intel Core processors with the LGA 1700 socket. It delivers high-speed performance with PCIe 4.0, DDR5 memory, dual M.2 slots, Realtek 2.5Gb Ethernet, and Wi-Fi 6. Advanced cooling includes VRM heatsinks, an M.2 heatsink, PCH heatsink, hybrid fan headers, and Fan Xpert 2+ for efficient thermal control.
For connectivity, it offers rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C, DisplayPort, dual HDMI, and SATA 6 Gbps. Memory performance is enhanced with ASUS OptiMem II and Enhanced Memory Profile II. Customizable RGB lighting is supported through Aura Sync, including onboard Addressable Gen 2 and Aura RGB headers.
Designed for performance and flexibility, the ASUS Prime B760M-A WIFI maximizes the potential of 13th Gen Intel processors with strong power delivery, smart cooling, and easy tuning options. Its optimized cooling system uses multiple heatsinks and hybrid fan headers to maintain stability under heavy use. Fast data transfer is possible with PCIe 4.0, dual M.2 slots, and Wi-Fi 6.
Built for productivity and customization, this motherboard ensures reliable performance for work or gaming. It provides stable power for high-core-count CPUs, flexible expansion with multiple USB and display options, and personalized aesthetics through Aura Sync RGB lighting.
—
This version keeps all the details while improving readability and flow. Let me know if you’d like any further refinements!
Here’s your motherboard specification formatted into a clean and structured HTML table:
| Motherboard Specifications | |
|---|---|
| Type | Desktop |
| Form Factor | Micro ATX |
| Socket | Intel 1700 |
| Chipset | Intel B760 |
| RAM Technology | DDR5 (Dual Channel) |
| RAM Slots | 4 x DIMM |
| RAM Speeds | Up to 7200+ (OC) |
| Maximum Memory | 192GB |
| Graphics | Integrated Graphics* |
| Graphics Ports | 2 x HDMI, 1 x DisplayPort |
| PCI/PCI Express | 1 x PCIe 4.0 x16 1 x PCIe 4.0 x16 (x4 mode) 1 x PCIe 4.0 x16 (x1 mode) |
| Storage | 4 x SATA III 2 x M.2 (2242/2260/2280) – PCIe |
| RAID | Intel Rapid Storage Technology supports SATA RAID 0/1/5/10 |
| Wireless | Wi-Fi 6 (2×2, 802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.2 |
| LAN | 2.5GB LAN |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC |
| USB Ports Supported | 2 x USB 3.2 Gen2 Type-A (back) 4 x USB 3.2 Gen1 (mid-board) 9 x USB 2.0 (4 back, 5 mid-board) 1 x Front Panel USB 3.2 Gen1 Type-C |

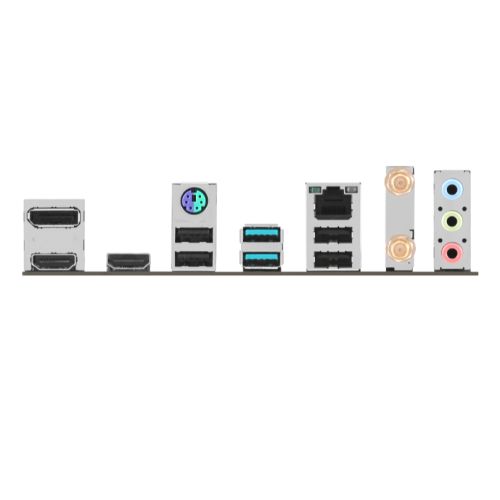

| Back Panel I/O Ports | 2 x USB 3.2 Gen2 Type-A 4 x USB 2.0 1 x DisplayPort 2 x HDMI 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo |
| Internal I/O Connectors | 1 x 4-pin CPU Fan 1 x 4-pin CPU OPT Fan 2 x 4-pin Chassis Fan 1 x 24-pin Main 1 x 8-pin +12V 2 x M.2 (Key M) 4 x SATA 6Gb/s 2 x USB 3.2 Gen1 1 x USB 3.2 Gen1 Type-C 3 x USB 2.0 3 x Addressable Gen2 1 x Aura RGB 1 x Clear CMOS 1 x COM Port 1 x Front Panel Audio 1 x LPT 1 x S/PDIF Out 1 x SPI TPM (14-1 pin) 1 x 20-3 pin System Panel |
| Accessories | 2 x SATA 6Gb/s cables 1 x ASUS Wi-Fi moving antennas 1 x I/O Shield 1 x M.2 Rubber Package 1 x Screw package for M.2 SSD 1 x User guide |
| Additional Features | See Overview |
| Package Type | Retail |
| Package Weight | 1.6000 kg |
| Warranty | 3 Years |
| Full Box Quantity | 10 |
