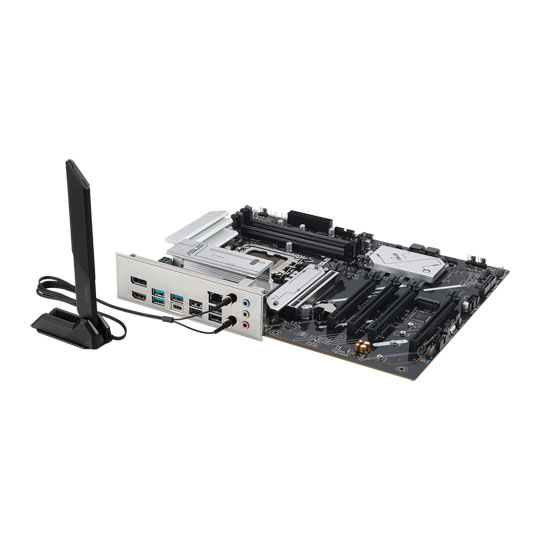

Asus PRIME B860-PLUS WIFI Intel B860 ATX 4 DDR5 HDMI DP Wi-Fi 6E 2.5G LAN 2x M.2
Original price was: £116.74.£110.04Current price is: £110.04.
Asus PRIME B860-PLUS WIFI Intel B860 ATX 4 DDR5 HDMI DP Wi-Fi 6E 2.5G LAN 2x M.2
MPN:
90MB1K50-M0EAY0
- Form Factor: ATX
- Socket: Intel LGA 1851
- Chipset: Intel B860
- DDR Type: DDR5
Original price was: £116.74.£110.04Current price is: £110.04.
Out of stock
Out of stock
Want to be notified when this product is back in stock?
‣ 0% Interest for 4 months
‣ Finance your purchase with PayPal
Payment Methods:
Product Description
ASUS PRIME B860-PLUS WIFI Built for Power, Tuned for AI-Driven Performance
Next-Gen Power and AI Performance
The ASUS PRIME B860-PLUS WIFI is expertly engineered for the next generation of computing, providing rock-solid support for Intel® Core™ Ultra Processors (Series 2). With its robust 8+1+1+1 power stage configuration and high-end DrMOS components, this ATX motherboard ensures that your CPU receives reliable, stable power—even under demanding AI-based workloads. Advanced AI tuning and power-saving features allow your system to intelligently adapt to heavy workloads or idle moments, ensuring performance when you need it and efficiency when you don’t.
High-Speed Connectivity and Cutting-Edge Expansion
This board is equipped to handle everything from everyday multitasking to high-speed gaming and creative production. Wi-Fi 6E with Q-Antenna provides ultra-fast, interference-free connectivity on the 6 GHz band, while the Realtek 2.5Gb LAN ensures stable and rapid wired networking. With PCIe 5.0, multiple high-speed M.2 slots, and USB 20Gbps support, this motherboard empowers your build with high-bandwidth expansion, fast storage, and lightning-fast external connections.
DIY Friendly and Personalized Build Options
Tailored for system builders, the ASUS PRIME B860-PLUS WIFI includes a pre-mounted I/O shield, Q-Antenna, and Q-LED diagnostic lights for a seamless setup experience. You also get customizable RGB lighting via Aura Sync and Addressable Gen2 headers, allowing your system to shine with synchronized effects. Whether you’re building for gaming, work, or AI development, this motherboard offers the tools, power, and performance to take your PC to the next level.
| Description | Specification |
|---|---|
| Motherboard Type | Desktop |
| Form Factor | ATX |
| Socket | Intel 1851 |
| Chipset | Intel B860 |
| DDR Type | DDR5 |
| CPU Support | Click here for CPU support |
| RAM Technology | DDR5 (Dual Channel), Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM), Supports Intel XMP, ASUS Enhanced Memory Profile III |
| RAM Slots | 4 x DIMM |
| RAM Speeds | Up to 8200+ MT/s (OC) |
| Maximum Memory | 256GB |
| Graphics | Integrated Graphics |
| Graphics Ports | 1 x HDMI, 1 x Display Port |
| PCI/PCI Express |
Intel Core Ultra CPUs (Series 2): 1 x PCIe 5.0 x16 Intel B860 Chipset: 1 x PCIe 4.0 x16 (supports x4 mode) 3 x PCIe 4.0 x16 (support x1 mode) |
| Storage |
4 x SATA III, 2 x M.2 Intel Core Ultra CPUs (Series 2): M.2_1 (2242/2260/2280) – PCIe 5.0 x4 Intel B860 Chipset: M.2_2 (2242/2260/2280/22110) – PCIe 4.0 x4 |
| RAID | Intel Rapid Storage Technology supports SATA RAID 0/1/5/10 |
| Wireless | 2×2 Wi-Fi 6E (802.11ax), Supports 2.4/5/6GHz frequency band, Bluetooth v5.3 |
| LAN | 2.5GB LAN |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC |
| USB Ports Supported |
Rear: 1 x USB 20Gbps Type-C 2 x USB 10Gbps Type-A 1 x USB 5Gbps Type-A 4 x USB 2.0 Front: 1 x USB 5Gbps Type-C 2 x USB 5Gbps 2 x USB 2.0 |

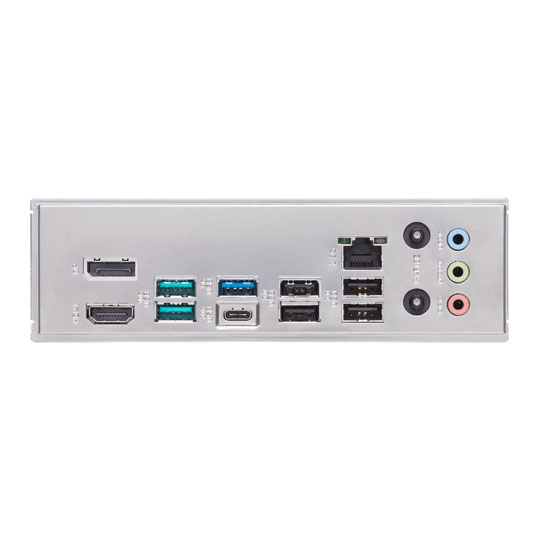

| Back Panel I/O Ports |
1 x USB 20Gbps Type-C 2 x USB 10Gbps Type-A 1 x USB 5Gbps Type-A 4 x USB 2.0 1 x Display Port 1 x HDMI 1 x Wi-Fi module 1 x Realtek 2.5Gb Ethernet 3 x Audio jacks |
| Internal I/O Connectors |
1 x 4-pin CPU Fan 1 x 4-pin CPU OPT Fan 1 x 4-pin AIO Pump 4 x 4-pin Chassis Fan 1 x 24-pin Main 1 x 8-pin +12V CPU 2 x M.2 (Key M) 4 x SATA 6Gb/s 1 x USB 5Gbps Type-C 1 x USB 5Gbps 1 x USB 2.0 3 x Addressable Gen2 1 x Aura RGB 1 x Clear CMOS 1 x Chassis Intrusion 1 x COM Port header 1 x Front Panel Audio 1 x S/PDIF Out 1 x SPI TPM (14-1pin) 1 x 10-1 pin Front System Panel 1 x Thunderbolt (USB4) |
| Accessories |
2 x SATA 6Gb/s cables 1 x ASUS WiFi Q-Antenna 1 x M.2 rubber package 1 x Screw package for M.2 SSD 1 x Quick start guide |
| Package Type | Retail |
| Package Weight | 1.6600 kg |
| Warranty | 3 Years |
