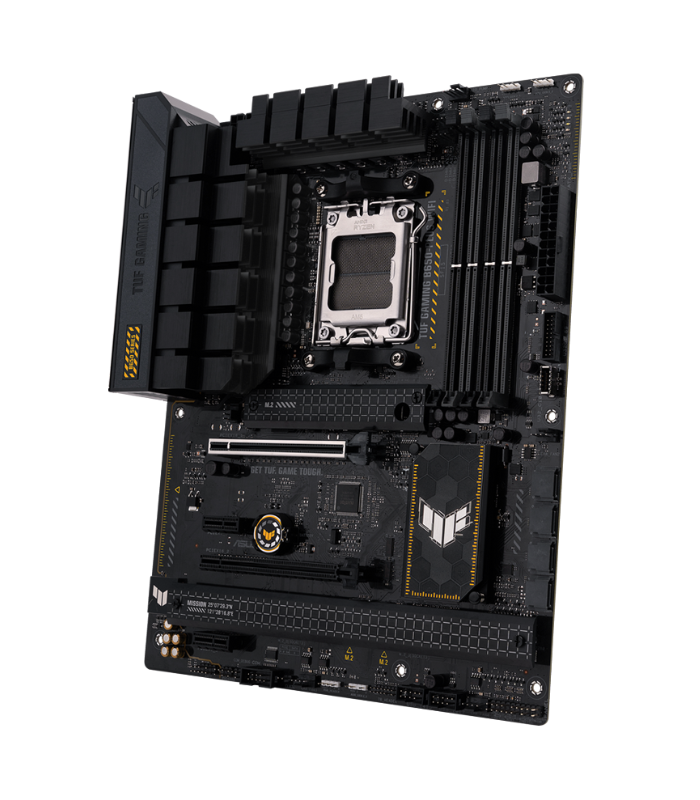

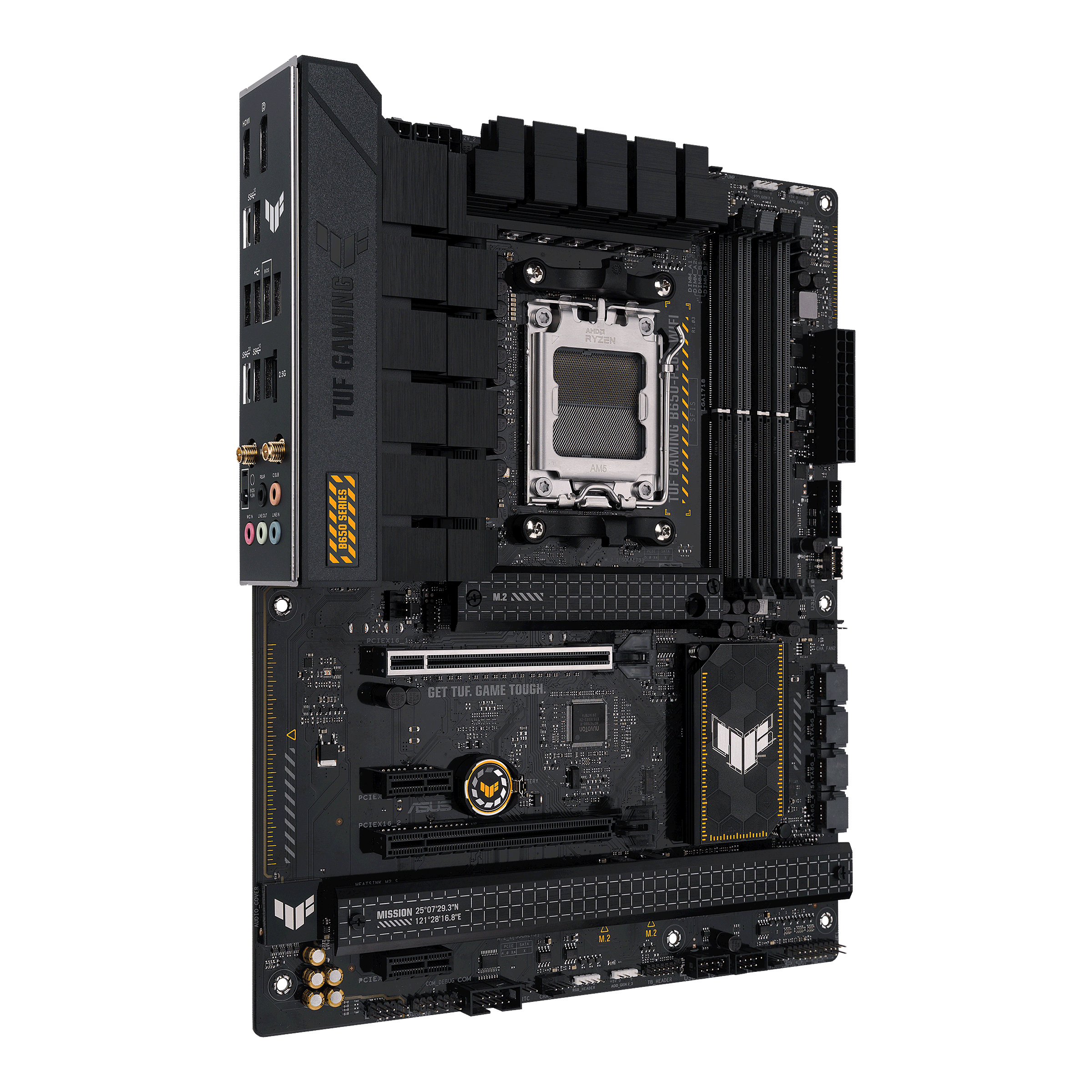

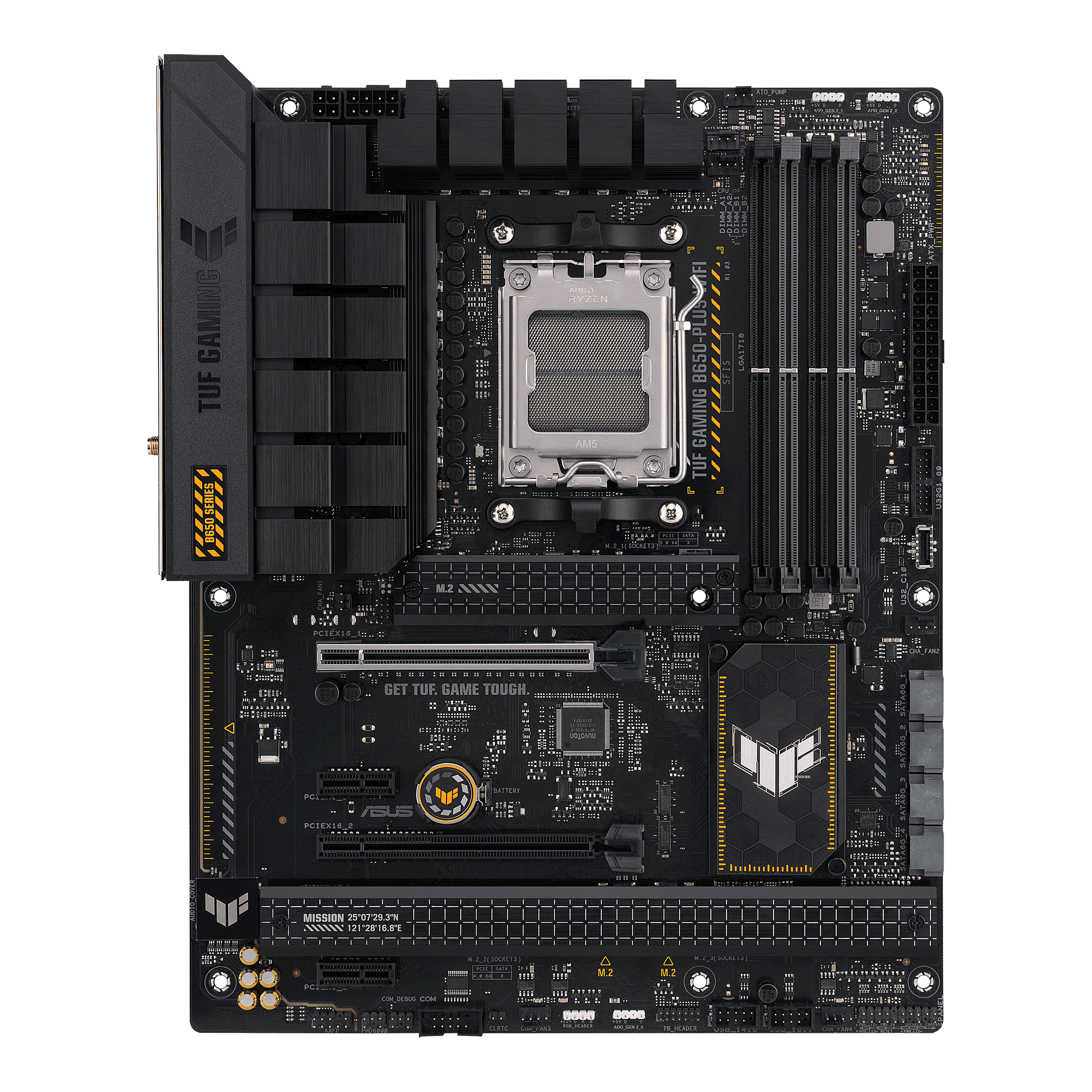

The ASUS TUF GAMING B650-PLUS WIFI motherboard combines the latest AMD Ryzen 7000-series processor support with game-ready features and exceptional durability, making it ideal for gaming enthusiasts. Built with military-grade components, an upgraded power solution, and an advanced cooling system, this motherboard offers rock-solid, stable performance for extended gaming sessions. The TUF GAMING series undergoes rigorous testing to ensure it can withstand extreme conditions where others may fail. The motherboard’s rugged design, featuring off-black and geometric elements, reflects the strength and reliability of the TUF GAMING brand. Key features include:

• 12+2 power stages (60A) with enlarged VRM heatsinks
• PCIe® 5.0 support for graphics cards and M.2 storage
• DDR5 memory compatibility
• USB 3.2 Gen 2×2 Type-C® and front-panel USB 3.2 Gen 1 Type-C® header
• 2.5 Gb Ethernet and Wi-Fi 6
• Two-Way AI Noise Cancellation for clear communication

The ASUS TUF GAMING B650 also offers intelligent control options, such as the AMD Precision Boost Overdrive (PBO) for CPU performance optimization, comprehensive fan controls through Fan Xpert 4 and ASUS UEFI BIOS, and integration with Armoury Crate for easy system customization and RGB lighting management. Built to deliver exceptional stability and power, it supports faster memory and storage, and the enhanced VRM and M.2 heatsink designs ensure consistent performance. With the TUF GAMING B650, you’ll experience immersive gaming with Wi-Fi 6, 2.5 Gb Ethernet, and high-quality audio features, including Realtek 7.1 Surround Sound and DTS Audio Processing for superior gaming audio. The motherboard also supports addressable Gen 2 RGB headers for personalized system lighting. Designed for gamers and builders alike, the TUF GAMING B650 ensures easy setup, compatibility with a wide range of parts, and long-lasting reliability. Specification

• Specification	Details
  Motherboard Type	Desktop
  Form Factor	ATX
  Socket	AMD AM5
  Chipset	AMD B650
  DDR Type	DDR5
  CPU Support	Click here for CPU support
  RAM Technology	DDR5 (Dual Channel)
  RAM Slots	4 x DIMM
  RAM Speeds	Up to 6400+(OC)
  Maximum Memory	192GB
  Graphics	Integrated Graphics*
  Graphics Ports	1 x HDMI 1 x DisplayPort
  PCI/PCI Express	1 x PCIe 4.0/3.0 x16 1 x PCIe 4.0/3.0 x16 (supports x4 mode) 2 x PCIe 4.0/3.0 x1
  Storage	4 x SATA III 1 x M.2 (2242/2260/2280) – PCIe 1 x M.2 (2242/2260/2280/22110) – PCIe 1 x M.2 (2242/2260/2280) – PCIe
  RAID	AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10
  Wireless	Wi-Fi 6, 2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax), Supports 2.4/5GHz frequency band Bluetooth v5.2
  LAN	2.5GB LAN
  Audio	Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC
  USB Ports Supported	1 x USB 3.2 Gen2x2 Type-C (at back) 1 x USB 3.2 Gen2 Type-C (at back) 2 x USB 3.2 Gen2 Type-A (at back) 2 x USB 3.2 Gen1 (at mid-board) 8 x USB 2.0 (4 at back, 4 at mid-board) 1 x Front USB 3.2 Gen1 Type-C connector

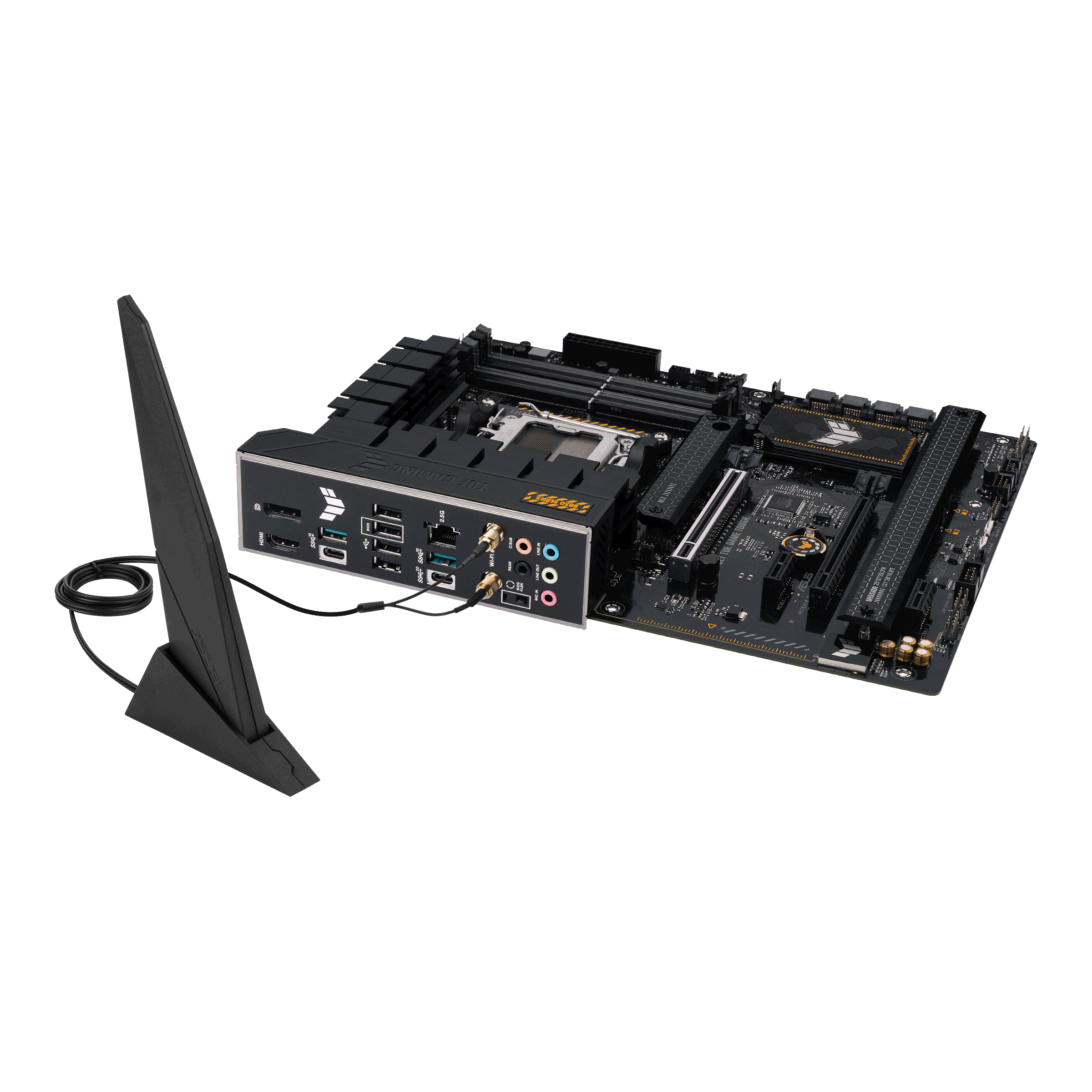

  Back Panel I/O Ports	1 x USB 3.2 Gen2x2 Type-C 3 x USB 3.2 Gen2 Type-C 4 x USB 2.0 1 x DisplayPort 1 x HDMI 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet 5 x Audio jacks 1 x BIOS FlashBack button
  Internal I/O Connectors	1 x 4-pin CPU Fan 1 x 4-pin CPU OPT Fan 1 x 4-pin AIO Pump 4 x 4-pin Chassis Fan 1 x 24-pin Main 1 x 8-pin +12V 1 x 4-pin +12V 3 x M.2 (Key M) 4 x SATA 6Gb/s 1 x USB 3.2 Gen1 Type-C 1 x USB 3.2 Gen1 2 x USB 2.0 3 x Addressable Gen2 1 x Aura RGB 1 x Clear CMOS 1 x COM Port 1 x Front Panel Audio 20-3 pin System Panel 1 x Thunderbolt
  Accessories	2 x SATA 6Gb/s cables 1 x ASUS Wi-Fi moving antennas 2 x Rubber Package(s) for M.2 1 x Screw package(s) for M.2 SSD 1 x Support DVD 1 x TUF Certification card 1 x User guide
  Additional Features	See Overview
  Package Type	Retail
  Package Weight	2.0000 kg
  Warranty	3 Years
  M.2 Slot(s)	Yes (M.2)
  No. LAN Ports	1 x LAN
  Max LAN Speed	2.5GB LAN
  Wi-Fi	Yes (Wi-Fi)
