Asus PRIME A620M-E-CSM, AMD A620, Micro ATX, DDR5, VGA, HDMI, DP, GB LAN, PCIe 4.0, M.2
Original price was: £113.30.£106.80Current price is: £106.80.
Asus PRIME A620M-E-CSM, AMD A620, Micro ATX, DDR5, VGA, HDMI, DP, GB LAN, PCIe 4.0, M.2
MPN:
90MB1F50-M0EAYC
- Form Factor: Micro ATX
- Socket: AMD AM5
- Chipset: AMD A620
- DDR Type: DDR5
Original price was: £113.30.£106.80Current price is: £106.80.
In stock
In stock
‣ 0% Interest for 4 months
‣ Finance your purchase with PayPal
Payment Methods:
Product Description

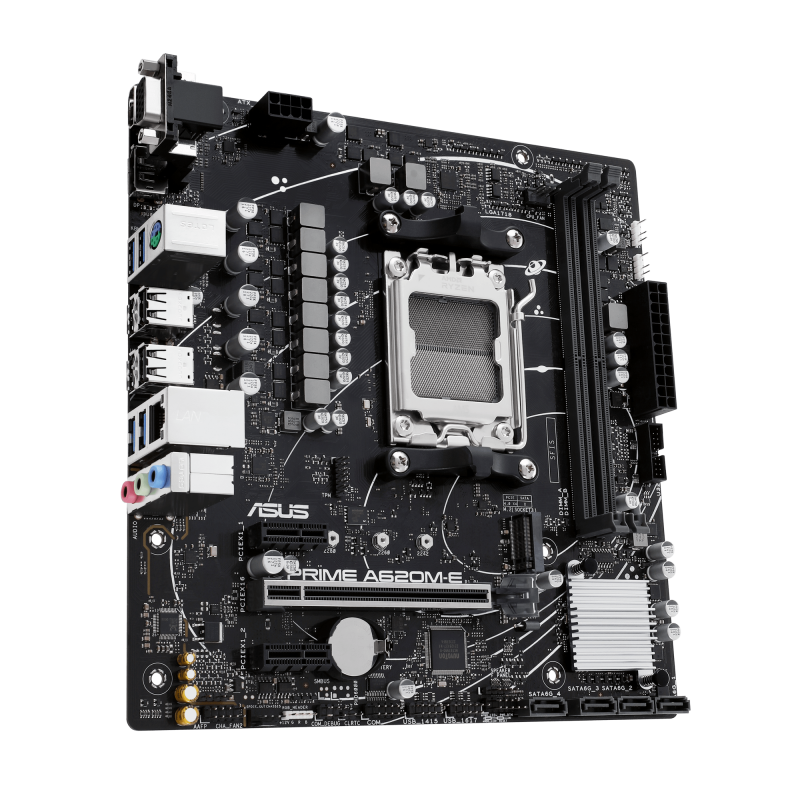

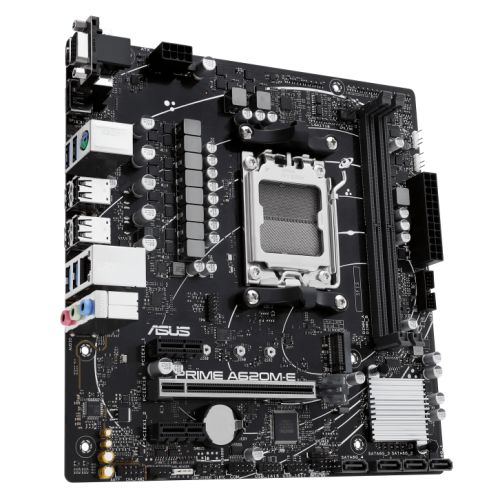

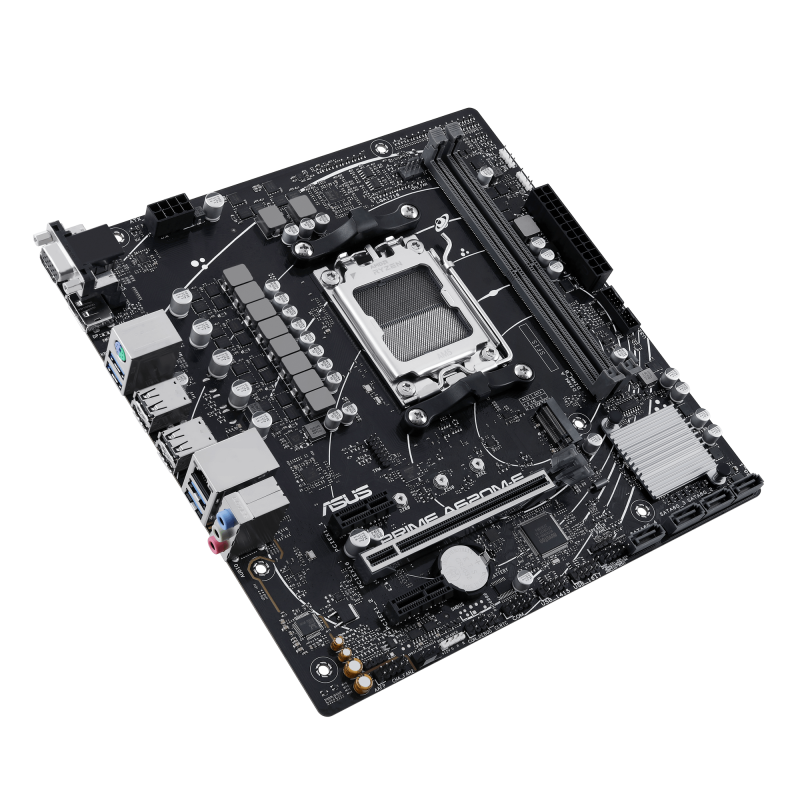

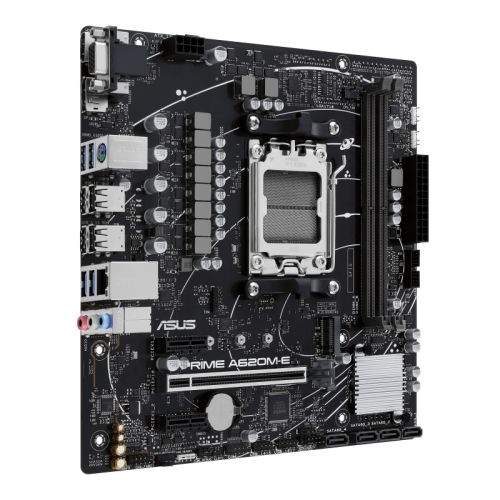

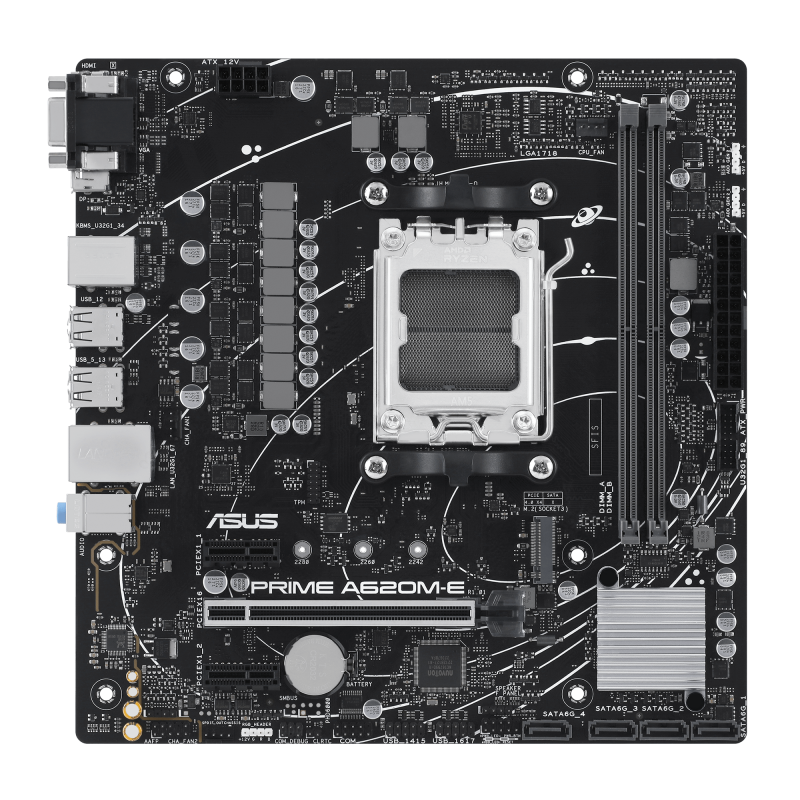

ASUS PRIME A620M-E-CSM Performance-Driven Reliability for Gaming and Business
Optimized for Power and Versatility
The ASUS PRIME A620M-E-CSM is engineered for next-gen performance with AMD Ryzenâ„¢ 7000 Series processors. With PCIe 4.0, DDR5 memory support, and M.2 slots, it ensures lightning-fast responsiveness for demanding applications like gaming, creative workflows, or business operations. Its AMD AM5 socket brings enhanced power delivery and long-term support for future upgrades.
Reliable Networking and Seamless Connectivity
This micro-ATX motherboard is packed with essential connectivity options. From 1Gb LAN for stable internet access to multiple USB 3.2 Gen 1 Type-A ports, the board supports high-speed peripherals and seamless data transfer. Graphics outputs including VGA, HDMI, and Display Port allow support for a wide range of displays without needing a discrete GPU, making it ideal for workstations and content creators alike.
Professional-Grade Stability and Customization
Built under the ASUS Corporate Stable Model (CSM) initiative, it offers long-term support and lifecycle management tools like ASUS Control Center Express for IT teams. With Aura Sync RGB, two-way AI noise cancelation, and hybrid fan headers, the board doesn't just perform—it adapts to your unique environment with smart controls and sleek personalization.
| Specification | Details |
|---|---|
| Motherboard Type | Desktop |
| Form Factor | Micro ATX |
| Socket | AMD AM5 |
| Chipset | AMD A620 |
| CPU Support | Supports AMD Extended Profiles for Overclocking (EXPO) |
| RAM Technology | DDR5 (Dual Channel) |
| RAM Slots | 2 x DIMM |
| RAM Speeds | Up to 7200+ (OC) |
| Maximum Memory | 96GB |
| Graphics | Integrated Graphics* |
| Graphics Ports | 1 x VGA, 1 x HDMI, 1 x Display Port |
| PCI/PCI Express | 1 x PCIe 4.0 x16 (supports x16 mode), 2 x PCIe 3.0 x1 |
| Storage | 4 x SATA III, 1 x M.2 (2242/2260/2280) – PCIe 4.0 x4 |
| RAID | AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10 |
| Networking | GB LAN |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC |
| USB Ports | Rear: 4 x USB 3.2 Gen1 Type-A, 4 x USB 2.0 Front: 2 x USB 3.2 Gen1, 4 x USB 2.0 |

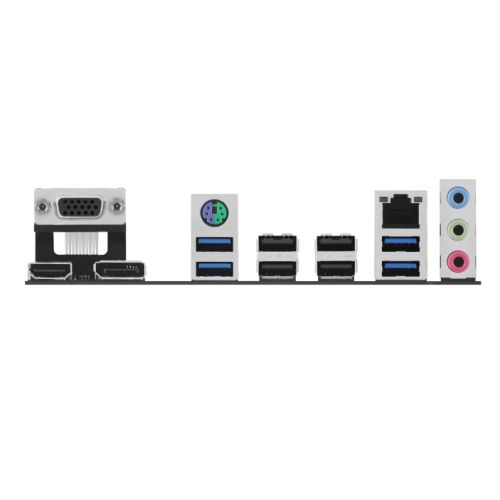

| Back Panel I/O Ports | 4 x USB 3.2 Gen1 Type-A, 4 x USB 2.0, 1 x Display Port, 1 x VGA, 1 x HDMI, 1 x Realtek 1Gb Ethernet, 3 x Audio jacks, 1 x PS/2 Keyboard/Mouse combo |
| Internal I/O Connectors | 1 x 4-pin CPU Fan, 2 x 4-pin Chassis Fan, 1 x 24-pin Main, 1 x 8-pin +12V, 1 x M.2 (Key M), 4 x SATA 6Gb/s, 1 x USB 3.2 Gen1, 2 x USB 2.0, 2 x Addressable Gen2, 1 x Aura RGB, 1 x Clear CMOS, 1 x COM Port, 1 x Front Panel Audio, 1 x S/PDIF Out, 1 x Speaker, 1 x SPI TPM (14-1 pin), 1 x System Panel (10-1 pin) |
| Accessories | 2 x SATA 6Gb/s cables, 1 x I/O Shield, 1 x Screw package for M.2 SSD, 1 x ACC Express Activation Key Card, 1 x User guide |
| Package Type | Retail |
| Package Weight | 1.0600 kg |
| Warranty | 3 Years |
