Asus PRIME B760M-K, Intel B760, 1700, Micro ATX, 2 DDR5, VGA, HDMI, 2.5G LAN, PCIe4, 2x M.2
Original price was: £120.71.£113.78Current price is: £113.78.
Asus PRIME B760M-K, Intel B760, 1700, Micro ATX, 2 DDR5, VGA, HDMI, 2.5G LAN, PCIe4, 2x M.2
MPN:
90MB1FI0-M1EAY0
- Form Factor: Micro ATX
- Socket: LGA 1700
- Chipset: Intel B760
- DDR Type: DDR5
Original price was: £120.71.£113.78Current price is: £113.78.
In stock
In stock
‣ 0% Interest for 4 months
‣ Finance your purchase with PayPal
Payment Methods:
Product Description

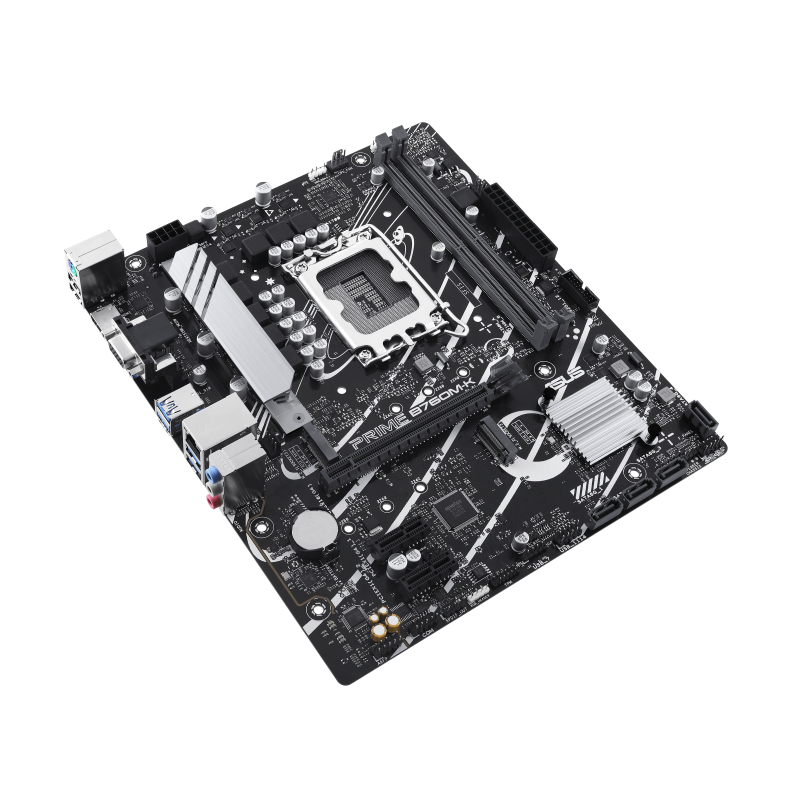

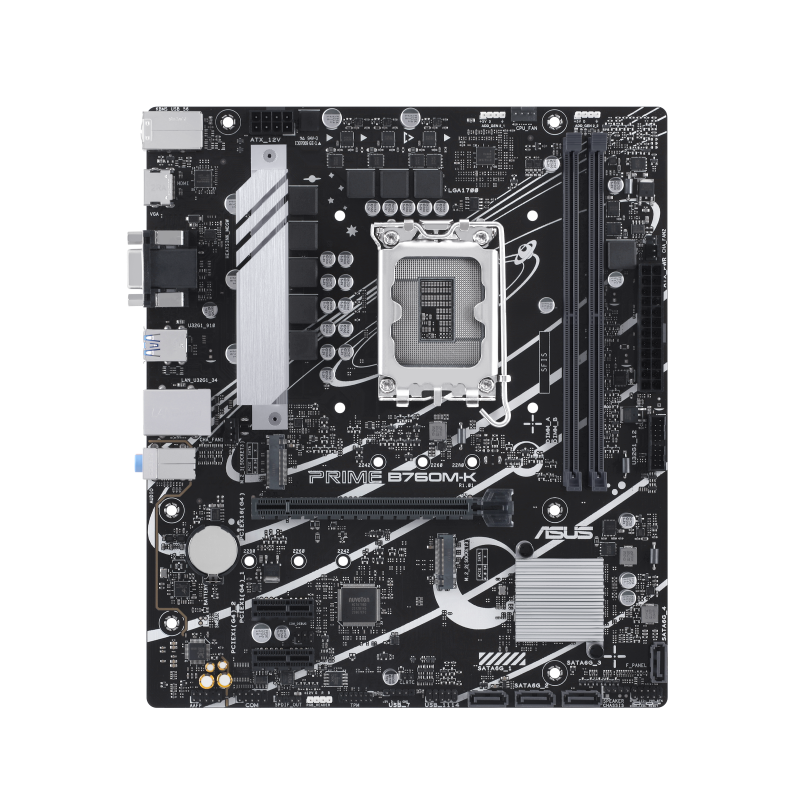

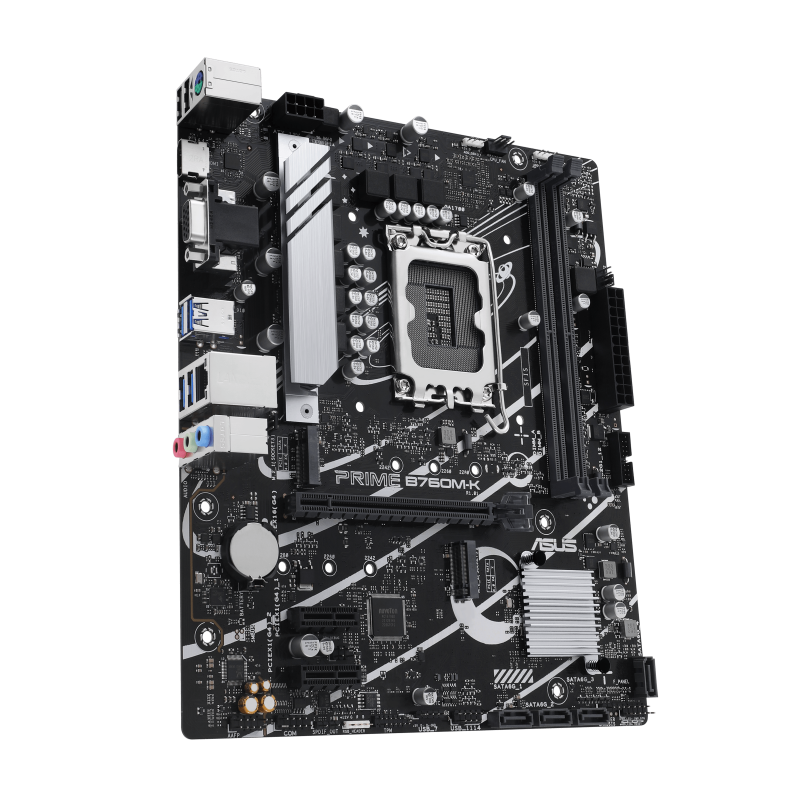

ASUS Prime B760M-K Next-Gen Powerhouse for DDR5 and PCIe 4.0 Builders
Power and Compatibility for Modern Builds
The ASUS Prime B760M-K motherboard is engineered to support Intel® 13th and 12th Gen Core™ processors on the LGA 1700 socket, delivering exceptional performance through DDR5 support, dual PCIe 4.0 M.2 slots, and fast 2.5Gb Ethernet. This micro ATX board blends reliable power delivery with cutting-edge speed and connectivity, including front-panel USB 3.2 Gen 1 and Realtek audio technology, ideal for productivity-focused users and DIY builders alike.
Flexible Tuning and Effective Cooling
Take control of your system with ASUS-exclusive tuning features such as Fan Xpert 2+ and hybrid fan headers. The B760M-K's comprehensive VRM and PCH heatsinks provide optimal thermal performance for stability during extended workloads. Whether you're gaming or creating content, this board offers full-spectrum system tuning and temperature management to keep everything cool and quiet.
Customization and Connectivity Essentials
Style your rig with customizable Aura Sync RGB lighting through onboard Addressable Gen 2 and Aura RGB headers. The ASUS Prime B760M-K doesn’t just perform—it lets you personalize. With full support for integrated graphics (including HDMI and VGA outputs), high-speed USB and audio I/O, and an array of headers and ports, this board ensures your next compact PC build is both powerful and future-ready.
| Description | Specification |
|---|---|
| Motherboard Type | Desktop |
| Form Factor | Micro ATX |
| Socket | Intel 1700 |
| Chipset | Intel B760 |
| DDR Type | DDR5 |
| CPU Support | Click here for CPU support |
| RAM Technology | DDR5 (Dual Channel) Non-ECC, Un-buffered Memory Supports On-Die ECC and Intel XMP |
| RAM Slots | 2 x DIMM |
| RAM Speeds | Up to 8000(OC) |
| Maximum Memory | 96GB |
| Graphics | Integrated Graphics (specs vary by CPU) |
| Graphics Ports | 1 x VGA, 1 x HDMI |
| PCI/PCI Express | 1 x PCIe 4.0 x16, 2 x PCIe 4.0 x1 |
| Storage | 4 x SATA III, 2 x M.2 PCIe 4.0 x4 |
| RAID | Intel Rapid Storage Technology (RAID 0/1/5/10) |
| LAN | 2.5GB LAN |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC |
| USB Ports Supported | Rear: 4 x USB 3.2 Gen1 Type-A, 2 x USB 2.0 | Front: 2 x USB 3.2 Gen1, 3 x USB 2.0 |
| Back Panel I/O Ports | 4 x USB 3.2 Gen1, 2 x USB 2.0, 1 x VGA, 1 x HDMI, 1 x 2.5Gb Ethernet, 3 x Audio jacks, 1 x PS/2 |
| Internal I/O Connectors | CPU/Chassis Fan, 24-pin Main, 8-pin +12V, 2 x M.2, 4 x SATA, USB 3.2/2.0, RGB, TPM, S/PDIF, COM, Audio, Clear CMOS |
| Accessories | 2 x SATA cables, 1 x I/O Shield, 2 x M.2 anchors, 1 x User guide |
| Package Type | Retail |
| Package Weight | 0.5510 kg |
| Warranty | 3 Years |
| M.2 Slot(s) | Yes (M.2) |
| No. LAN Ports | 1 x LAN |
| Max LAN Speed | 2.5GB LAN |
