Asus PRIME H810M-A-CSM, Intel H810, Micro ATX, DDR5, HDMI, DP, GB LAN, 2x M.2
Original price was: £108.31.£102.10Current price is: £102.10.
Asus PRIME H810M-A-CSM, Intel H810, Micro ATX, DDR5, HDMI, DP, GB LAN, 2x M.2
MPN:
90MB1KK0-M0EAYC
- Form Factor: Micro ATX
- Socket: Intel LGA1700
- Chipset: Intel H810
- DDR Type: DDR5
Original price was: £108.31.£102.10Current price is: £102.10.
In stock
In stock
‣ 0% Interest for 4 months
‣ Finance your purchase with PayPal
Payment Methods:
Product Description

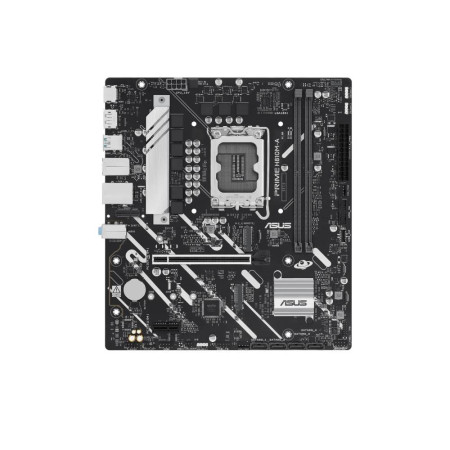

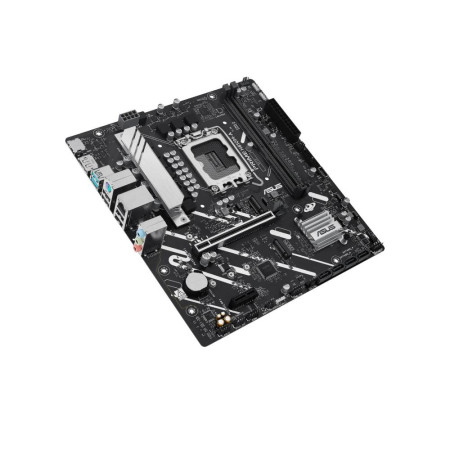

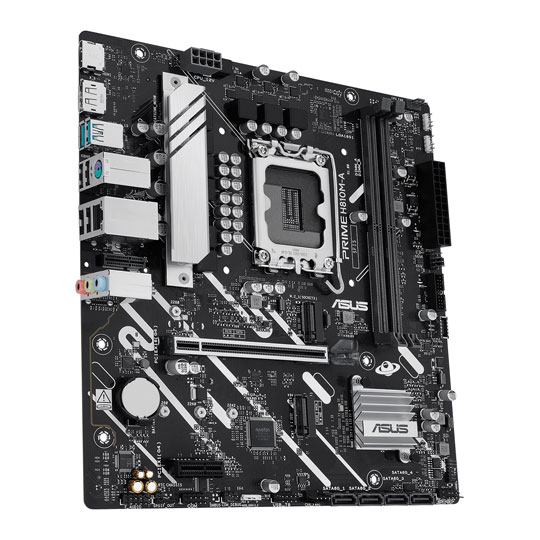

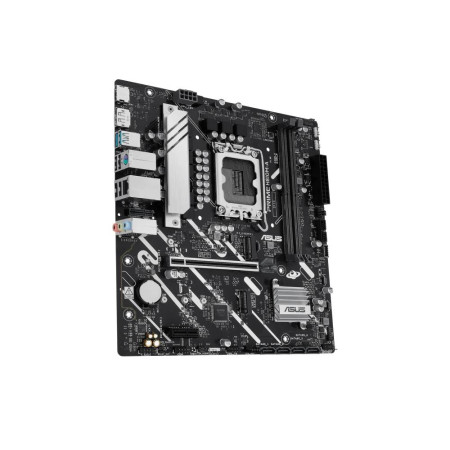

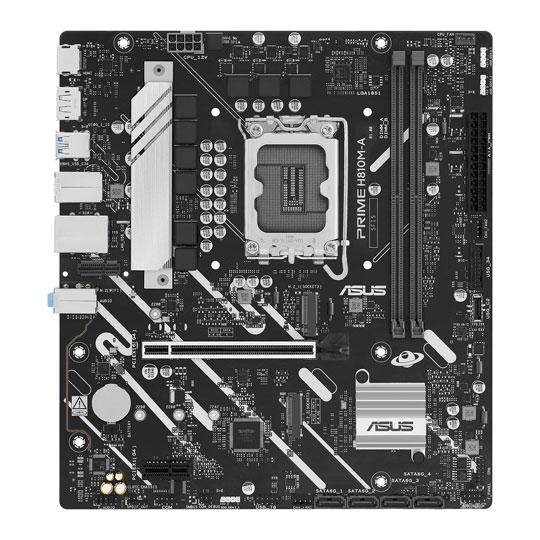

ASUS PRIME H810M-A-CSM High-Performance Micro-ATX Motherboard for Modern Intel Builds
Exceptional Performance for Intel Core Ultra Processors
The ASUS PRIME H810M-A-CSM is designed to bring out the best in the latest Intel® Core™ Ultra Processors (Series 2). With support for DDR5 memory, advanced power delivery, and PCIe 4.0 compatibility, it delivers outstanding performance for users who demand stability, speed, and efficiency. Whether you're building a responsive workstation or a compact powerhouse, this motherboard ensures seamless multitasking, faster data transfer, and robust CPU support.
Future-Ready Connectivity & Business Stability
Equipped with dual M.2 slots (PCIe 4.0), high-speed USB 10Gbps ports, Intel® 1Gb Ethernet, and PCIe 4.0 expansion, the ASUS PRIME H810M-A-CSM is made for high-speed environments. Additionally, its inclusion in the ASUS Corporate Stable Model (CSM) program means up to 36 months of lifecycle support and access to ASUS Control Center Express for advanced IT management—ideal for enterprise and business users seeking reliability and security.
Advanced Cooling, RGB Customization & DIY Features
Featuring Fan Xpert 2+, integrated heatsinks, and Q-LED Core diagnostics, this board offers extensive cooling controls and user-friendly installation. With Aura Sync RGB headers, users can customize their rigs with synchronized lighting effects. Reinforced PCIe SafeSlot Core+ ensures long-term GPU stability, making this board a DIY builder's dream with solid construction and customizable setup options.
| Description | Specification |
|---|---|
| Motherboard Type | Desktop |
| Form Factor | Micro ATX |
| Socket | Intel 1851 |
| Chipset | Intel H810 |
| DDR Type | DDR5 |
| CPU Support | Click here for CPU support |
| RAM Technology | DDR5 (Dual Channel), Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM), Supports Intel XMP, ASUS Enhanced Memory Profile III, On-Die ECC |
| RAM Slots | 2 x DIMM |
| RAM Speeds | Up to 6400MT/s (OC) |
| Maximum Memory | 128GB |
| Graphics | Integrated Graphics (varies by CPU type) |
| Graphics Ports | 1 x HDMI, 1 x Display Port |
| PCI/PCI Express | 1 x PCIe 4.0 x16, 1 x PCIe 4.0 x1 |
| Storage | 4 x SATA III, 2 x M.2 (PCIe 4.0 x4 and PCIe 4.0 x2) |
| Wireless | Not available |
| LAN | GB LAN |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC |
| USB Ports Supported | Rear: 2 x USB 10Gbps Type-A, 4 x USB 2.0; Front: 1 x USB 5Gbps Type-C, 2 x USB 5Gbps, 2 x USB 2.0 |

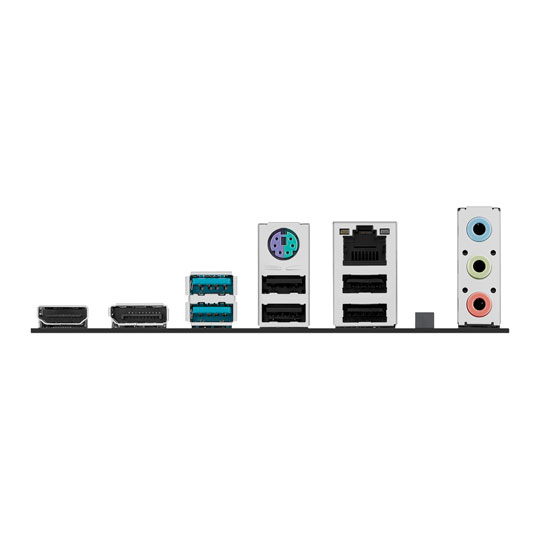

| Back Panel I/O Ports | 2 x USB 10Gbps Type-A, 4 x USB 2.0, 1 x Display Port, 1 x HDMI, 1 x Vertical M.2 (Key E), 1 x Intel 1Gb Ethernet, 3 x Audio jacks, 1 x PS/2 keyboard/mouse combo |
| Internal I/O Connectors | 1 x 4-pin CPU Fan, 2 x 4-pin Chassis Fan, 1 x 24-pin Main, 1 x 8-pin +12V CPU, 2 x M.2 (Key M), 4 x SATA 6Gb/s, 1 x USB 5Gbps Type-C, 1 x USB 5Gbps, 1 x USB 2.0, 3 x Addressable Gen2, 1 x Clear CMOS, 1 x COM Port, 1 x Front Panel Audio, 1 x S/PDIF Out, 1 x SPI TPM (14-1 pin), 1 x 10-1 pin Front Panel System |
| Accessories | 2 x SATA 6Gb/s cables, 1 x I/O shield, 1 x Screw package for M.2 SSD, 1 x ACC Express activation key card, 1 x Quick start guide |
| Package Type | Retail |
| Package Weight | 0.7800 kg |
| Warranty | 3 Years |
