Asus PRIME Z890M-PLUS WIFI Intel Z890 1851 Micro ATX 4 DDR5 HDMI Wi-Fi 7 3x M.2
Original price was: £242.36.£228.46Current price is: £228.46.
Asus PRIME Z890M-PLUS WIFI Intel Z890 1851 Micro ATX 4 DDR5 HDMI Wi-Fi 7 3x M.2
MPN:
90MB1J80-M0EAY0
- Form Factor: Micro ATX
- Socket: Intel LGA 1851
- Chipset: Intel Z890
- DDR Type: DDR5
Original price was: £242.36.£228.46Current price is: £228.46.
In stock
In stock
‣ 0% Interest for 4 months
‣ Finance your purchase with PayPal
Payment Methods:
Product Description

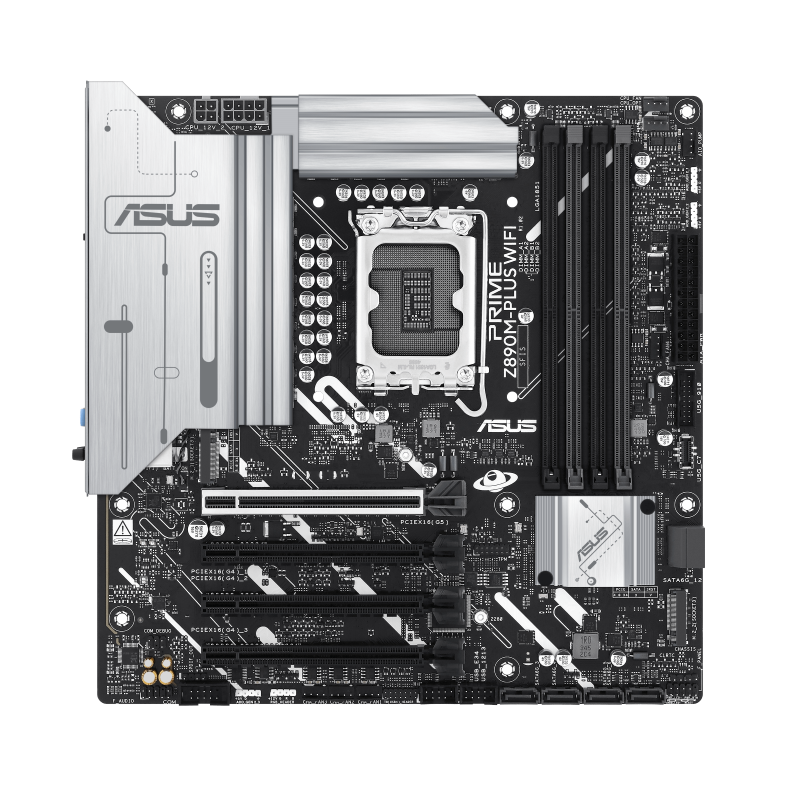

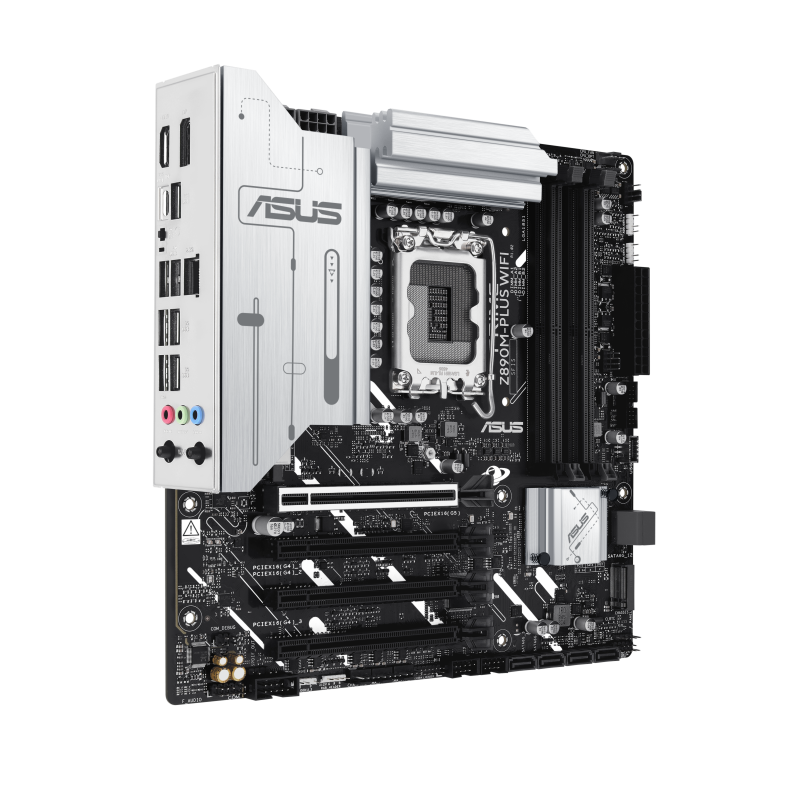

ASUS PRIME Z890M-PLUS WIFI Future-Ready Performance in a Compact Form
Advanced Power for AI and Ultra Performance
The ASUS PRIME Z890M-PLUS WIFI motherboard is purpose-built to harness the full capabilities of Intel Core Ultra Processors (Series 2), with a robust 10+1+2+1 power design and support for DDR5 memory over 7600MT/s. Engineered for Advanced AI PC builds, it features NPU Boost for AI acceleration, AEMP III for optimized memory tuning, and DIMM Fit to enhance stability and compatibility. Designed for high-efficiency computing, it's the perfect motherboard to power next-gen desktops and AI workflows.
Blazing Speeds and Future-Ready Connectivity
From high-speed PCIe 5.0 graphics slots to triple M.2 slots including one PCIe 5.0 x4, the PRIME Z890M-PLUS WIFI is built for high-performance storage and GPU bandwidth. Wi-Fi 7 with Q-Antenna ensures ultra-fast wireless connectivity, while 2.5G LAN and a rear USB Type-C port with DisplayPort Alt Mode offer broad I/O flexibility. With up to 20Gbps USB bandwidth, support for DisplayPort output, and extensive SATA options, this board is ideal for creators, gamers, and power users alike.
Easy DIY, Personalization, and Cooling
The motherboard features a pre-mounted I/O shield, ASUS Fan Xpert 4, BIOS FlashBack, and SafeSlot PCIe for secure GPU installation. Customization is made easy with three Addressable Gen2 headers and Aura Sync RGB lighting support. Its array of onboard cooling headers and hybrid fan controls keep performance optimized and quiet under load. DIY-friendly and loaded with intuitive tools, the PRIME Z890M-PLUS WIFI empowers both first-time builders and experienced modders to create the perfect system.
| Specifications | |
|---|---|
| Motherboard Type: | Desktop |
| Form Factor: | Micro ATX |
| Socket: | Intel 1851 |
| Chipset: | Intel Z890 |
| CPU Support: | Intel Core Ultra Processors (Series 2) |
| RAM Technology: | DDR5, Dual Channel, Non-ECC, CUDIMM, XMP, AEMP III, DIMM Fit |
| RAM Slots: | 4 x DIMM |
| RAM Speeds: | Up to 7600+ MT/s (OC) |
| Maximum Memory: | 256GB |
| Graphics Ports: | 1 x HDMI, 1 x DisplayPort, 1 x USB Type-C with DisplayPort Alt Mode |
| Expansion Slots: | 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16, 2 x PCIe 4.0 x1 |
| Storage: | 3 x M.2, 6 x SATA III |
| RAID Support: | PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10 |
| Wireless: | Wi-Fi 7, Bluetooth v5.4 |
| LAN: | 2.5G Ethernet |
| Audio: | Realtek 7.1 Surround HD Audio CODEC |
| USB Ports: | Rear: 1 x USB 20Gbps Type-C with DP Alt, 1 x USB 10Gbps, 4 x USB 5Gbps, 2 x USB 2.0 Front: 1 x USB 5Gbps Type-C, 2 x USB 5Gbps, 4 x USB 2.0 |
| Back I/O Ports: | 1 x HDMI, 1 x DisplayPort, 1 x USB 20Gbps Type-C, 1 x USB 10Gbps, 4 x USB 5Gbps, 2 x USB 2.0, 1 x 2.5Gb LAN, 1 x Wi-Fi Module, 3 x Audio Jacks, 1 x BIOS FlashBack Button |
| Internal I/O: | 1 x 24-pin ATX, 1 x 8-pin +12V, 1 x 4-pin +12V, 1 x CPU Fan, 1 x CPU OPT Fan, 1 x AIO Pump, 4 x Chassis Fan, 3 x M.2 (Key M), 6 x SATA, USB 5Gbps Type-C, USB 5Gbps, 2 x USB 2.0, 3 x Gen2 ARGB, 1 x Aura RGB, TPM, S/PDIF Out, Thunderbolt Header |

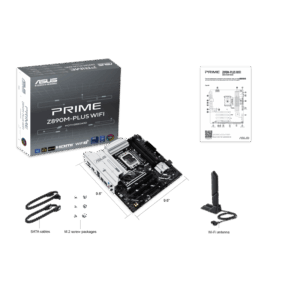

| Accessories: | 2 x SATA Cables, 1 x Wi-Fi Q-Antenna, 3 x M.2 Screws, 1 x Quick Start Guide |
| Package Type: | Retail |
| Package Weight: | 1.0500 kg |
| Warranty: | 3 Years |
