Asus PRO H810T-CSM – Corporate Stable Model, Intel H810, 1851, Thin Mini ITX, 2 DDR5 SO-DIMM, HDMI, DP, LVDS, GB LAN, 19v DC in, 1x M.2
Original price was: £108.58.£102.34Current price is: £102.34.
Asus PRO H810T-CSM – Corporate Stable Model, Intel H810, 1851, Thin Mini ITX, 2 DDR5 SO-DIMM, HDMI, DP, LVDS, GB LAN, 19v DC in, 1x M.2
MPN:
90MB1LGM-M0EAYC
- Form Factor: Mini ITX
- Socket: Intel H810
- Chipset: LGA 1851
- DDR Type: DDR5
Original price was: £108.58.£102.34Current price is: £102.34.
In stock
In stock
‣ 0% Interest for 4 months
‣ Finance your purchase with PayPal
Payment Methods:
Product Description

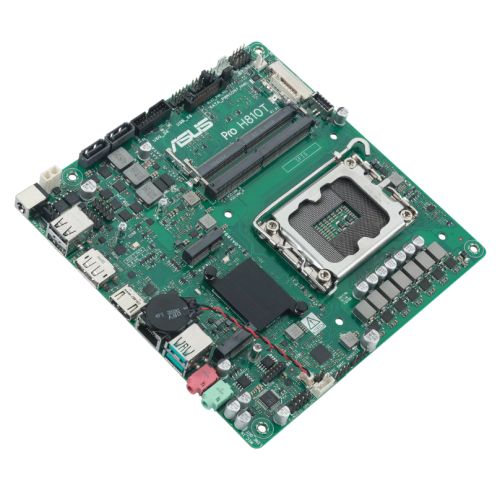

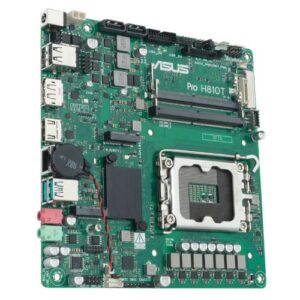

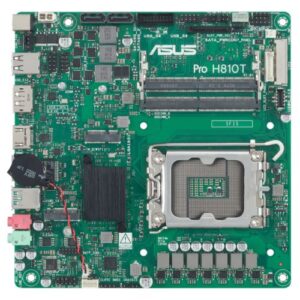

Asus PRO H810T-CSM Motherboard – Compact, Stable, and Corporate-Ready
Built for Corporate Stability
The Asus PRO H810T-CSM is a corporate stable model designed for reliability, long-term availability, and consistent performance. With its Intel H810 chipset and support for Intel 1851 socket processors, it provides the stability enterprises need for business-critical deployments.
Compact Thin Mini ITX Design
Featuring a Thin Mini ITX form factor, this motherboard is perfect for space-saving builds while maintaining robust functionality. Supporting DDR5 SO-DIMM modules with dual-channel architecture and speeds up to 6400MT/s (OC), it delivers powerful performance in a slim and efficient package.
Versatile Connectivity & Longevity
Equipped with HDMI, DisplayPort, LVDS, USB 20Gbps Type-C, and GB LAN, the Asus PRO H810T-CSM ensures modern connectivity for displays and peripherals. With advanced security, Realtek 7.1 audio, and a 3-year warranty, it is built to last and meet the demanding needs of businesses.
Technical Specifications
| Motherboard Type | Desktop |
| Form Factor | Thin Mini ITX |
| Socket | Intel 1851 |
| Chipset | Intel H810 |
| DDR Type | DDR5 |
| CPU Support | Click here for CPU support |
| RAM Technology | DDR5 SO-DIMM (Dual Channel), Non-ECC, Un-buffered DIMM, On-Die ECC support |
| RAM Slots | 2 x DIMM |
| RAM Speeds | Up to 6400MT/s (OC) |
| Maximum Memory | 128GB |
| Graphics | Integrated Graphics (specifications vary by CPU) |
| Graphics Ports | 1 x HDMI, 1 x DisplayPort, 1 x LVDS connector |
| PCI/PCI Express | – |
| Storage | 2 x SATA III, 1 x M.2 (2280) PCIe 5.0 x4 |
| LAN | GB LAN |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC |
| USB Ports Supported | Rear: 2 x USB 10Gbps Type-A, 2 x USB 2.0 Front: 1 x USB 20Gbps Type-C, 2 x USB 5Gbps, 4 x USB 2.0 |
| Back Panel I/O Ports | 2 x USB 10Gbps Type-A, 2 x USB 2.0, 1 x DisplayPort, 1 x HDMI, 1 x Realtek 1Gb Ethernet, 2 x Audio jacks, 1 x DC power connector (19V) |
| Internal I/O Connectors | 1 x 4-pin CPU Fan, 1 x 4-pin Chassis Fan, 1 x 2-pin +19V, 1 x SATA power, 1 x M.2 (Key M), 2 x SATA 6Gb/s, 1 x USB 20Gbps Type-C, 1 x USB 5Gbps, 2 x USB 2.0, 1 x Stereo Speaker, 1 x DMIC, 1 x Backlight Inverter Voltage Selection, 1 x FPD Brightness, 1 x Panel Voltage Selection, 1 x Panel Off, 1 x Clear CMOS, 1 x Chassis Intrusion, 1 x COM Port, 1 x Front Panel Audio, 1 x COM Debug, 1 x LVDS, 1 x M.2 (Key E), 1 x Speaker, 1 x SPI TPM, 1 x Front Panel System |
| Accessories | 2 x SATA 6Gb/s cables, 1 x SATA power cable, 2 x I/O shields, 1 x ACC Express activation key card, 1 x Quick start guide |
| Package Type | Retail |
| Package Weight | 0.7400 kg |
| Warranty | 3 Years |
