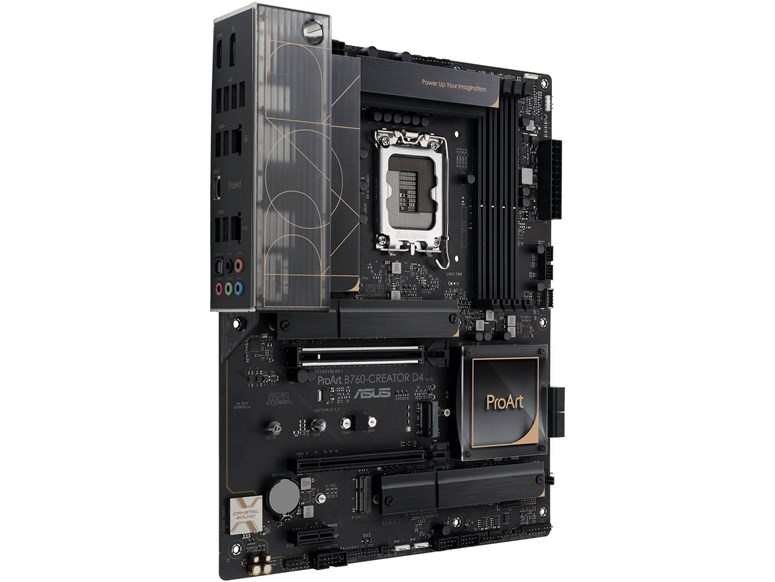

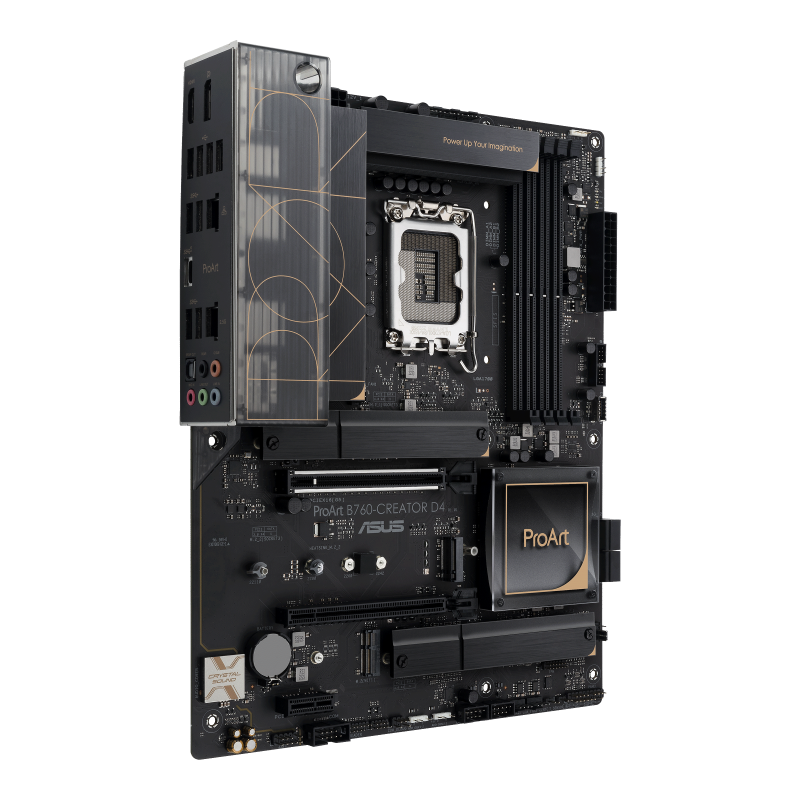

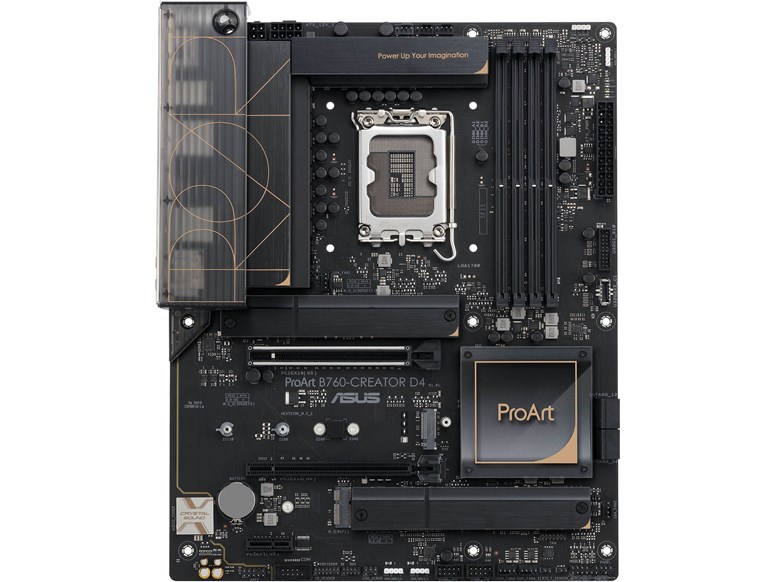

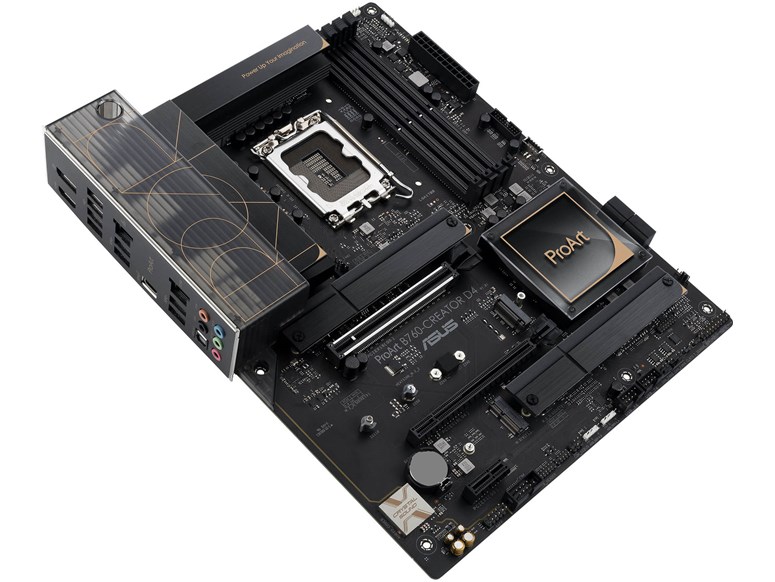

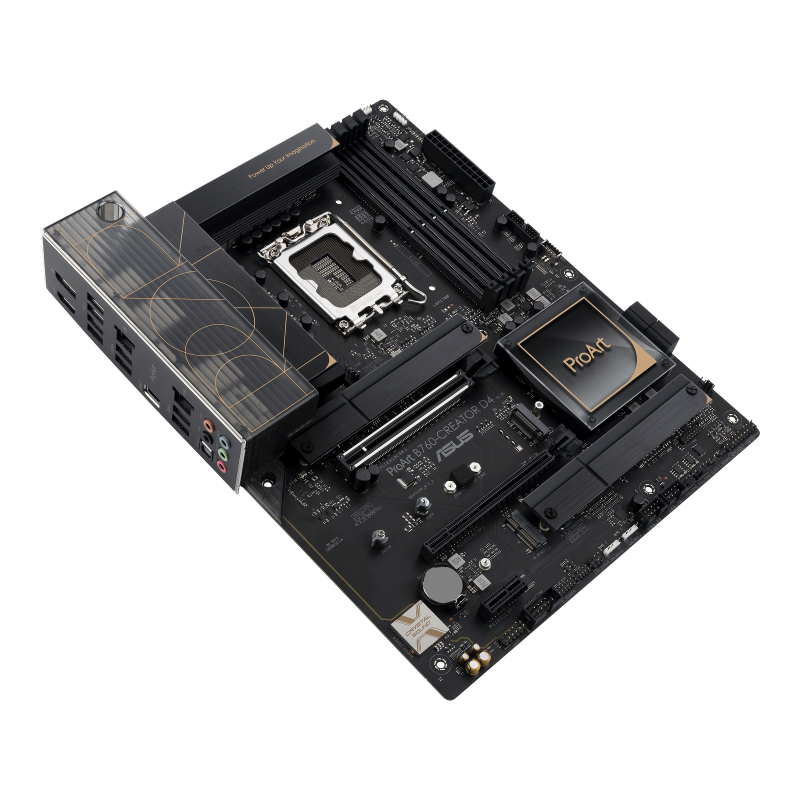

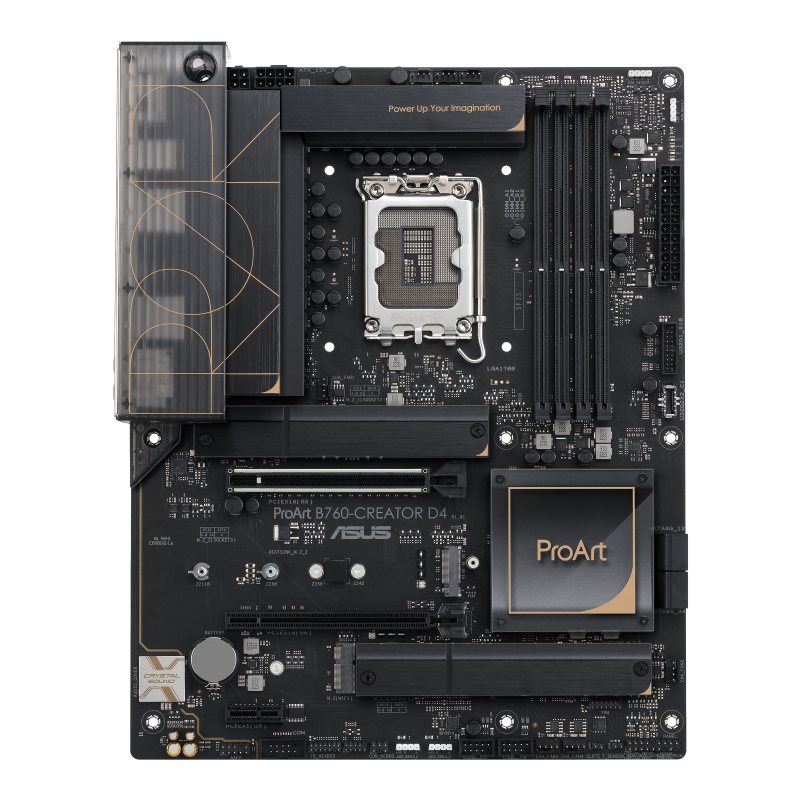

Asus PROART B760-CREATOR D4, ATX, Intel B760, DDR4, Wi-Fi 6E, PCIe 5.0, 3x M.2, Creator Hub
Original price was: £189.74.£178.86Current price is: £178.86.
Asus PROART B760-CREATOR D4, ATX, Intel B760, DDR4, Wi-Fi 6E, PCIe 5.0, 3x M.2, Creator Hub
MPN:
90MB1DU0-M0EAY0
- Form Factor: ATX
- Socket: Intel LGA 1700
- Chipset: Intel B760
- DDR Type: DDR4
Original price was: £189.74.£178.86Current price is: £178.86.
In stock
In stock
‣ 0% Interest for 4 months
‣ Finance your purchase with PayPal
Payment Methods:
Product Description
ASUS ProArt B760-Creator D4 Ultimate Performance for Creative Professionals
Unleash Pro-Level Performance for Creative Workflows
The ASUS ProArt B760-Creator D4 is engineered for content creators, providing the ideal balance of high-speed performance, connectivity, and reliability. Built on the Intel B760 chipset and supporting the latest 13th Gen Intel CPUs, it features PCIe 5.0 for lightning-fast GPU data rates and a powerful 12+1 teamed power stage design. This ensures the most demanding workloads like 8K video editing, 3D animation, or virtual production are handled with absolute stability and responsiveness. A full suite of connectivity options—including Thunderbolt 4 support and USB 3.2 Gen 2x2—makes it future-ready for high-throughput devices and external workstations.
Smart Cooling and Creator-Centric Software
ASUS Fan Xpert 4 and support for both air and liquid cooling solutions keep temperatures under control even in marathon render sessions. The ProArt Creator Hub offers intuitive system monitoring, fan profile switching, and task group settings to streamline your workflow. Security-conscious users will appreciate software blacklisting, registry control, and USB port locking. With DDR4 memory support up to 128 GB and OptiMem II optimization, you also gain stability for high-capacity, high-speed memory configurations—ideal for large project multitasking.
Connectivity & Expansion to Match Creative Demands
Connectivity is a core strength of the ProArt B760-Creator D4. It boasts dual Ethernet ports (2.5 Gb + 1 Gb), three lightning-fast M.2 slots, and multiple USB ports including a front-panel USB-C Gen2x2. Its DisplayPort and HDMI outputs ensure multi-monitor setups are simple to deploy. You also get expansion flexibility with PCIe 5.0/4.0/3.0 lanes, while the included M.2 Key E slot adds support for WiFi/Bluetooth modules if needed. Whether you work with high-resolution assets, heavy render pipelines, or need rapid peripheral access, this motherboard delivers uncompromised capability.
| Description | Specification |
|---|---|
| Motherboard Type | Server / Workstation |
| Form Factor | ATX |
| Socket | Intel 1700 |
| Chipset | Intel B760 |
| DDR Type | DDR4 |
| CPU Support | Click here for CPU support |
| RAM Technology | DDR4 (Dual Channel), Non-ECC, Un-buffered Memory, Supports Intel Extreme Memory Profile (XMP), OptiMem II |
| RAM Slots | 4 x DIMM |
| RAM Speeds | Supported speed varies depending on the CPU and memory configuration |
| Maximum Memory | 128GB |
| Graphics | Integrated Graphics* (varies by CPU type) |
| Graphics Ports | 1 x HDMI, 1 x Display Port |
| PCI/PCI Express | 1 x PCIe 5.0/4.0/3.0 x16, 1 x PCIe 4.0 x16 (x4 mode), 1 x PCIe 3.0 x1 |
| Storage | 4 x SATA III, 1 x M.2 PCIe 4.0 x4, 1 x M.2 PCIe 3.0 x4, 1 x M.2 PCIe 4.0 x4 |
| RAID | Intel Rapid Storage Technology supports SATA RAID 0/1/5/10 |
| Wireless | – |
| LAN | 2.5GB LAN & GB LAN |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC |
| USB Ports Supported | Rear: 1 x USB 3.2 Gen2 Type-C, 4 x USB 3.2 Gen1 Type-A, 4 x USB 2.0 | Front: 1 x USB 3.2 Gen2x2 Type-C, 2 x USB 3.2 Gen1, 4 x USB 2.0 |
| Back Panel I/O Ports | 1 x USB 3.2 Gen2 Type-C, 4 x USB 3.2 Gen1 Type-A, 4 x USB 2.0, 1 x Display Port, 1 x HDMI, 1 x Realtek 2.5Gb Ethernet, 1 x Intel 1Gb Ethernet, 5 x Audio jacks, 1 x Optical S/PDIF out |
| Internal I/O Connectors | 1 x 4-pin CPU Fan, 1 x 4-pin CPU OPT Fan, 1 x 4-pin AIO Pump, 4 x 4-pin Chassis Fan, 1 x 24-pin Main, 1 x 8-pin +12V, 1 x 4-pin +12V, 3 x M.2 (Key M), 4 x SATA 6Gb/s, 1 x USB 3.2 Gen2x2 Type-C, 1 x USB 3.2 Gen1, 2 x USB 2.0, 3 x Addressable Gen2, 1 x AURA RGB, 1 x Clear CMOS, 1 x COM Port, 1 x Front Panel Audio, 1 x M.2 slot (Key E), 1 x SPI TPM (14-1pin), 1 x 20-5 pin System Panel, 1 x Thermal Sensor, 1 x Thunderbolt |
| Accessories | 2 x SATA 6Gb/s cables, 2 x M.2 Rubber packages, 1 x Screw package for M.2 Key E, 1 x ProArt ruler, 1 x Q-connector, 1 x ACC Express Activation Key Card, 1 x User guide |
| Package Type | Retail |
| Package Weight | 2.03kg |
| Warranty | 3 Years |
