Asus ROG STRIX B760-G GAMING WIFI, Micro ATX, Intel B760, DDR5, Wi-Fi 6E, PCIe5, 2x M.2, RGB
Original price was: £228.97.£215.83Current price is: £215.83.
Asus ROG STRIX B760-G GAMING WIFI, Micro ATX, Intel B760, DDR5, Wi-Fi 6E, PCIe5, 2x M.2, RGB
MPN:
90MB1EQ0-M1EAY0
- Form Factor: Micro ATX
- Socket: Intel 1700
- Chipset: Intel B760
- DDR Type: DDR5
Original price was: £228.97.£215.83Current price is: £215.83.
In stock
In stock
‣ 0% Interest for 4 months
‣ Finance your purchase with PayPal
Payment Methods:
Product Description

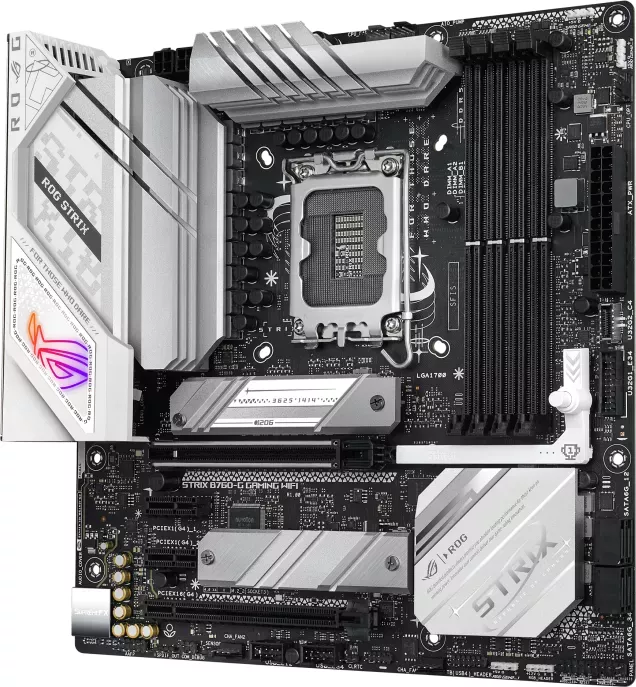

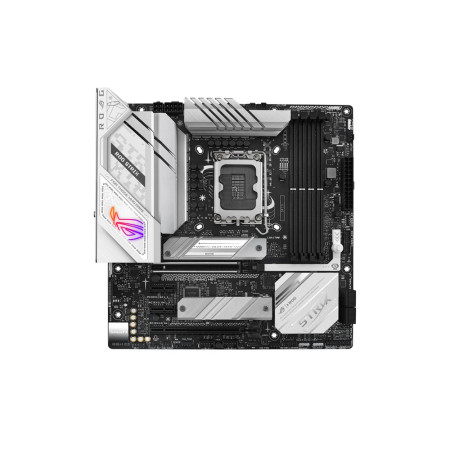

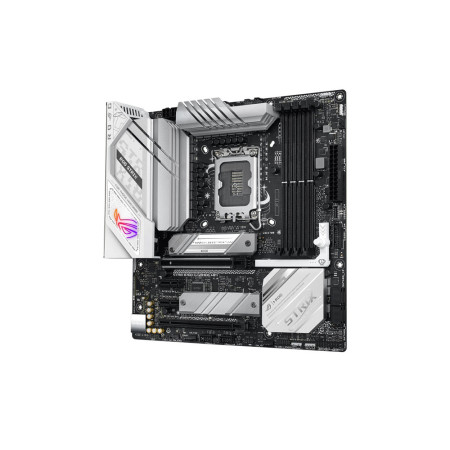

ROG Strix B760-G Gaming Wi-Fi Next-Level Power in mATX Format
Uncompromising Performance in a Compact Form
The ROG Strix B760-G Gaming Wi-Fi is a compact Micro-ATX motherboard designed to deliver exceptional gaming and productivity performance. With support for the latest Intel® 13th Gen processors and DDR5 memory speeds up to 7800+ MT/s (OC), it ensures blazing-fast performance for enthusiasts and power users. The inclusion of a PCIe 5.0 x16 slot means your system is future-proof for the latest GPUs, delivering immense bandwidth for immersive, high-frame-rate gaming. Backed by a robust 12+1 power stage design and comprehensive VRM cooling, the board remains stable even during intense workloads and overclocking sessions.
Advanced Connectivity and Immersive Features
Connectivity is a major strength of this board, with ultra-fast Wi-Fi 6E, support for 2.5Gb LAN, and a wide range of USB ports including USB 3.2 Gen 2x2 Type-C for 20 Gbps transfer speeds. The ROG SupremeFX audio solution delivers pristine sound for competitive gaming or cinematic experiences. You'll also find dual M.2 slots with dedicated heatsinks for high-speed storage, and RAID support for added redundancy or speed. Whether you're streaming, multitasking, or gaming, this board is built to keep you connected and in control.
Style, Customization, and DIY-Friendly Design
The B760-G combines aesthetics with practical design. Its sleek monochrome PCB with white accents makes it compatible with a wide range of builds, and Aura Sync RGB enables coordinated lighting across compatible devices for a unified look. DIY-friendly features such as Q-Latch M.2 installation, thermal pads, and pre-installed I/O shield make setup smooth for both newcomers and seasoned builders. ASUS also includes handy software like Armoury Crate for lighting and performance management, making this motherboard a complete and stylish choice for high-performance compact gaming builds.
| Specification | Details |
|---|---|
| Motherboard Type | Desktop |
| Form Factor | Micro ATX |
| Socket | Intel 1700 |
| Chipset | Intel B760 |
| CPU Support | Click here for CPU support |
| RAM Technology | DDR5 (Dual Channel) |
| RAM Slots | 4 x DIMM |
| RAM Speeds | Up to 7800+ (OC) |
| Maximum Memory | 192GB |
| Graphics | Integrated Graphics (Specifications may vary between CPU types) |
| Graphics Ports | 1 x HDMI 1 x Display Port |
| PCI/PCI Express | 1 x PCIe 5.0 x16 1 x PCIe 4.0 x16 (supports x4 mode) 2 x PCIe 4.0 x1 |
| Storage | 4 x SATA III 2 x M.2 (2242/2260/2280) – PCIe |
| RAID | Intel Rapid Storage Technology supports SATA RAID 0/1/5/10 |
| Wireless | Wi-Fi 6E 2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band Bluetooth v5.3 |
| LAN | 2.5GB LAN |
| Audio | ROG SupremeFX 7.1-Channel High Definition Audio CODEC S1220A |
| USB Ports Supported | 1 x USB 3.2 Gen2x2 Type-C (at back) 1 x USB 3.2 Gen2 Type-A (at back) 1 x USB 3.2 Gen1 Type-C (at back) 4 x USB 3.2 Gen1 Type-A (2 at back, 2 at mid-board) 8 x USB 2.0 (4 at back, 4 at mid-board) 1 x Front Panel Type-C USB 3.2 Gen2 Header |

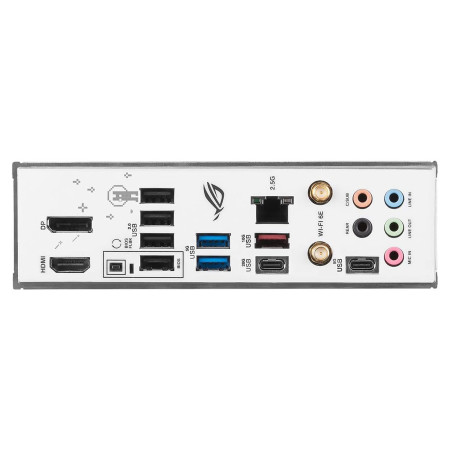

| Back Panel I/O Ports | 1 x USB 3.2 Gen2x2 Type-C 1 x USB 3.2 Gen2 Type-A 3 x USB 3.2 Gen1 (2 Type-A, 1 Type-C) 4 x USB 2.0 1 x HDMI 1 x Display Port 1 x Wi-Fi Module 1 x Intel 2.5Gb Ethernet 5 x Audio jacks 1 x BIOS FlashBack button |

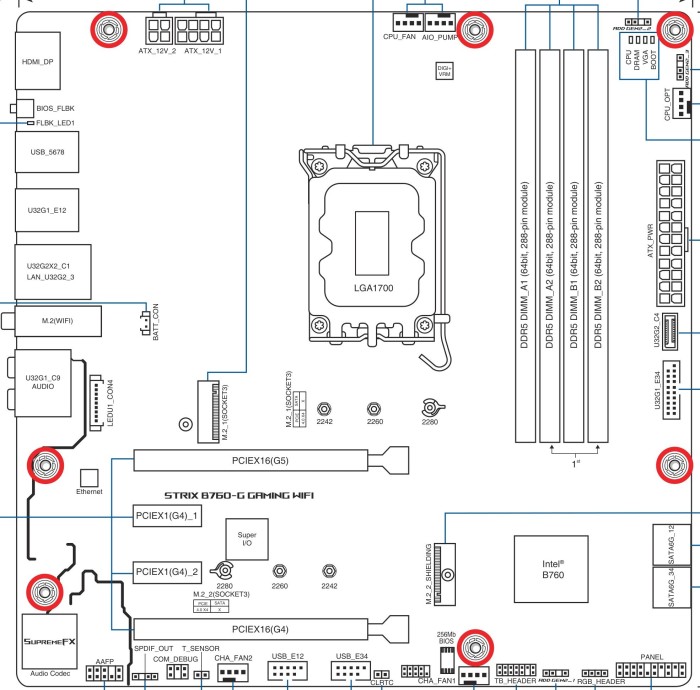

| Internal I/O Connectors | 1 x 4-pin CPU Fan 1 x 4-pin CPU OPT Fan 1 x 4-pin AIO Pump 2 x 4-pin Chassis Fan 1 x 24-pin Main 1 x 8-pin +12V 1 x 4-pin +12V 2 x M.2 (Key M) 4 x SATA 6Gb/s 1 x USB 3.2 Gen2 Type-C 1 x USB 3.2 Gen1 2 x USB 2.0 3 x Addressable Gen2 1 x AURA RGB 1 x Clear CMOS 1 x Front Panel Audio 1 x S/PDIF Out 1 x 20-3 pin System Panel 1 x Thermal Sensor 1 x Thunderbolt (USB4) |
| Accessories | 2 x SATA 6Gb/s cables 1 x Thermal pad for M.2 1 x ASUS Wi-Fi moving antennas 1 x Cable ties pack 1 x Rubber Package for M.2 1 x Q-Latch package for M.2 1 x ROG key chain 1 x ROG Strix stickers 1 x ROG Strix thank you card 1 x User manual |
| Package Type | Retail |
| Package Weight | 1.7800 kg |
| Warranty | 3 Years |
