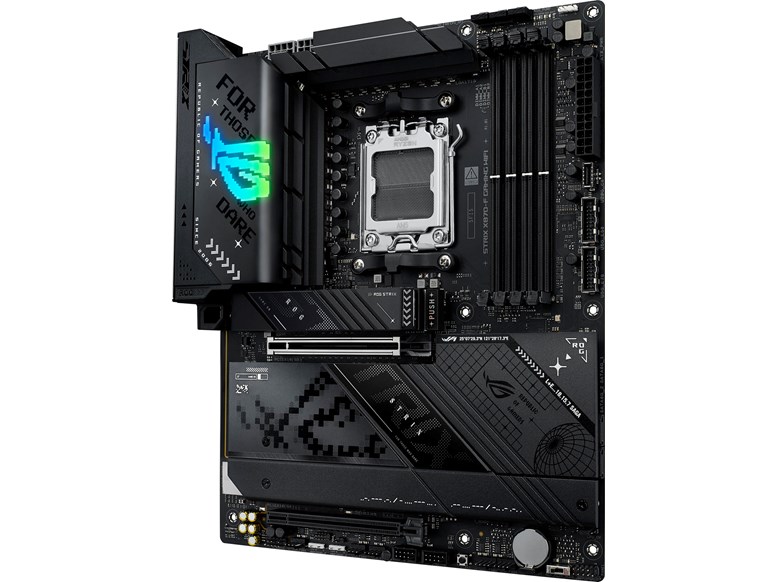

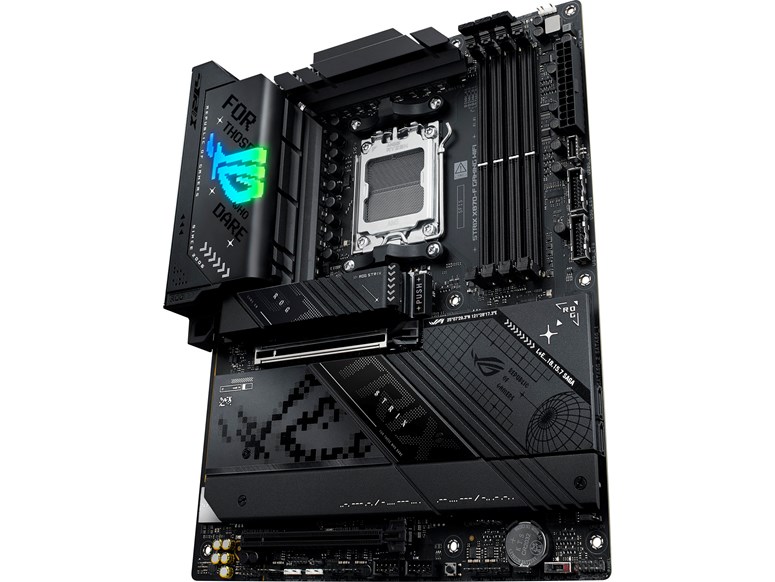

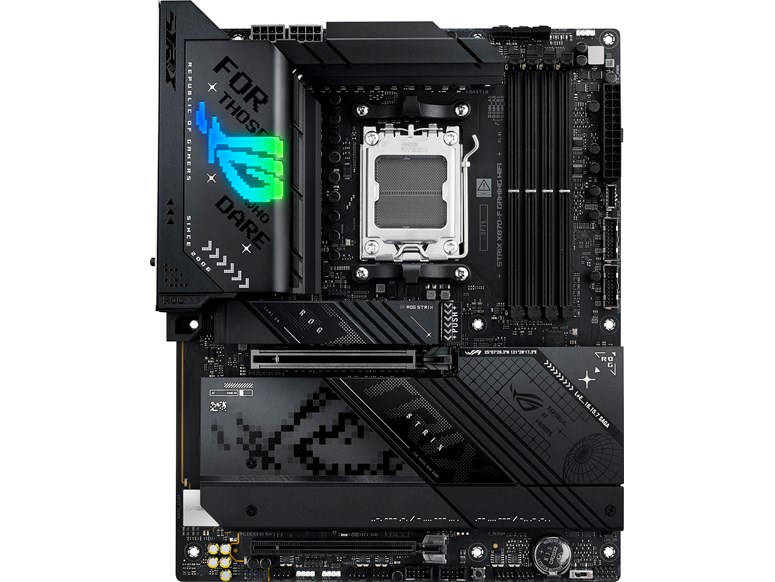

Asus ROG STRIX X870-F GAMING WIFI, ATX, AMD X870, DDR5, Wi-Fi 7, USB4, 4x M.2, PD 30W
Original price was: £439.20.£414.00Current price is: £414.00.
Asus ROG STRIX X870-F GAMING WIFI, ATX, AMD X870, DDR5, Wi-Fi 7, USB4, 4x M.2, PD 30W
MPN:
90MB1IV0-M0EAY0
- Form Factor: ATX
- Socket: AMD AM5
- Chipset: AMD X870
- DDR Type: DDR5
Original price was: £439.20.£414.00Current price is: £414.00.
In stock
In stock
‣ 0% Interest for 4 months
‣ Finance your purchase with PayPal
Payment Methods:
Product Description
ROG Strix X870-F Gaming WiFi Elite-Class Performance Meets Next-Gen Connectivity
Unmatched Power for Demanding Workloads
The ROG Strix X870-F Gaming WiFi motherboard is engineered to deliver raw power and precision control for AMD Ryzen 9000 Series CPUs and beyond. With its 16+2+2 power stage design and Core Flex technology, this board effortlessly handles high-core-count CPUs under extreme loads. Features like Dynamic OC Switcher and PBO Enhancement let users balance between automated and manual overclocking for the best of both worlds, pushing performance limits while maintaining system stability and thermal control.
Cutting-Edge Memory, Storage & Cooling
Support for DDR5 with AMD EXPO and AEMP ensures your system is ready for ultra-fast memory speeds up to 8000+MT/s. The integrated M.2 heatsinks and VRM cooling, including a backplate and connected heatpipe, enable exceptional thermal performance even during peak gaming or intensive workloads. Extensive fan headers, AIO pump connectors, and smart temperature monitoring options provide custom cooling layouts for every type of builder.
Modern Connectivity, Visuals & DIY Tools
Experience blazing-fast speeds with WiFi 7 and Intel 2.5Gb LAN, while USB4 ports support up to 40 Gbps data transfer and even 8K display output. PCIe 5.0 slots offer future-proof support for high-end GPUs and NVMe drives. For audio and visuals, the SupremeFX ALC4080 codec with Dolby Atmos delivers immersive, studio-quality sound. DIY-friendly features like Q-Release, M.2 Q-Latch, Q-LED, and BIOS Flashback simplify builds and upgrades, while software tools like Armoury Crate and AIDA64 Extreme provide complete system control and monitoring.
| Specification | Details |
|---|---|
| Motherboard Type | Desktop |
| Form Factor | ATX |
| Socket | AMD AM5 |
| Chipset | AMD X870 |
| CPU Support | Click here for CPU support |
| RAM Technology | DDR5 (Dual Channel), ECC and Non-ECC, Un-buffered Memory, Supports AMD EXPO, ASUS Enhanced Memory Profile |
| RAM Slots | 4 x DIMM |
| RAM Speeds | Up to 8000+MT/s (OC) with Ryzen 9000 & 8000 & 7000 CPUs |
| Maximum Memory | 256GB |
| Graphics | Integrated Graphics (Specifications may vary between CPU types) |
| Graphics Ports | 1 x HDMI 1 x Display Port 2 x USB4 (40Gbps) support USB Type-C display outputs |
| PCI/PCI Express | Ryzen 9000 & 7000 CPUs: 1 x PCIe 5.0 x16 (supports x16 mode) Ryzen 8000 CPUs: 1 x PCIe 4.0 x16 (supports x8/x4 mode) AMD X870 Chipset: 1 x PCIe 4.0 x16 (supports x4 mode) |
| Storage | 2 x SATA III 4 x M.2 Ryzen 9000 & 7000 CPUs: M.2_1 (2242/2260/2280) – PCIe 5.0 x4 M.2_2 (2242/2260/2280/22110) – PCIe 5.0 x4 Ryzen 8000 CPUs: M.2_1 (2242/2260/2280) – PCIe 4.0 x4 M.2_2 (2242/2260/2280/22110) – not supported X870E Chipset: M.2_3 (2280) – PCIe 4.0 x4 M.2_4 (2280) – PCIe 4.0 x4 |
| RAID | AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1. RAID 5 Function is only supported by AMD Ryzen 9000 series CPU |
| Wireless | Wi-Fi 7, 2×2 Wi-Fi 7 (802.11be), Supports 2.4/5/6GHz frequency band, Supports Wi-Fi 7 320MHz bandwidth, up to 6.5Gbps transfer rate, Bluetooth v5.4 |
| LAN | 2.5GB LAN |
| Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 |
| USB Ports Supported | Rear: 2 x USB4 (40Gbps) Type-C 1 x USB 10Gbps Type-C (up to 30W PD Fast-charge) 5 x USB 10Gbps Type-A 4 x USB 5Gbps Type-A Front: 1 x USB 20Gbps Type-C 4 x USB 5Gbps 4 x USB 2.0 |
| Back Panel I/O Ports | 2 x USB4 (40Gbps) Type-C 1 x USB 10Gbps Type-C (up to 30W PD Fast-charge) 5 x USB 10Gbps Type-A 4 x USB 5Gbps Type-A 1 x Display Port 1 x HDMI 1 x Wi-Fi module 1 x Intel 2.5Gb Ethernet 2 x Audio jacks 1 x Optical S/PDIF out 1 x BIOS FlashBack button 1 x Clear CMOS button |
| Internal I/O Connectors | 1 x 4-pin CPU Fan 1 x 4-pin CPU OPT Fan 1 x 4-pin AIO Pump 5 x 4-pin Chassis Fan 1 x 24-pin Main 2 x 8-pin +12V CPU 4 x M.2 (Key M) 2 x SATA 6Gb/s 1 x USB 20Gbps Type-C 2 x USB 5Gbps 2 x USB 2.0 3 x Addressable Gen2 1 x Alteration PCIe mode switch 1 x Chassis Intrusion 1 x CPU Over voltage jumper 1 x Front Panel Audio 1 x Start button 1 x 10-1 pin System Panel 1 x Thermal Sensor |
| Accessories | 2 x SATA 6Gb/s cables 1 x Thermal pad for M.2 22110 1 x ASUS WiFi Q-Antenna 1 x Cable ties package 1 x M.2 Q-Latch package 1 x M.2 Q-Slide package 1 x ROG key chain 1 x ROG Strix stickers 4 x M.2 rubber packages 1 x Quick start guide |
| Package Type | Retail |
| Package Weight | 2.7500 kg |
| Warranty | 3 Years |
