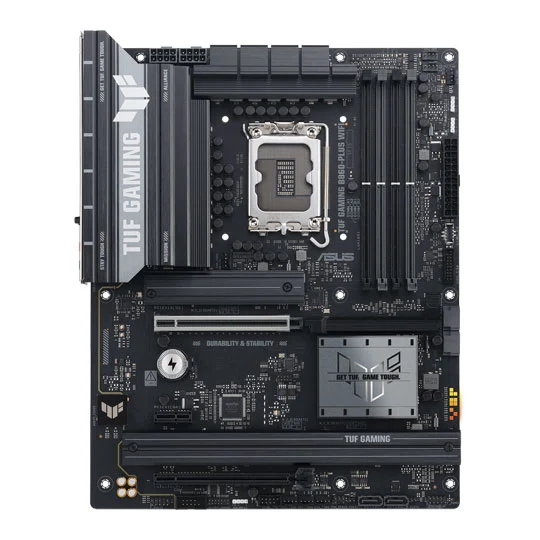

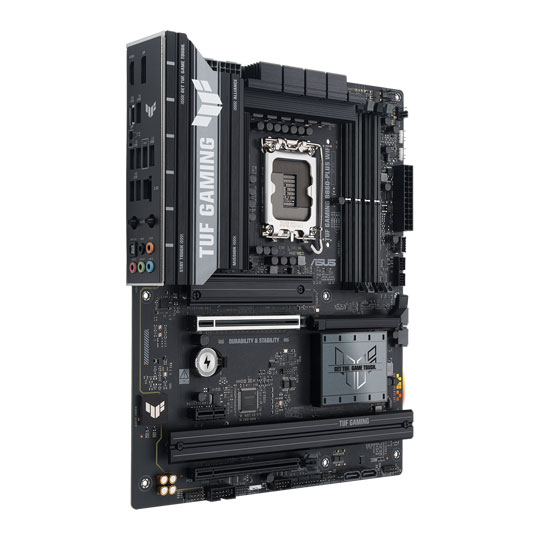

ASUS TUF B860-PLUS WIFI DDR5 ATX (Wi-Fi 7, 2.5G LAN, 3x M.2)
Original price was: £236.96.£223.37Current price is: £223.37.
ASUS TUF B860-PLUS WIFI DDR5 ATX (Wi-Fi 7, 2.5G LAN, 3x M.2)
MPN:
90MB1JL0-M0EAY0
-
Form Factor: ATX
-
Socket: Intel LGA 1851
-
Chipset: Intel B860
-
DDR Type: DDR5
Original price was: £236.96.£223.37Current price is: £223.37.
In stock
In stock
‣ 0% Interest for 4 months
‣ Finance your purchase with PayPal
Payment Methods:
Product Description
ASUS TUF GAMING B860-PLUS WIFI – Durable, Feature-Rich, AI PC Ready
The ASUS TUF GAMING B860-PLUS WIFI combines the power of Intel® Coreâ„¢ Ultra Processors (Series 2) with enhanced durability and gaming-grade features. Built with military-grade components, advanced cooling, and upgraded power delivery, it’s engineered for long-term stability and next-gen AI PC performance.
Key Features:
-
Intel® B860 (LGA1851) ATX motherboard with DDR5 support
-
12+1+2+1 Power Stages (80A) for stable CPU performance
-
PCIe 5.0 & 3x M.2 slots for ultra-fast storage
-
Wi-Fi 7 + 2.5Gb LAN for next-gen networking
-
Rear USB 20Gbps Type-C® with DisplayPort Alt Mode
-
DisplayPort, HDMI, Front USB-C 10Gbps, Aura Sync RGB
Smart Control & DIY Friendly
-
AI Advisor & UEFI BIOS make system setup and tuning easy for beginners and pros.
-
ASUS DriverHub, GlideX, Armoury Crate offer system optimization and RGB control.
-
Q-Release, Q-Latch, Q-LED simplify GPU/SSD installations and troubleshooting.
Premium Build & Cooling
-
Six-layer PCB, ProCool connectors, Digi+ VRM, and TUF chokes ensure power efficiency and thermal stability.
-
Large VRM & PCH heatsinks, AIO pump support, and Fan Xpert 4 offer superior cooling control.
Memory & Storage
-
Advanced DDR5 tuning, AEMP III, and DIMM Fit maximize memory performance up to DDR5-7600+.
-
One PCIe 5.0 M.2 slot and two additional M.2 slots with RAID support.
Robust Connectivity
-
PCIe 5.0 x16 slot for graphics cards
-
Rear USB-C 20Gbps with DisplayPort, front USB-C 10Gbps
-
Wi-Fi 7 and 2.5Gb Ethernet for ultra-fast, low-latency networking
Durability & Protection
-
SafeSlot & SafeDIMM, ESD Guards, TUF LANGuard, and Stainless Steel I/O Shield offer protection against physical and electrical wear.
Immersive Audio & Lighting
-
Realtek 7.1 surround sound, DTS Audio Processing for deep, clear audio
-
Aura Sync RGB lighting and Gen 2 ARGB headers for full customization
| Specification | Details |
|---|---|
| Motherboard Type | Desktop |
| Form Factor | ATX |
| Socket | Intel 1851 |
| Chipset | Intel B860 |
| DDR Type | DDR5 |
| CPU Support | Click here for CPU support |
| RAM Technology | DDR5 (Dual Channel), Non-ECC, Un-buffered, CUDIMM, Intel XMP, AEMP III |
| RAM Slots | 4 x DIMM |
| RAM Speeds | Up to 8666+ MT/s (OC) |
| Maximum Memory | 256GB |
| Graphics | Integrated (Varies by CPU) |
| Graphics Ports | 1 x HDMI, 1 x DisplayPort, 1 x USB-C (20Gbps, supports DisplayPort output) |
| PCIe Slots | – 1 x PCIe 5.0 x16 (CPU) – 1 x PCIe 4.0 x16 (x4 mode, Chipset) – 1 x PCIe 4.0 x1 |
| Storage Options | 4 x SATA III, 3 x M.2 |
| M.2 Configuration | – M.2_1: PCIe 5.0 x4 (CPU) – M.2_2: PCIe 4.0 x4 (2280/22110) – M.2_3: PCIe 4.0 x4 (2242/2260/2280) |
| RAID Support | Intel RST – RAID 0/1/5/10 |
| Wireless | Wi-Fi 7 (2×2, 2.4/5/6GHz, 160MHz), Bluetooth v5.4 |
| LAN | 2.5GB Ethernet |
| Audio | Realtek 7.1 Surround HD Audio CODEC |
| Rear USB Ports | – 1 x USB-C 20Gbps – 2 x USB-A 10Gbps – 3 x USB-A 5Gbps – 2 x USB 2.0 |
| Front USB Ports | – 1 x USB-C 10Gbps – 2 x USB 5Gbps – 2 x USB 2.0 |

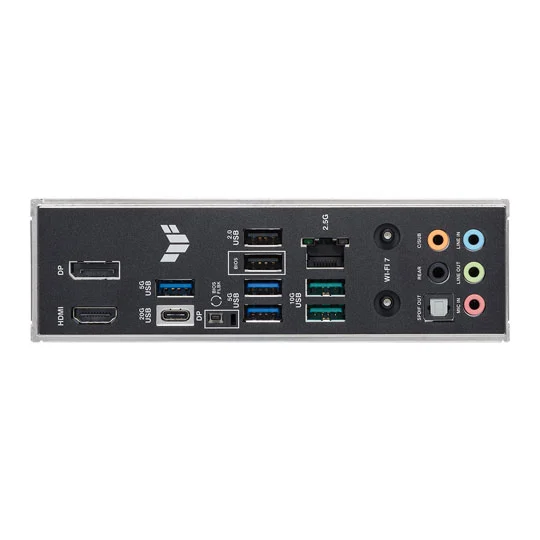

| Back Panel I/O | USB ports (as above), 1 x HDMI, 1 x DisplayPort, 1 x Wi-Fi module, 1 x 2.5Gb LAN, 5 x audio jacks, 1 x Optical S/PDIF, 1 x BIOS FlashBack |
| Internal I/O Connectors | 4 x Chassis Fan, 1 x CPU Fan, 1 x CPU OPT Fan, 1 x AIO Pump, 2 x 8-pin CPU, 1 x 24-pin Main, 3 x M.2 (Key M), 4 x SATA, USB headers, Thunderbolt, Clear CMOS, Chassis Intrusion, COM, Front Panel, Front Audio |
| Accessories | 2 x SATA Cables, Wi-Fi Antenna, M.2 Screws & Rubber, TUF GAMING Sticker, Quick Start Guide |
| Additional Features | Out of the box RGB lighting, See Overview |
| Package Type | Retail |
| Package Weight | 2.0900 kg |
| Warranty | 3 Years |
