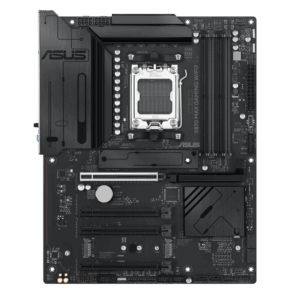

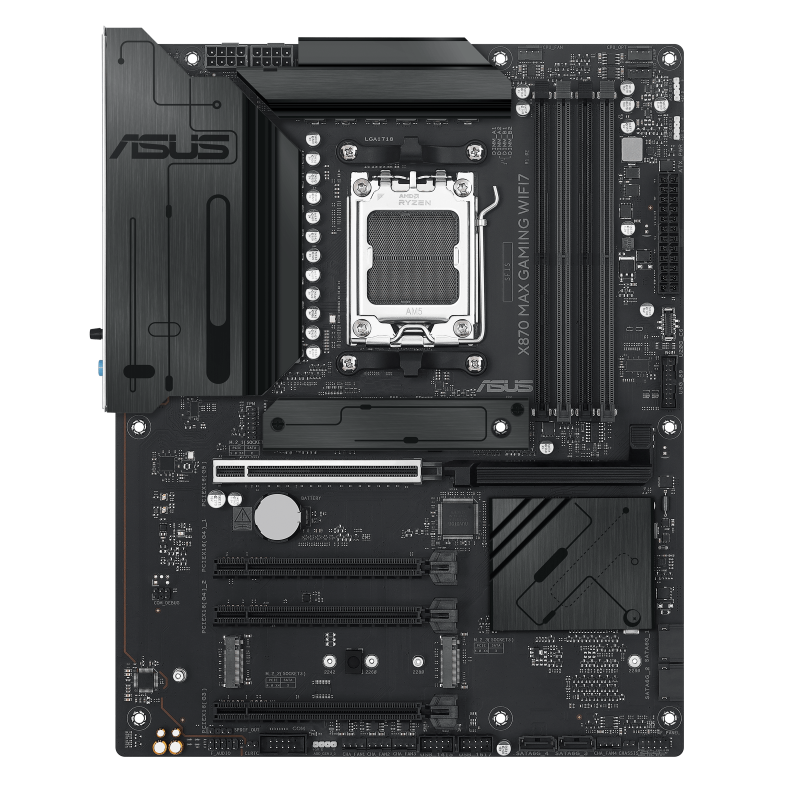

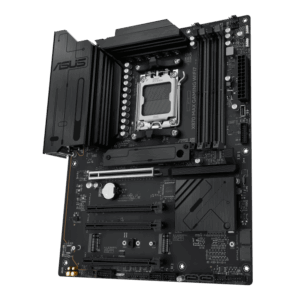

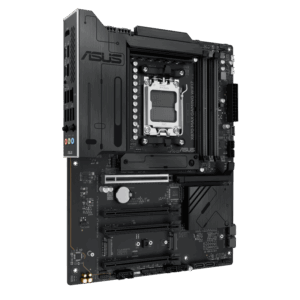

Asus X870 MAX GAMING WIFI7, AMD X870, AM5, ATX, 4 DDR5, HDMI, 2 USB4, Wi-Fi 7, 2.5G LAN, 3x M.2
Original price was: £333.01.£313.91Current price is: £313.91.
Asus X870 MAX GAMING WIFI7, AMD X870, AM5, ATX, 4 DDR5, HDMI, 2 USB4, Wi-Fi 7, 2.5G LAN, 3x M.2
MPN:
90MB1LY0-M0EAY0
- Form Factor: ATX
- Socket: AMD AM5
- Chipset: AMD X870
- DDR Type: DDR5
Original price was: £333.01.£313.91Current price is: £313.91.
In stock
In stock
‣ 0% Interest for 4 months
‣ Finance your purchase with PayPal
Payment Methods:
Product Description
ASUS X870 MAX GAMING WIFI7 | Engineered for Next-Gen AMD Ryzenâ„¢ 9000 Power
Built for the Future of Performance
The ASUS X870 MAX GAMING WIFI7 motherboard is purpose-built to harness the full capabilities of AMD's Ryzenâ„¢ 9000, 8000, and 7000 series processors. With support for ultra-fast DDR5 memory, PCIe 5.0 graphics, and cutting-edge USB4 connectivity, this ATX motherboard is a powerhouse platform for gamers, creators, and professionals who demand peak performance.
Next-Level Connectivity and Expansion
Experience blazing speeds with Wi-Fi 7, dual USB4 ports, and a 2.5G LAN for ultra-responsive networking. With support for up to 256GB DDR5 RAM and 3x M.2 storage slots including PCIe 5.0, your system is future-ready for demanding workflows and high-end gaming.
Optimized Cooling and Design
ASUS brings elite cooling solutions like 0-dB fan tech, composite heat pipes, and multiple fan headers to ensure silent operation even under pressure. The premium components, RGB support, and solid build quality ensure it looks as good as it performs.
Technical Specifications
| Specifications | |
|---|---|
| Motherboard Type | Desktop |
| Form Factor | ATX |
| Socket | AMD AM5 |
| Chipset | AMD X870 |
| DDR Type | DDR5 |
| CPU Support | Click here for CPU support |
| RAM Technology | DDR5 (Dual Channel) ECC and Non-ECC, Un-buffered Memory* Supports AMD EXPO ASUS Enhanced Memory Profile *Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. |
| RAM Slots | 4 x DIMM |
| RAM Speeds | Up to 8000+MT/s(OC) with Ryzen 9000 & 8000 & 7000 CPUs |
| Maximum Memory | 256GB |
| Graphics | Integrated Graphics Graphics specifications may vary between CPU types |
| Graphics Ports | 1 x HDMI 2 x USB4 (40Gbps) support USB Type-C display outputs |
| PCI/PCI Express | Ryzen 9000 & 7000 CPUs: 1 x PCIe 5.0 x16 (x16 mode) Ryzen 8000 CPUs: 1 x PCIe 4.0 x16 (x8/x4 mode) AMD X870 Chipset: 2 x PCIe 4.0 x16 (x1 mode), 1 x PCIe 3.0 x16 (x1 mode) |
| Storage | 4 x SATA III 3 x M.2 with various support depending on CPU |
| RAID | 9000: RAID 0/1/5/10 8000: RAID 0/1 7000: RAID 0/1/10 |
| Wireless | Wi-Fi 7 (2×2, 802.11be, 2.4/5/6GHz, 160MHz, up to 2.9Gbps) Bluetooth v5.4 |
| LAN | 2.5GB LAN |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC |
| USB Ports Supported | Rear: 2 x USB4 Type-C, 1 x USB 10Gbps Type-A, 3 x USB 5Gbps Type-A, 4 x USB 2.0 Front: 1 x USB 20Gbps Type-C, 2 x USB 5Gbps, 4 x USB 2.0 |
| Back Panel I/O Ports | 2 x USB4 Type-C, 1 x USB 10Gbps Type-A, 3 x USB 5Gbps Type-A, 4 x USB 2.0, 1 x HDMI, 1 x Wi-Fi module, 1 x 2.5Gb Ethernet, 3 x Audio jacks, 1 x BIOS FlashBack button |
| Internal I/O Connectors | All standard connectors including CPU fan headers, AIO, chassis fans, 24-pin main, dual 8-pin CPU, USB headers, RGB, CMOS, TPM, and system panel |
| Accessories | 2 x SATA cables, ASUS WiFi antenna, M.2 rubber & screw package, Quick start guide |
| Additional Features | See Overview |
| Package Type | Retail |
| Package Weight | 1.9450 kg |
| Warranty | 3 Years |
