Asrock B860 LIVEMIXER WIFI, Intel B860, 1851, ATX, 4 DDR5, HDMI, DP, TB4, Wi-Fi 6E, 2.5G LAN, RGB, 3x M.2
Original price was: £164.32.£154.90Current price is: £154.90.
Asrock B860 LIVEMIXER WIFI, Intel B860, 1851, ATX, 4 DDR5, HDMI, DP, TB4, Wi-Fi 6E, 2.5G LAN, RGB, 3x M.2
MPN:
B860 LIVEMIXER WIFI
- Form Factor: ATX
- Socket: LGA 1851
- Chipset: Intel B860
- DDR Type: DDR5
Original price was: £164.32.£154.90Current price is: £154.90.
In stock
In stock
‣ 0% Interest for 4 months
‣ Finance your purchase with PayPal
Payment Methods:
Product Description

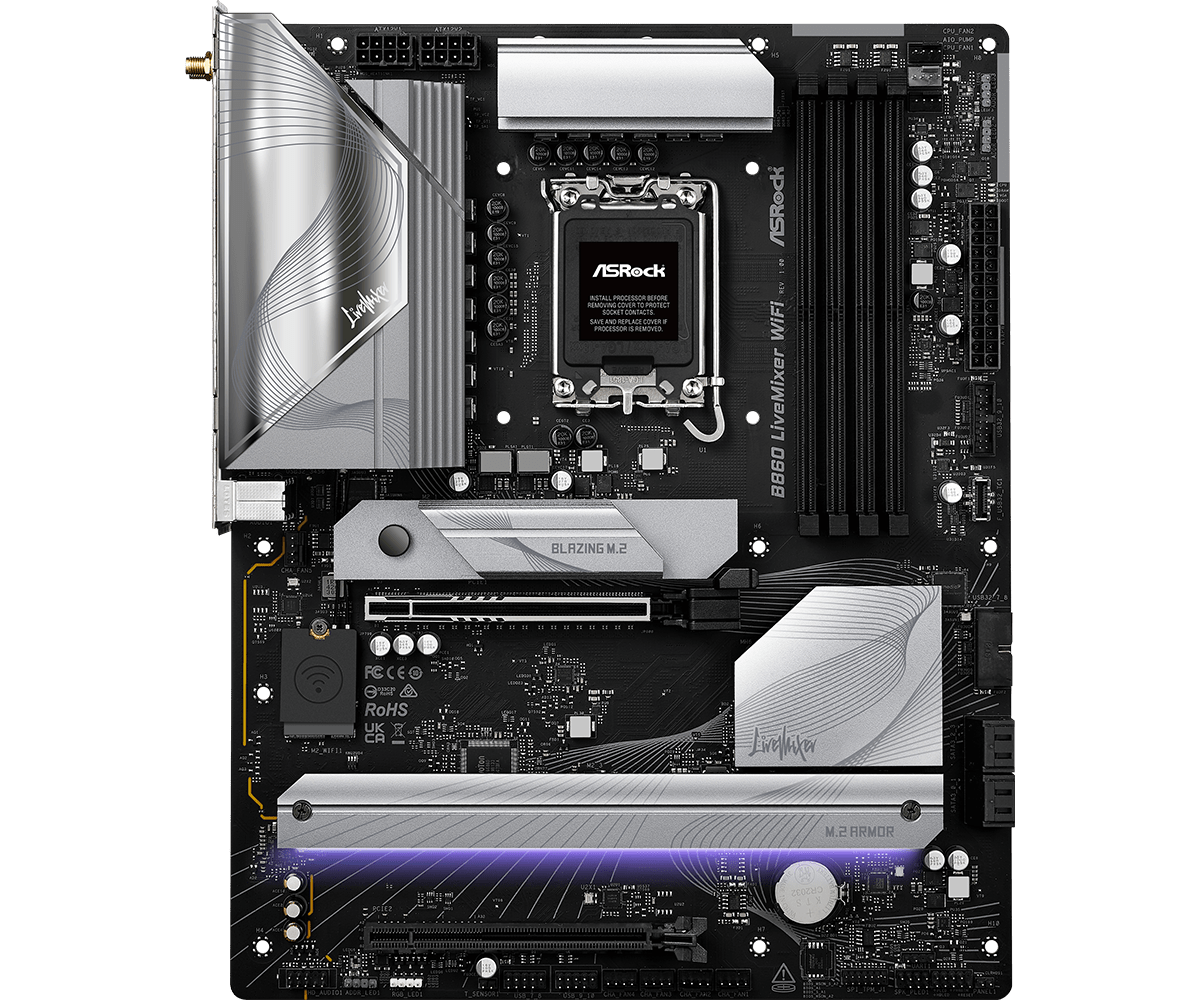

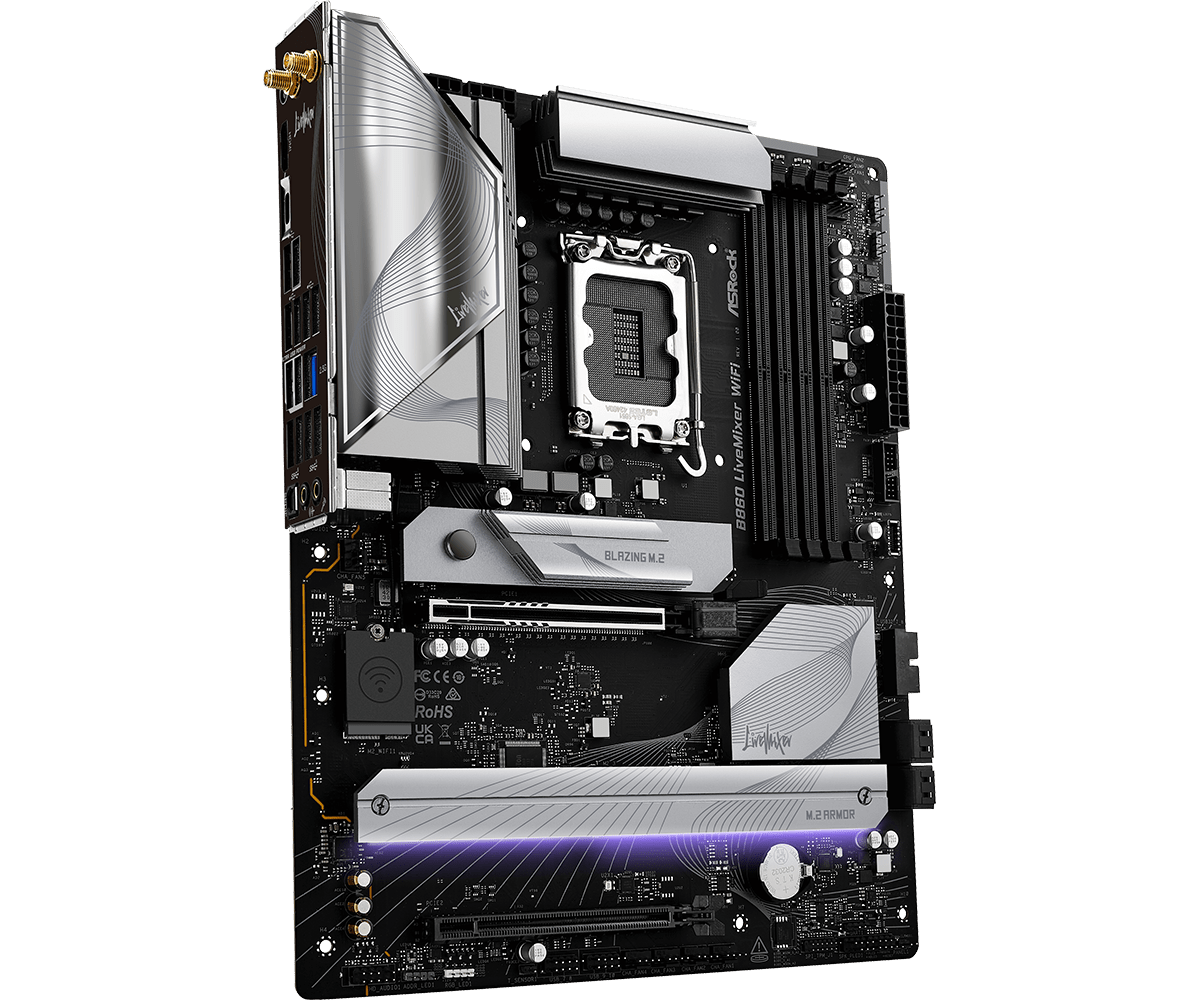

ASRock B860M LiveMixer Creator-Ready Powerhouse for Intel Ultra Platforms
Built to Empower Content Creators
The ASRock B860M LiveMixer is engineered to elevate your content creation workflow with the latest Intel® Core™ Ultra Processors (Series 2) on the LGA1851 socket. With an exceptional 12+1+1+1+1 Dr.MOS power phase design and high-grade 20K capacitors, it ensures robust power delivery and stability even under intense loads. Featuring advanced DDR5 memory support up to 8666+ MHz (OC), dual-channel architecture, and reinforced Hi-Density power connectors, this motherboard is built to maximize speed and responsiveness in every task—from editing and streaming to rendering complex visual projects.
High-Speed Storage and Ultra-Connectivity
Experience blazing-fast storage with a PCIe Gen5 Blazing M.2 slot, supported by two Hyper M.2 Gen4x4 slots, ideal for high-performance SSDs. For creators who demand seamless connectivity, the LiveMixer delivers 22 USB ports across front and rear panels, including Thunderboltâ„¢ 4 Type-C and USB 3.2 Gen1 support. Dual-display graphics output via HDMI and Thunderbolt 4 ensures flexible visual setups. Realtek 2.5G LAN and built-in Wi-Fi 6E with Bluetooth 5.3 guarantee a high-speed, interference-free online experience.
DIY Friendly and Aesthetically Ready
From the oversized M.2 heatsinks with toolless mounting to the intuitive BIOS Flashback function, the LiveMixer is exceptionally DIY friendly. The Polychrome RGB and SignalRGB integration bring dynamic lighting personalization to your rig, while the flexible integrated I/O shield and optimized aluminum heatsinks make installation seamless. With Nahimic Audio delivering studio-grade sound and ASRock’s fan tuning technologies ensuring thermal control, this board is a complete package designed to power and inspire creators, gamers, and PC enthusiasts alike.
| Specification | Details |
|---|---|
| Motherboard Type | Desktop |
| Form Factor | ATX |
| Socket | Intel 1851 |
| Chipset | Intel B860 |
| DDR Type | DDR5 |
| RAM Technology | Dual Channel, Non-ECC, XMP 3.0, Up to 8666+ MHz (OC) |
| RAM Slots | 4 x DIMM |
| Maximum Memory | 256GB |
| Graphics | Integrated Graphics (varies by CPU) |
| Graphics Ports | 1 x HDMI, 1 x Display Port, 1 x Thunderbolt 4 |
| PCIe Slots | 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16 (x4 mode) |
| Storage | 4 x SATA III, 3 x M.2 (1 x PCIe 5.0 x4, 2 x PCIe 4.0 x4) |
| RAID Support | RAID 0, 1, 5, 10 (SATA) |
| Wireless | Wi-Fi 6E 802.11axe, Bluetooth 5.3 |
| LAN | 2.5GB LAN |
| Audio | 7.1 CH HD Audio (Realtek ALC1220) |
| USB Ports (Rear) | 1 x Thunderbolt 4 Type-C, 6 x USB 3.2 Gen1, 6 x USB 2.0 |
| USB Ports (Front) | 1 x USB 3.2 Gen1 Type-C, 4 x USB 3.2 Gen1, 4 x USB 2.0 |
| Back Panel I/O | 2 x Antenna, 1 x HDMI, 1 x Display Port, 1 x Thunderbolt 4 Type-C, 1 x Optical SPDIF Out, 1 x LAN, 6 x USB 3.2 Gen1, 6 x USB 2.0, Audio Jacks, BIOS Flashback Button |
| Internal I/O | Thermistor, TPM, RGB, Addressable RGB, CPU Fan, Chassis Fan, AIO Pump, USB 2.0, USB 3.2 Gen1, Front Panel Type-C, Power LED, Audio Header |
| Accessories | 2 x SATA Cables, 2 x WiFi Antennas, 1 x Thermistor Cable |
| Warranty | 3 Year Replacement Warranty |
