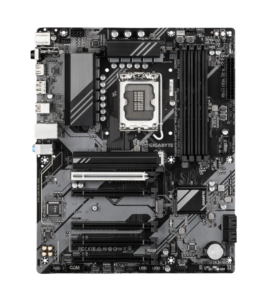

GIGABYTE B760 DS3H WIFI6E GEN5 Motherboard LGA 1700, DDR5, Wi-Fi 6E
£125.74 Inc.VAT
In stock
In stock
Features
- Form Factor: ATX
- Socket: Intel LGA 1700
- Chipset: Intel B760 Express
- DDR Type: DDR5
View Delivery Options
- Free Pickup from our Central London Store.
- Standard Delivery (Free): Arrives in 2–3 working days.
- Express Delivery: Arrives in 1–2 working days.
View Payment Methods
GIGABYTE B760 DS3H WIFI6E GEN5 DDR5 Motherboard
Reliable Power and Next-Generation Processor Support
The GIGABYTE B760 DS3H WIFI6E GEN5 motherboard provides a capable and reliable platform for gaming PCs, productive workstations and everyday desktop systems. Its LGA 1700 socket supports Intel Core 14th, 13th and 12th Generation processors, alongside compatible Intel Pentium Gold and Celeron processors.
Built around the Intel B760 Express chipset, the motherboard combines modern expansion technology with dependable system operation. Its 8+2+1 phase digital VRM design helps provide consistent processor power delivery during gaming, multitasking and demanding application workloads.
The ATX form factor provides a practical layout for full-sized desktop cases, with multiple fan, pump and RGB headers available for cooling and visual customisation. GIGABYTE Q-Flash Plus also allows supported BIOS updates without requiring the complete system to be assembled.
Fast DDR5 Memory and Flexible Storage

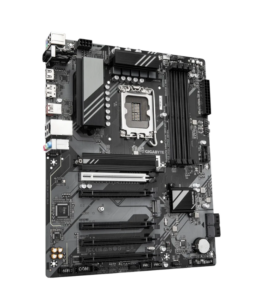

Four DDR5 DIMM sockets support up to 256 GB of dual-channel system memory. Compatible memory modules can operate at overclocked speeds reaching DDR5 7600 MT/s, while Intel Extreme Memory Profile support helps users configure supported high-performance memory settings more easily.
Storage connectivity includes two PCIe 4.0 M.2 connectors for high-speed NVMe solid-state drives. One connector is linked to the processor, while the second is connected through the Intel B760 chipset. Four SATA 6Gb/s connectors provide additional support for traditional SATA SSDs and hard drives.
SATA storage devices support RAID 0, RAID 1, RAID 5 and RAID 10 configurations, providing flexible choices for storage performance, redundancy and data organisation. This combination is suitable for operating systems, game libraries, creative applications and everyday file storage.
PCIe 5.0 Expansion and High-Speed Connectivity
A CPU-connected PCIe 5.0 x16 slot provides high bandwidth for compatible graphics cards and supported NVMe expansion devices. Four additional full-length PCIe slots operate at PCIe 3.0 x1 bandwidth, offering useful expansion for sound cards, capture devices, networking adapters and other add-in hardware.

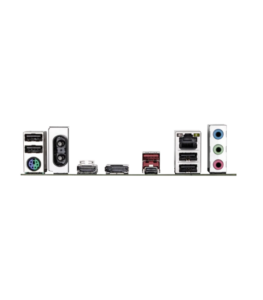

The rear I/O panel includes a high-speed USB 3.2 Gen 2×2 Type-C port, one USB 3.2 Gen 2 Type-A port and four USB 2.0 ports. Internal headers provide additional USB 3.2 Gen 1, USB Type-C and USB 2.0 connectivity for compatible PC cases and front-panel devices.
Intel Wi-Fi 6E supports 2.4GHz, 5GHz and 6GHz wireless bands, while Bluetooth 5.3 enables convenient peripheral connectivity. Realtek Gigabit Ethernet provides dependable wired networking. HDMI 2.1 and DisplayPort 1.2 outputs support flexible display configurations when used with a processor featuring integrated graphics.
| Brand | Gigabyte |
| Product Name | GIGABYTE B760 DS3H WIFI6E GEN5 Motherboard |
| CPU Socket | LGA 1700 |
| Compatible Processors | Intel Core 14th, 13th, and 12th Gen, Pentium Gold, Celeron |
| Motherboard Chipset | Intel B760 Express |
| Form Factor | ATX (305 mm x 244 mm) |
| VRM Power Phases | 8+2+1 Phases Digital VRM |
| Memory Type | DDR5-SDRAM |
| Memory Slots | 4 x DIMM Sockets (Dual-Channel) |
| Maximum Internal Memory | Up to 256 GB (64 GB per slot) |
| Supported Memory Speed | Up to 5600 MHz |
| PCI Express Expansion Slots | 1 x PCIe 5.0 x16 slot, 4 x PCIe 3.0 x16 slots |
| M.2 Storage Slots | 2 x PCIe 4.0 M.2 slots |
| SATA III Connectors | 4 x SATA III (6Gb/s) connectors |
| RAID Support | RAID 0, 1, 5, 10 |
| Rear USB Ports | 1 x USB 3.2 Gen 2×2 Type-C, 1 x USB 3.2 Gen 2 Type-A, 4 x USB 2.0 |
| HDMI Ports | 1 x HDMI 2.1 Port |
| DisplayPort Output | 2 x DisplayPort 1.2 Ports |
| Ethernet LAN | Gigabit Ethernet (Realtek RTL8111H) |
| Wireless and Bluetooth | Wi-Fi 6E (Intel AX210) + Bluetooth 5.3 |
| Audio Controller | Realtek ALC897 (7.1 High Definition Audio) |
| Supported Operating Systems | Windows 10 64-bit, Windows 11 64-bit |
| Warranty Period | 3 Years |
| MPN | B760 DS3H WF6E GEN5 |
| EAN | 4719331872939 |
| Brand | Gigabyte |
| Product Model | B760 DS3H WIFI6E GEN5 |
| Warranty Period | 3 Years |
| Warranty Type | Manufacturer Limited Warranty |
| Coverage Details | Covers hardware defects; excludes physical damage |
| Weight | 1.55 kg |
|---|---|
| Manufacturer | Gigabyte |
| Motherboard Form Factor | ATX |
| DDR Type | DDR5 |
| Socket | LGA 1700 |
| Motherboard WIFI | Yes |
| Warranty | 3 Year |
Customer Reviews
Description
GIGABYTE B760 DS3H WIFI6E GEN5 DDR5 Motherboard
Reliable Power and Next-Generation Processor Support
The GIGABYTE B760 DS3H WIFI6E GEN5 motherboard provides a capable and reliable platform for gaming PCs, productive workstations and everyday desktop systems. Its LGA 1700 socket supports Intel Core 14th, 13th and 12th Generation processors, alongside compatible Intel Pentium Gold and Celeron processors.
Built around the Intel B760 Express chipset, the motherboard combines modern expansion technology with dependable system operation. Its 8+2+1 phase digital VRM design helps provide consistent processor power delivery during gaming, multitasking and demanding application workloads.
The ATX form factor provides a practical layout for full-sized desktop cases, with multiple fan, pump and RGB headers available for cooling and visual customisation. GIGABYTE Q-Flash Plus also allows supported BIOS updates without requiring the complete system to be assembled.
Fast DDR5 Memory and Flexible Storage
Four DDR5 DIMM sockets support up to 256 GB of dual-channel system memory. Compatible memory modules can operate at overclocked speeds reaching DDR5 7600 MT/s, while Intel Extreme Memory Profile support helps users configure supported high-performance memory settings more easily.
Storage connectivity includes two PCIe 4.0 M.2 connectors for high-speed NVMe solid-state drives. One connector is linked to the processor, while the second is connected through the Intel B760 chipset. Four SATA 6Gb/s connectors provide additional support for traditional SATA SSDs and hard drives.
SATA storage devices support RAID 0, RAID 1, RAID 5 and RAID 10 configurations, providing flexible choices for storage performance, redundancy and data organisation. This combination is suitable for operating systems, game libraries, creative applications and everyday file storage.
PCIe 5.0 Expansion and High-Speed Connectivity
A CPU-connected PCIe 5.0 x16 slot provides high bandwidth for compatible graphics cards and supported NVMe expansion devices. Four additional full-length PCIe slots operate at PCIe 3.0 x1 bandwidth, offering useful expansion for sound cards, capture devices, networking adapters and other add-in hardware.
The rear I/O panel includes a high-speed USB 3.2 Gen 2×2 Type-C port, one USB 3.2 Gen 2 Type-A port and four USB 2.0 ports. Internal headers provide additional USB 3.2 Gen 1, USB Type-C and USB 2.0 connectivity for compatible PC cases and front-panel devices.
Intel Wi-Fi 6E supports 2.4GHz, 5GHz and 6GHz wireless bands, while Bluetooth 5.3 enables convenient peripheral connectivity. Realtek Gigabit Ethernet provides dependable wired networking. HDMI 2.1 and DisplayPort 1.2 outputs support flexible display configurations when used with a processor featuring integrated graphics.
Specifications
| Brand | Gigabyte |
| Product Name | GIGABYTE B760 DS3H WIFI6E GEN5 Motherboard |
| CPU Socket | LGA 1700 |
| Compatible Processors | Intel Core 14th, 13th, and 12th Gen, Pentium Gold, Celeron |
| Motherboard Chipset | Intel B760 Express |
| Form Factor | ATX (305 mm x 244 mm) |
| VRM Power Phases | 8+2+1 Phases Digital VRM |
| Memory Type | DDR5-SDRAM |
| Memory Slots | 4 x DIMM Sockets (Dual-Channel) |
| Maximum Internal Memory | Up to 256 GB (64 GB per slot) |
| Supported Memory Speed | Up to 5600 MHz |
| PCI Express Expansion Slots | 1 x PCIe 5.0 x16 slot, 4 x PCIe 3.0 x16 slots |
| M.2 Storage Slots | 2 x PCIe 4.0 M.2 slots |
| SATA III Connectors | 4 x SATA III (6Gb/s) connectors |
| RAID Support | RAID 0, 1, 5, 10 |
| Rear USB Ports | 1 x USB 3.2 Gen 2×2 Type-C, 1 x USB 3.2 Gen 2 Type-A, 4 x USB 2.0 |
| HDMI Ports | 1 x HDMI 2.1 Port |
| DisplayPort Output | 2 x DisplayPort 1.2 Ports |
| Ethernet LAN | Gigabit Ethernet (Realtek RTL8111H) |
| Wireless and Bluetooth | Wi-Fi 6E (Intel AX210) + Bluetooth 5.3 |
| Audio Controller | Realtek ALC897 (7.1 High Definition Audio) |
| Supported Operating Systems | Windows 10 64-bit, Windows 11 64-bit |
| Warranty Period | 3 Years |
| MPN | B760 DS3H WF6E GEN5 |
| EAN | 4719331872939 |
Warranty
| Brand | Gigabyte |
| Product Model | B760 DS3H WIFI6E GEN5 |
| Warranty Period | 3 Years |
| Warranty Type | Manufacturer Limited Warranty |
| Coverage Details | Covers hardware defects; excludes physical damage |
