GIGABYTE B850M FORCE WF6E Motherboard – AMD AM5, DDR5, PCIe 5.0, Wi-Fi 6E
£122.93 Inc.VAT
In stock
In stock
Features
- Form Factor: Micro ATX
- Socket: AMD AM5
- Chipset: AMD B850
- DDR Type: DDR5
View Delivery Options
- Free Pickup from our Central London Store.
- Standard Delivery (Free): Arrives in 2–3 working days.
- Express Delivery: Arrives in 1–2 working days.
View Payment Methods
GIGABYTE B850M FORCE WIFI6E Motherboard

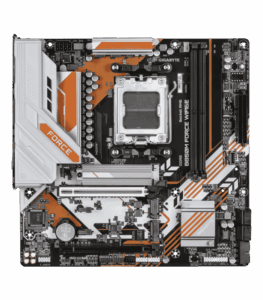

Motherboard Overview and Architecture
The GIGABYTE B850M FORCE WIFI6E is a feature-rich Micro ATX motherboard designed to support AMD Socket AM5 processors, including the Ryzen™ 9000, 8000 and 7000 Series. Built around the modern AMD B850 chipset, it provides a powerful compact platform for gaming PCs, productivity systems and high-performance desktop builds.
Dual-channel DDR5 memory support is provided through two DIMM sockets, with overclocked memory speeds reaching up to 9600 MT/s. Support for AMD EXPO™ and Intel® XMP profiles also makes it easier to configure compatible high-performance memory kits for increased system bandwidth.
Expansion capabilities include a primary PCIe x16 slot connected directly to the processor, operating at up to PCIe 5.0 speeds depending on the installed CPU. A secondary PCIe 4.0 x4 slot powered through the chipset provides additional flexibility for compatible expansion hardware.

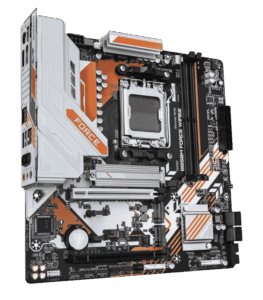

High-Speed Storage and Connectivity Options
Storage versatility is a major highlight of the GIGABYTE B850M FORCE WIFI6E, with three M.2 Socket 3 connectors complemented by four SATA 6Gb/s ports. This combination gives builders plenty of flexibility when combining modern NVMe SSDs with traditional SATA storage devices.
The primary M.2 connector can deliver PCIe 5.0 x4 bandwidth when paired with compatible Ryzen™ 9000 or 7000 Series processors, providing the bandwidth required by cutting-edge NVMe solid-state drives. NVMe RAID 0, 1, 5 and 10 support also enables a range of performance and data redundancy configurations.
Networking is equally capable, combining a Realtek® 2.5GbE LAN controller with a MediaTek Wi-Fi 6E MT7902 wireless module. Tri-band 2.4 GHz, 5 GHz and 6 GHz wireless connectivity is complemented by Bluetooth 5.3 for compatible peripherals and accessories.

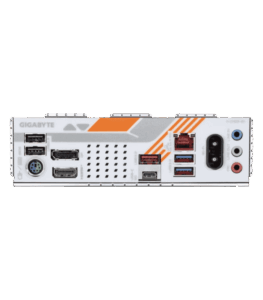

Comprehensive Rear and Internal Input/Output
The rear I/O provides a versatile selection of display and peripheral connections. HDMI 2.1 supports resolutions up to 4096 × 2160 at 60 Hz, while DisplayPort 1.4 can deliver up to 3840 × 2160 at 144 Hz, depending on the capabilities of the installed processor and integrated graphics.
USB connectivity includes USB Type-C® with USB 3.2 Gen 1 support, a high-speed USB 3.2 Gen 2 Type-A connection, additional USB 3.2 Gen 1 ports and standard USB 2.0 connectivity. This broad selection accommodates everything from keyboards and mice to external storage and other high-bandwidth peripherals.
Internal connectivity expands the board’s flexibility with front-panel USB Type-C® support, multiple fan and water-cooling pump headers and addressable RGB Gen2 strip headers. GIGABYTE Q-Flash Plus further simplifies system setup by allowing compatible BIOS updates without requiring the processor to be installed.
| Brand | GIGABYTE |
| Model Name | B850M FORCE WIFI6E |
| CPU Socket | AMD Socket AM5 |
| Supported Processors | AMD Ryzen 9000 / 8000 / 7000 Series Processors |
| Chipset | AMD B850 |
| Memory Support | 2 x DDR5 DIMM sockets, up to 128 GB, DDR5 9600(OC) to 4400 MT/s |
| Memory Architecture | Dual channel, Non-ECC Un-buffered, AMD EXPO and XMP support |
| HDMI Port | 1 x HDMI 2.1, maximum resolution 4096×2160 at 60 Hz |
| DisplayPort | 1 x DisplayPort 1.4, maximum resolution 3840×2160 at 144 Hz |
| Audio CODEC | Realtek High Definition Audio, 2/4/5.1/7.1-channel |
| Wired LAN | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless Communication | MediaTek Wi-Fi 6E MT7902 (2.4/5/6 GHz, 11ax 160MHz) |
| Bluetooth | BLUETOOTH 5.3 |
| Primary Expansion Slot | 1 x PCI Express x16 slot (PCIe 5.0 / 4.0 depending on CPU) |
| Secondary Expansion Slot | 1 x PCI Express x16 slot, running at PCIe 4.0 x4 |
| M.2 Storage Interfaces | 3 x M.2 Socket 3 connectors (type 2280 PCIe SSD support) |
| SATA Ports | 4 x SATA 6Gb/s connectors |
| RAID Support | NVMe RAID 0/1/5/10 and SATA RAID 0/1/10 |
| USB Ports (Rear & Internal) | 2 x USB Type-C, 1 x USB 3.2 Gen 2, 4 x USB 3.2 Gen 1, 6 x USB 2.0/1.1 |
| Special Features | Q-Flash, Q-Flash Plus, GIGABYTE Control Center (GCC) |
| BIOS | 1 x 256 Mbit flash, AMI UEFI BIOS |
| Supported Operating System | Windows 11 64-bit, Windows 10 64-bit |
| Form Factor | Micro ATX Form Factor (24.4cm x 24.4cm) |
| MPN | B850M FORCE WF6E |
| EAN | 4719331874308 |
| Brand | GIGABYTE |
| Warranty Duration | 3 Years Limited Manufacturer Warranty (calculated from the date of purchase with valid proof or invoice). |
| Warranty Coverage | Covers free repair or replacement of defective internal components, factory hardware faults, circuit failure, and manufacturing defects under normal operating conditions. |
| Warranty Exclusions | Does not cover physical damage, bent CPU socket pins, liquid spills, electrical burn marks, unauthorized repairs, bios bricking via unofficial tools, or tampered serial numbers. |
| Service & Claim Procedure | Claims must be submitted through an authorized GIGABYTE service center or the original seller/distributor along with the tax invoice and original product packaging. |
| Weight | 2 kg |
|---|---|
| Manufacturer | Gigabyte |
| Warranty | 3 Year |
| Socket | AMD AM5 |
| Chipset Manufacturer | AMD |
| DDR Type | DDR5 |
| Motherboard Form Factor | Micro ATX |
| Motherboard WIFI | Yes |
Customer Reviews
Description
GIGABYTE B850M FORCE WIFI6E Motherboard
Motherboard Overview and Architecture
The GIGABYTE B850M FORCE WIFI6E is a feature-rich Micro ATX motherboard designed to support AMD Socket AM5 processors, including the Ryzen™ 9000, 8000 and 7000 Series. Built around the modern AMD B850 chipset, it provides a powerful compact platform for gaming PCs, productivity systems and high-performance desktop builds.
Dual-channel DDR5 memory support is provided through two DIMM sockets, with overclocked memory speeds reaching up to 9600 MT/s. Support for AMD EXPO™ and Intel® XMP profiles also makes it easier to configure compatible high-performance memory kits for increased system bandwidth.
Expansion capabilities include a primary PCIe x16 slot connected directly to the processor, operating at up to PCIe 5.0 speeds depending on the installed CPU. A secondary PCIe 4.0 x4 slot powered through the chipset provides additional flexibility for compatible expansion hardware.
High-Speed Storage and Connectivity Options
Storage versatility is a major highlight of the GIGABYTE B850M FORCE WIFI6E, with three M.2 Socket 3 connectors complemented by four SATA 6Gb/s ports. This combination gives builders plenty of flexibility when combining modern NVMe SSDs with traditional SATA storage devices.
The primary M.2 connector can deliver PCIe 5.0 x4 bandwidth when paired with compatible Ryzen™ 9000 or 7000 Series processors, providing the bandwidth required by cutting-edge NVMe solid-state drives. NVMe RAID 0, 1, 5 and 10 support also enables a range of performance and data redundancy configurations.
Networking is equally capable, combining a Realtek® 2.5GbE LAN controller with a MediaTek Wi-Fi 6E MT7902 wireless module. Tri-band 2.4 GHz, 5 GHz and 6 GHz wireless connectivity is complemented by Bluetooth 5.3 for compatible peripherals and accessories.
Comprehensive Rear and Internal Input/Output
The rear I/O provides a versatile selection of display and peripheral connections. HDMI 2.1 supports resolutions up to 4096 × 2160 at 60 Hz, while DisplayPort 1.4 can deliver up to 3840 × 2160 at 144 Hz, depending on the capabilities of the installed processor and integrated graphics.
USB connectivity includes USB Type-C® with USB 3.2 Gen 1 support, a high-speed USB 3.2 Gen 2 Type-A connection, additional USB 3.2 Gen 1 ports and standard USB 2.0 connectivity. This broad selection accommodates everything from keyboards and mice to external storage and other high-bandwidth peripherals.
Internal connectivity expands the board’s flexibility with front-panel USB Type-C® support, multiple fan and water-cooling pump headers and addressable RGB Gen2 strip headers. GIGABYTE Q-Flash Plus further simplifies system setup by allowing compatible BIOS updates without requiring the processor to be installed.
Specifications
| Brand | GIGABYTE |
| Model Name | B850M FORCE WIFI6E |
| CPU Socket | AMD Socket AM5 |
| Supported Processors | AMD Ryzen 9000 / 8000 / 7000 Series Processors |
| Chipset | AMD B850 |
| Memory Support | 2 x DDR5 DIMM sockets, up to 128 GB, DDR5 9600(OC) to 4400 MT/s |
| Memory Architecture | Dual channel, Non-ECC Un-buffered, AMD EXPO and XMP support |
| HDMI Port | 1 x HDMI 2.1, maximum resolution 4096×2160 at 60 Hz |
| DisplayPort | 1 x DisplayPort 1.4, maximum resolution 3840×2160 at 144 Hz |
| Audio CODEC | Realtek High Definition Audio, 2/4/5.1/7.1-channel |
| Wired LAN | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless Communication | MediaTek Wi-Fi 6E MT7902 (2.4/5/6 GHz, 11ax 160MHz) |
| Bluetooth | BLUETOOTH 5.3 |
| Primary Expansion Slot | 1 x PCI Express x16 slot (PCIe 5.0 / 4.0 depending on CPU) |
| Secondary Expansion Slot | 1 x PCI Express x16 slot, running at PCIe 4.0 x4 |
| M.2 Storage Interfaces | 3 x M.2 Socket 3 connectors (type 2280 PCIe SSD support) |
| SATA Ports | 4 x SATA 6Gb/s connectors |
| RAID Support | NVMe RAID 0/1/5/10 and SATA RAID 0/1/10 |
| USB Ports (Rear & Internal) | 2 x USB Type-C, 1 x USB 3.2 Gen 2, 4 x USB 3.2 Gen 1, 6 x USB 2.0/1.1 |
| Special Features | Q-Flash, Q-Flash Plus, GIGABYTE Control Center (GCC) |
| BIOS | 1 x 256 Mbit flash, AMI UEFI BIOS |
| Supported Operating System | Windows 11 64-bit, Windows 10 64-bit |
| Form Factor | Micro ATX Form Factor (24.4cm x 24.4cm) |
| MPN | B850M FORCE WF6E |
| EAN | 4719331874308 |
Warranty
| Brand | GIGABYTE |
| Warranty Duration | 3 Years Limited Manufacturer Warranty (calculated from the date of purchase with valid proof or invoice). |
| Warranty Coverage | Covers free repair or replacement of defective internal components, factory hardware faults, circuit failure, and manufacturing defects under normal operating conditions. |
| Warranty Exclusions | Does not cover physical damage, bent CPU socket pins, liquid spills, electrical burn marks, unauthorized repairs, bios bricking via unofficial tools, or tampered serial numbers. |
| Service & Claim Procedure | Claims must be submitted through an authorized GIGABYTE service center or the original seller/distributor along with the tax invoice and original product packaging. |
