GIGABYTE A620M H Motherboard AMD AM5, Micro ATX, DDR5
£68.29 Inc.VAT
In stock
In stock
Features
- Form Factor: Micro ATX
- Socket: AMD AM5
- Chipset: AMD A620
- DDR Type: DDR5
View Delivery Options
- Free Pickup from our Central London Store.
- Standard Delivery (Free): Arrives in 2–3 working days.
- Express Delivery: Arrives in 1–2 working days.
View Payment Methods

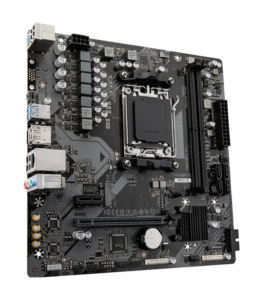

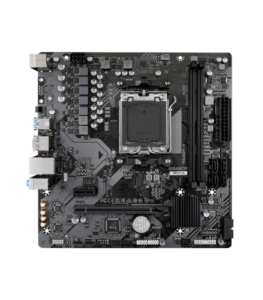

GIGABYTE A620M H AM5 DDR5 Micro ATX Motherboard
Compact AM5 Architecture and VRM Design
The GIGABYTE A620M H motherboard combines the modern AMD AM5 platform with a compact Micro ATX design. It supports AMD Ryzen 9000, 8000 and 7000 Series processors, making it a practical foundation for affordable gaming PCs, home computers, office systems and everyday desktop builds.
Built around the AMD A620 chipset, the motherboard provides essential next-generation features without unnecessary complexity. Its 5+2+2 phase digital VRM design helps deliver clean and consistent power to the processor for reliable performance during everyday multitasking, productivity and standard gaming workloads.
The board measures 23 × 22.5 cm, making it suitable for compatible Micro ATX and larger PC cases. GIGABYTE Q-Flash Plus also enables supported BIOS updates without requiring the processor, memory or graphics card to be installed.
High-Frequency DDR5 Memory and Storage
Two DDR5 DIMM sockets support up to 128 GB of dual-channel system memory, with a maximum capacity of 64 GB per slot. Compatible overclocked memory modules can operate at speeds reaching DDR5 7200 MT/s, depending on the installed processor and memory configuration.
Support for AMD EXPO and Intel XMP memory profiles helps users configure compatible high-performance memory settings. This provides a straightforward route to improved system responsiveness across everyday applications, multitasking and supported gaming workloads.
A CPU-connected M.2 connector supports PCIe 4.0 x4 NVMe solid-state drives for fast system startup, responsive applications and shorter loading times. Four SATA 6Gb/s connectors provide additional capacity for SATA SSDs and hard drives. Compatible NVMe and SATA devices support RAID 0, RAID 1 and RAID 10 configurations.
Expansion and Essential Connectivity
The main CPU-connected PCIe x16 slot supports PCIe 4.0 x16 operation with compatible AMD Ryzen 7000 and 9000 Series processors. Supported Ryzen 8000 Series processors can operate the slot at PCIe 4.0 x8 or x4, depending on the processor architecture. An additional PCIe 3.0 x1 slot accommodates compatible sound cards, network adapters and other expansion devices.

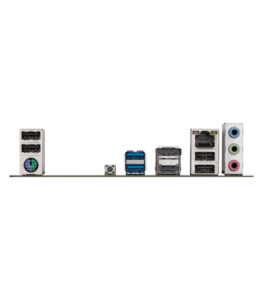

Rear connectivity includes two USB 3.2 Gen 1 Type-A ports, four USB 2.0 ports and a legacy PS/2 keyboard and mouse connection. Realtek Gigabit Ethernet provides reliable wired networking, while three audio jacks support high-definition multi-channel sound configurations.
Display connectivity includes HDMI 2.1 with resolutions up to 4096 × 2160 at 60Hz and DisplayPort 1.4 with resolutions up to 3840 × 2160 at 144Hz. Display output availability and supported resolutions depend on the integrated graphics capabilities of the installed processor.
| Brand | Gigabyte |
| Product Name | GIGABYTE A620M H Motherboard |
| CPU Socket | Socket AM5 |
| Compatible Processors | AMD Ryzen 7000 and 8000 Series Processors |
| Motherboard Chipset | AMD A620 |
| Form Factor | micro ATX (230 mm x 225 mm) |
| VRM Power Phases | 5+2+2 Phases Digital VRM |
| Memory Type | DDR5-SDRAM |
| Memory Slots | 2 x DIMM Sockets (Dual-Channel) |
| Maximum Internal Memory | Up to 96 GB (48 GB per slot) |
| Supported Memory Speed | Up to 7200 MHz (O.C.) |
| PCI Express Expansion Slots | 1 x PCIe 4.0 x16 slot, 1 x PCIe 3.0 x1 slot |
| M.2 Storage Slots | 1 x M.2 slot (PCIe 4.0 x4) |
| SATA III Connectors | 4 x SATA III (6Gb/s) connectors |
| RAID Support | RAID 0, 1, 10 |
| Rear USB Ports | 2 x USB 3.2 Gen 1 Type-A, 4 x USB 2.0 |
| HDMI Ports | 1 x HDMI 2.1 Port |
| DisplayPort Output | 1 x DisplayPort 1.4 Port |
| Ethernet LAN | Gigabit Ethernet |
| Audio Controller | 7.1 Channel High Definition Audio |
| Supported Operating Systems | Windows 10 64-bit, Windows 11 64-bit |
| Warranty Period | 3 Years |
| Package Weight | 897 g |
| MPN | A620M H |
| EAN | 4719331855512 |
| Brand | Gigabyte |
| Product Model | GIGABYTE A620M H Motherboard |
| Warranty Duration | 3 Years Warranty |
| Warranty Service Type | Limited Manufacturer Warranty (Carry-in / Repair) |
| Warranty Coverage | Covers hardware defects in materials and workmanship under normal operating conditions |
| Weight | 1 kg |
|---|---|
| Manufacturer | Gigabyte |
| Motherboard Form Factor | Micro ATX |
| Motherboard WIFI | No |
| Socket | AMD AM5 |
| DDR Type | DDR5 |
| Warranty | 3 Year |
Customer Reviews
Description
GIGABYTE A620M H AM5 DDR5 Micro ATX Motherboard
Compact AM5 Architecture and VRM Design
The GIGABYTE A620M H motherboard combines the modern AMD AM5 platform with a compact Micro ATX design. It supports AMD Ryzen 9000, 8000 and 7000 Series processors, making it a practical foundation for affordable gaming PCs, home computers, office systems and everyday desktop builds.
Built around the AMD A620 chipset, the motherboard provides essential next-generation features without unnecessary complexity. Its 5+2+2 phase digital VRM design helps deliver clean and consistent power to the processor for reliable performance during everyday multitasking, productivity and standard gaming workloads.
The board measures 23 × 22.5 cm, making it suitable for compatible Micro ATX and larger PC cases. GIGABYTE Q-Flash Plus also enables supported BIOS updates without requiring the processor, memory or graphics card to be installed.
High-Frequency DDR5 Memory and Storage
Two DDR5 DIMM sockets support up to 128 GB of dual-channel system memory, with a maximum capacity of 64 GB per slot. Compatible overclocked memory modules can operate at speeds reaching DDR5 7200 MT/s, depending on the installed processor and memory configuration.
Support for AMD EXPO and Intel XMP memory profiles helps users configure compatible high-performance memory settings. This provides a straightforward route to improved system responsiveness across everyday applications, multitasking and supported gaming workloads.
A CPU-connected M.2 connector supports PCIe 4.0 x4 NVMe solid-state drives for fast system startup, responsive applications and shorter loading times. Four SATA 6Gb/s connectors provide additional capacity for SATA SSDs and hard drives. Compatible NVMe and SATA devices support RAID 0, RAID 1 and RAID 10 configurations.
Expansion and Essential Connectivity
The main CPU-connected PCIe x16 slot supports PCIe 4.0 x16 operation with compatible AMD Ryzen 7000 and 9000 Series processors. Supported Ryzen 8000 Series processors can operate the slot at PCIe 4.0 x8 or x4, depending on the processor architecture. An additional PCIe 3.0 x1 slot accommodates compatible sound cards, network adapters and other expansion devices.
Rear connectivity includes two USB 3.2 Gen 1 Type-A ports, four USB 2.0 ports and a legacy PS/2 keyboard and mouse connection. Realtek Gigabit Ethernet provides reliable wired networking, while three audio jacks support high-definition multi-channel sound configurations.
Display connectivity includes HDMI 2.1 with resolutions up to 4096 × 2160 at 60Hz and DisplayPort 1.4 with resolutions up to 3840 × 2160 at 144Hz. Display output availability and supported resolutions depend on the integrated graphics capabilities of the installed processor.
Specifications
| Brand | Gigabyte |
| Product Name | GIGABYTE A620M H Motherboard |
| CPU Socket | Socket AM5 |
| Compatible Processors | AMD Ryzen 7000 and 8000 Series Processors |
| Motherboard Chipset | AMD A620 |
| Form Factor | micro ATX (230 mm x 225 mm) |
| VRM Power Phases | 5+2+2 Phases Digital VRM |
| Memory Type | DDR5-SDRAM |
| Memory Slots | 2 x DIMM Sockets (Dual-Channel) |
| Maximum Internal Memory | Up to 96 GB (48 GB per slot) |
| Supported Memory Speed | Up to 7200 MHz (O.C.) |
| PCI Express Expansion Slots | 1 x PCIe 4.0 x16 slot, 1 x PCIe 3.0 x1 slot |
| M.2 Storage Slots | 1 x M.2 slot (PCIe 4.0 x4) |
| SATA III Connectors | 4 x SATA III (6Gb/s) connectors |
| RAID Support | RAID 0, 1, 10 |
| Rear USB Ports | 2 x USB 3.2 Gen 1 Type-A, 4 x USB 2.0 |
| HDMI Ports | 1 x HDMI 2.1 Port |
| DisplayPort Output | 1 x DisplayPort 1.4 Port |
| Ethernet LAN | Gigabit Ethernet |
| Audio Controller | 7.1 Channel High Definition Audio |
| Supported Operating Systems | Windows 10 64-bit, Windows 11 64-bit |
| Warranty Period | 3 Years |
| Package Weight | 897 g |
| MPN | A620M H |
| EAN | 4719331855512 |
Warranty
| Brand | Gigabyte |
| Product Model | GIGABYTE A620M H Motherboard |
| Warranty Duration | 3 Years Warranty |
| Warranty Service Type | Limited Manufacturer Warranty (Carry-in / Repair) |
| Warranty Coverage | Covers hardware defects in materials and workmanship under normal operating conditions |
