GIGABYTE B650 EAGLE Motherboard AMD AM5, DDR5, PCIe 5.0 M.2
£116.65 Inc.VAT
In stock
In stock
Features
- Form Factor: ATX
- Socket: AMD AM5
- Chipset: AMD B650
- DDR Type: DDR5
View Delivery Options
- Free Pickup from our Central London Store.
- Standard Delivery (Free): Arrives in 2–3 working days.
- Express Delivery: Arrives in 1–2 working days.
View Payment Methods

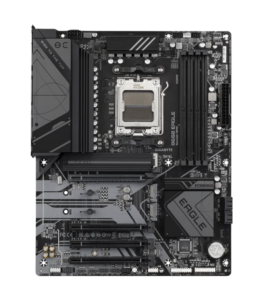

GIGABYTE B650 EAGLE AM5 DDR5 Motherboard
Power Delivery and AMD Processor Compatibility
The GIGABYTE B650 EAGLE motherboard provides a reliable foundation for modern gaming PCs, content-creation systems and high-performance desktop builds. Its AMD Socket AM5 platform supports AMD Ryzen 9000, 8000 and 7000 Series processors, offering customers a broad selection of compatible CPUs.
A robust 12+2+2 phase digital VRM design helps deliver stable and consistent power to the processor during gaming, multitasking and demanding creative workloads. The AMD B650 chipset provides access to modern memory, storage and expansion technologies while maintaining a practical balance between performance and system value.
Its full-sized ATX layout provides convenient component installation and expansion. Dedicated fan, water-cooling pump and RGB headers also allow builders to configure effective cooling and personalised lighting for compatible cases and components.

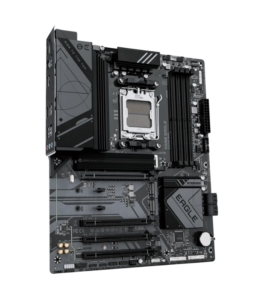

High-Speed DDR5 Memory and PCIe 5.0 Storage
Four DDR5 DIMM sockets support up to 256 GB of dual-channel system memory. Compatible overclocked memory can operate at speeds reaching DDR5 7600 MT/s, while support for AMD EXPO and Intel XMP profiles makes compatible performance memory easier to configure.
Storage connectivity includes three M.2 connectors. The primary CPU-connected M.2 connector supports PCIe 5.0 x4 NVMe SSDs when used with compatible Ryzen 9000 or 7000 Series processors. Additional CPU and chipset-connected M.2 slots support PCIe 4.0 storage for game libraries, applications and large project files.
Four SATA 6Gb/s connectors provide additional support for SATA SSDs and hard drives. Both compatible NVMe and SATA storage devices support RAID 0, RAID 1 and RAID 10, providing flexible options for storage performance, redundancy and data organisation.
Comprehensive Connectivity and Expansion
The main CPU-connected PCIe x16 slot supports PCIe 4.0 x16 operation with compatible AMD Ryzen 9000 and 7000 Series processors. Additional full-length PCIe slots operate at PCIe 3.0 x1 bandwidth, offering expansion options for sound cards, capture devices, networking adapters and other add-in hardware.

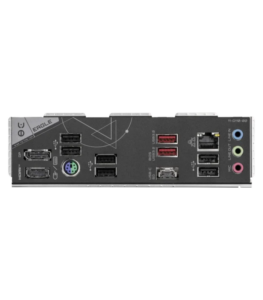

Rear connectivity includes one USB 3.2 Gen 1 Type-C port, two USB 3.2 Gen 2 Type-A ports and six USB 2.0 ports. Internal headers provide additional USB Type-C, USB 3.2 Gen 1 and USB 2.0 connections for compatible PC cases and front-panel devices.
HDMI 2.1 supports resolutions up to 4096 × 2160 at 60Hz, while DisplayPort 1.4 supports resolutions up to 3840 × 2160 at 144Hz. Display availability depends on the installed processor and its integrated graphics support. Realtek Gigabit Ethernet and high-definition multi-channel audio complete the board’s essential connectivity.
| Brand | Gigabyte |
| Product Name | GIGABYTE B650 EAGLE Motherboard |
| CPU Socket | Socket AM5 |
| Compatible Processors | AMD Ryzen 9000, 8000, and 7000 Series Processors |
| Motherboard Chipset | AMD B650 |
| Form Factor | ATX (305 mm x 244 mm) |
| VRM Power Phases | 12+2+2 Phases Digital VRM |
| Memory Type | DDR5-SDRAM |
| Memory Slots | 4 x DIMM Sockets (Dual-Channel) |
| Maximum Internal Memory | Up to 256 GB (64 GB per slot) |
| Supported Memory Speed | Up to 7600 MHz (O.C.) |
| PCI Express Expansion Slots | 1 x PCIe 4.0 x16 slot, 3 x PCIe 3.0 x16 slots |
| M.2 Storage Slots | 3 x M.2 slots (1 x PCIe 5.0, 2 x PCIe 4.0) |
| SATA III Connectors | 4 x SATA III (6Gb/s) connectors |
| RAID Support | RAID 0, 1, 10 |
| Rear USB Ports | 1 x USB 3.2 Gen 1 Type-C, 2 x USB 3.2 Gen 2 Type-A, 6 x USB 2.0 |
| HDMI Ports | 1 x HDMI 2.1 Port |
| DisplayPort Output | 1 x DisplayPort 1.4 Port |
| Ethernet LAN | Gigabit Ethernet (Realtek RTL8111H) |
| Audio Controller | Realtek ALC897 (7.1 High Definition Audio) |
| Supported Operating Systems | Windows 10 64-bit, Windows 11 64-bit |
| Warranty Period | 3 Years |
| Package Weight | 1.82 kg |
| MPN | B650 EAGLE |
| EAN | 4719331863081 |
| Brand | Gigabyte |
| Product Model | B760 DS3H WIFI6E GEN5 |
| Warranty Period | 3 Years |
| Warranty Type | Manufacturer Limited Warranty |
| Coverage Details | Covers hardware defects; excludes physical damage |
| Weight | 1.22 kg |
|---|---|
| Manufacturer | Gigabyte |
| Motherboard Form Factor | ATX |
| DDR Type | DDR5 |
| Socket | AMD AM5 |
| Warranty | 3 Year |
| Motherboard WIFI | Yes |
Customer Reviews
Description
GIGABYTE B650 EAGLE AM5 DDR5 Motherboard
Power Delivery and AMD Processor Compatibility
The GIGABYTE B650 EAGLE motherboard provides a reliable foundation for modern gaming PCs, content-creation systems and high-performance desktop builds. Its AMD Socket AM5 platform supports AMD Ryzen 9000, 8000 and 7000 Series processors, offering customers a broad selection of compatible CPUs.
A robust 12+2+2 phase digital VRM design helps deliver stable and consistent power to the processor during gaming, multitasking and demanding creative workloads. The AMD B650 chipset provides access to modern memory, storage and expansion technologies while maintaining a practical balance between performance and system value.
Its full-sized ATX layout provides convenient component installation and expansion. Dedicated fan, water-cooling pump and RGB headers also allow builders to configure effective cooling and personalised lighting for compatible cases and components.
High-Speed DDR5 Memory and PCIe 5.0 Storage
Four DDR5 DIMM sockets support up to 256 GB of dual-channel system memory. Compatible overclocked memory can operate at speeds reaching DDR5 7600 MT/s, while support for AMD EXPO and Intel XMP profiles makes compatible performance memory easier to configure.
Storage connectivity includes three M.2 connectors. The primary CPU-connected M.2 connector supports PCIe 5.0 x4 NVMe SSDs when used with compatible Ryzen 9000 or 7000 Series processors. Additional CPU and chipset-connected M.2 slots support PCIe 4.0 storage for game libraries, applications and large project files.
Four SATA 6Gb/s connectors provide additional support for SATA SSDs and hard drives. Both compatible NVMe and SATA storage devices support RAID 0, RAID 1 and RAID 10, providing flexible options for storage performance, redundancy and data organisation.
Comprehensive Connectivity and Expansion
The main CPU-connected PCIe x16 slot supports PCIe 4.0 x16 operation with compatible AMD Ryzen 9000 and 7000 Series processors. Additional full-length PCIe slots operate at PCIe 3.0 x1 bandwidth, offering expansion options for sound cards, capture devices, networking adapters and other add-in hardware.
Rear connectivity includes one USB 3.2 Gen 1 Type-C port, two USB 3.2 Gen 2 Type-A ports and six USB 2.0 ports. Internal headers provide additional USB Type-C, USB 3.2 Gen 1 and USB 2.0 connections for compatible PC cases and front-panel devices.
HDMI 2.1 supports resolutions up to 4096 × 2160 at 60Hz, while DisplayPort 1.4 supports resolutions up to 3840 × 2160 at 144Hz. Display availability depends on the installed processor and its integrated graphics support. Realtek Gigabit Ethernet and high-definition multi-channel audio complete the board’s essential connectivity.
Specifications
| Brand | Gigabyte |
| Product Name | GIGABYTE B650 EAGLE Motherboard |
| CPU Socket | Socket AM5 |
| Compatible Processors | AMD Ryzen 9000, 8000, and 7000 Series Processors |
| Motherboard Chipset | AMD B650 |
| Form Factor | ATX (305 mm x 244 mm) |
| VRM Power Phases | 12+2+2 Phases Digital VRM |
| Memory Type | DDR5-SDRAM |
| Memory Slots | 4 x DIMM Sockets (Dual-Channel) |
| Maximum Internal Memory | Up to 256 GB (64 GB per slot) |
| Supported Memory Speed | Up to 7600 MHz (O.C.) |
| PCI Express Expansion Slots | 1 x PCIe 4.0 x16 slot, 3 x PCIe 3.0 x16 slots |
| M.2 Storage Slots | 3 x M.2 slots (1 x PCIe 5.0, 2 x PCIe 4.0) |
| SATA III Connectors | 4 x SATA III (6Gb/s) connectors |
| RAID Support | RAID 0, 1, 10 |
| Rear USB Ports | 1 x USB 3.2 Gen 1 Type-C, 2 x USB 3.2 Gen 2 Type-A, 6 x USB 2.0 |
| HDMI Ports | 1 x HDMI 2.1 Port |
| DisplayPort Output | 1 x DisplayPort 1.4 Port |
| Ethernet LAN | Gigabit Ethernet (Realtek RTL8111H) |
| Audio Controller | Realtek ALC897 (7.1 High Definition Audio) |
| Supported Operating Systems | Windows 10 64-bit, Windows 11 64-bit |
| Warranty Period | 3 Years |
| Package Weight | 1.82 kg |
| MPN | B650 EAGLE |
| EAN | 4719331863081 |
Warranty
| Brand | Gigabyte |
| Product Model | B760 DS3H WIFI6E GEN5 |
| Warranty Period | 3 Years |
| Warranty Type | Manufacturer Limited Warranty |
| Coverage Details | Covers hardware defects; excludes physical damage |
