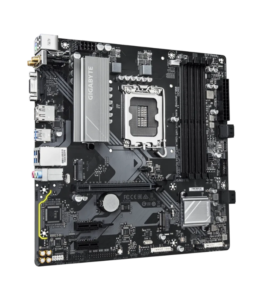

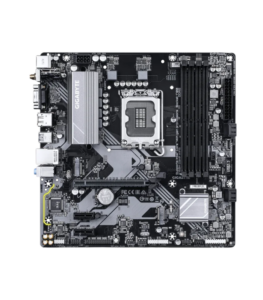

GIGABYTE B760M D3HP WIFI6 Motherboard – Intel LGA 1700 DDR5 Micro-ATX
£100.91 Inc.VAT
In stock
In stock
Features
- Form Factor: Micro ATX
- Socket: Intel LGA 1700
- Chipset: Intel B760
- DDR Type: DDR5
View Delivery Options
- Free Pickup from our Central London Store.
- Standard Delivery (Free): Arrives in 2–3 working days.
- Express Delivery: Arrives in 1–2 working days.
View Payment Methods
GIGABYTE B760M D3HP WIFI6 LGA 1700 DDR5 Motherboard
Reliable Power and Intel LGA 1700 Compatibility
The GIGABYTE B760M D3HP WIFI6 motherboard provides a modern and reliable foundation for compact Intel desktop computers. Its LGA 1700 socket supports compatible Intel Core 14th, 13th and 12th Generation processors alongside selected Intel Pentium Gold and Celeron processors, giving builders access to a broad range of options for home, business and light gaming systems.
A 4+1+1 phase digital VRM solution supplies efficient and consistent power to the processor, helping maintain smooth operation during everyday productivity, media consumption, multitasking and light gaming. Its space-efficient Micro ATX design makes it suitable for compact cases while retaining practical memory, storage and expansion capabilities.
Four DDR5 DIMM slots support up to 192GB of dual-channel system memory, with officially supported speeds reaching 5600MT/s depending on the installed processor and memory configuration. DDR5 provides the bandwidth needed for responsive multitasking, modern applications and data-intensive workloads.
Fast Storage Solutions and Modern Wireless Technology
Two PCIe 4.0 M.2 connectors enable the installation of high-speed NVMe solid-state drives. This fast storage capability helps reduce operating system start-up times, accelerate application loading and improve file-transfer performance across gaming, productivity and creative workloads.
Four SATA 6Gb/s ports provide additional connectivity for SATA SSDs and high-capacity hard drives. Support for RAID 0, RAID 1, RAID 5 and RAID 10 configurations gives users flexible options for improving storage performance, protecting important data or balancing speed with redundancy.
Integrated Wi-Fi 6 provides fast wireless networking when used with a compatible router, while Bluetooth 5.3 supports wireless accessories such as headsets, controllers, keyboards and mice. A Realtek Gigabit Ethernet port is also available for stable, low-latency wired connections during online gaming, video conferencing, streaming and large file transfers.
Advanced Cooling Controls and Flexible Hardware Expansion
Passive heatsinks positioned across important thermal areas help manage heat generated during extended workloads. This practical thermal design supports consistent motherboard operation across everyday computing, productivity applications and longer gaming sessions.
GIGABYTE Smart Fan 6 technology provides detailed cooling management through multiple CPU and system fan headers. Users can configure custom fan curves and monitor system temperatures to balance cooling performance with quieter operation. Dedicated water-cooling pump support also enables greater flexibility when planning a compatible cooling configuration.
One PCIe 4.0 x16 slot supports a compatible dedicated graphics card for gaming, creative work and GPU-accelerated applications. Two additional PCIe 3.0 x1 slots can accommodate expansion hardware such as sound cards, capture cards and additional network adapters. Together, these features provide a durable and adaptable environment for long-term desktop performance.
| Brand | Gigabyte |
| Category | Motherboards |
| Motherboard Chipset | Intel B760 Express |
| Processor Socket | LGA 1700 |
| Motherboard Form Factor | micro ATX |
| Number of Memory Slots | 4 |
| Supported Memory Types | DDR5-SDRAM |
| Maximum Internal Memory | 192 GB |
| Supported Memory Clock Speed max | 5600 MHz |
| Number of M.2 M slots | 2 |
| Number of SATA III Connectors | 4 |
| RAID Levels | 0, 1, 5, 10 |
| PCI Express x16 Gen 4.x slots | 1 |
| PCI Express x1 Gen 3.x slots | 2 |
| Top Wi-Fi Standard | Wi-Fi 6 (802.11ax) |
| Bluetooth Version | 5.3 |
| Ethernet Interface Type | Gigabit Ethernet |
| Audio Chip | Realtek ALC897 |
| Audio Output Channels | 7.1 channels |
| hdmi ports quantity | 1 |
| displayport quantity | 1 |
| VGA D-Sub ports quantity | 1 |
| USB 3.2 Gen 1 Type-A ports quantity | 3 |
| mpn | B760M D3HP WIFI6 |
| ean | 4719331867638 |
| Brand | Gigabyte |
| Warranty Period | 3 year(s) |
| Warranty Type | Manufacturer Limited Warranty |
| Coverage | Parts and Labor |
| Service Location | Authorized Service Centers |
| Weight | 1.2 kg |
|---|---|
| Manufacturer | Gigabyte |
| Motherboard Form Factor | Micro ATX |
| Motherboard WIFI | Yes |
| Socket | LGA 1700 |
| DDR Type | DDR5 |
| Warranty | 3 Year |
Customer Reviews
Description
GIGABYTE B760M D3HP WIFI6 LGA 1700 DDR5 Motherboard
Reliable Power and Intel LGA 1700 Compatibility
The GIGABYTE B760M D3HP WIFI6 motherboard provides a modern and reliable foundation for compact Intel desktop computers. Its LGA 1700 socket supports compatible Intel Core 14th, 13th and 12th Generation processors alongside selected Intel Pentium Gold and Celeron processors, giving builders access to a broad range of options for home, business and light gaming systems.
A 4+1+1 phase digital VRM solution supplies efficient and consistent power to the processor, helping maintain smooth operation during everyday productivity, media consumption, multitasking and light gaming. Its space-efficient Micro ATX design makes it suitable for compact cases while retaining practical memory, storage and expansion capabilities.
Four DDR5 DIMM slots support up to 192GB of dual-channel system memory, with officially supported speeds reaching 5600MT/s depending on the installed processor and memory configuration. DDR5 provides the bandwidth needed for responsive multitasking, modern applications and data-intensive workloads.
Fast Storage Solutions and Modern Wireless Technology
Two PCIe 4.0 M.2 connectors enable the installation of high-speed NVMe solid-state drives. This fast storage capability helps reduce operating system start-up times, accelerate application loading and improve file-transfer performance across gaming, productivity and creative workloads.
Four SATA 6Gb/s ports provide additional connectivity for SATA SSDs and high-capacity hard drives. Support for RAID 0, RAID 1, RAID 5 and RAID 10 configurations gives users flexible options for improving storage performance, protecting important data or balancing speed with redundancy.
Integrated Wi-Fi 6 provides fast wireless networking when used with a compatible router, while Bluetooth 5.3 supports wireless accessories such as headsets, controllers, keyboards and mice. A Realtek Gigabit Ethernet port is also available for stable, low-latency wired connections during online gaming, video conferencing, streaming and large file transfers.
Advanced Cooling Controls and Flexible Hardware Expansion
Passive heatsinks positioned across important thermal areas help manage heat generated during extended workloads. This practical thermal design supports consistent motherboard operation across everyday computing, productivity applications and longer gaming sessions.
GIGABYTE Smart Fan 6 technology provides detailed cooling management through multiple CPU and system fan headers. Users can configure custom fan curves and monitor system temperatures to balance cooling performance with quieter operation. Dedicated water-cooling pump support also enables greater flexibility when planning a compatible cooling configuration.
One PCIe 4.0 x16 slot supports a compatible dedicated graphics card for gaming, creative work and GPU-accelerated applications. Two additional PCIe 3.0 x1 slots can accommodate expansion hardware such as sound cards, capture cards and additional network adapters. Together, these features provide a durable and adaptable environment for long-term desktop performance.
Specifications
| Brand | Gigabyte |
| Category | Motherboards |
| Motherboard Chipset | Intel B760 Express |
| Processor Socket | LGA 1700 |
| Motherboard Form Factor | micro ATX |
| Number of Memory Slots | 4 |
| Supported Memory Types | DDR5-SDRAM |
| Maximum Internal Memory | 192 GB |
| Supported Memory Clock Speed max | 5600 MHz |
| Number of M.2 M slots | 2 |
| Number of SATA III Connectors | 4 |
| RAID Levels | 0, 1, 5, 10 |
| PCI Express x16 Gen 4.x slots | 1 |
| PCI Express x1 Gen 3.x slots | 2 |
| Top Wi-Fi Standard | Wi-Fi 6 (802.11ax) |
| Bluetooth Version | 5.3 |
| Ethernet Interface Type | Gigabit Ethernet |
| Audio Chip | Realtek ALC897 |
| Audio Output Channels | 7.1 channels |
| hdmi ports quantity | 1 |
| displayport quantity | 1 |
| VGA D-Sub ports quantity | 1 |
| USB 3.2 Gen 1 Type-A ports quantity | 3 |
| mpn | B760M D3HP WIFI6 |
| ean | 4719331867638 |
Warranty
| Brand | Gigabyte |
| Warranty Period | 3 year(s) |
| Warranty Type | Manufacturer Limited Warranty |
| Coverage | Parts and Labor |
| Service Location | Authorized Service Centers |
