GIGABYTE B850M D3HP Motherboard AMD AM5, Micro ATX, DDR5
£119.50 Inc.VAT
In stock
In stock
Features
- Form Factor: Micro ATX
- Socket: AMD AM5
- Chipset: AMD B850
- DDR Type: DDR5
View Delivery Options
- Free Pickup from our Central London Store.
- Standard Delivery (Free): Arrives in 2–3 working days.
- Express Delivery: Arrives in 1–2 working days.
View Payment Methods

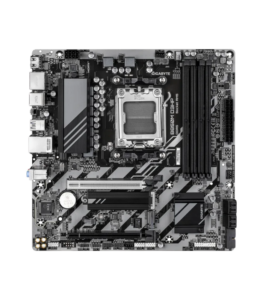

GIGABYTE B850M D3HP AM5 DDR5 Micro ATX Motherboard
Next-Generation AM5 Support and Power Architecture
The GIGABYTE B850M D3HP motherboard provides a modern foundation for mainstream gaming PCs, content-creation systems and powerful everyday desktop builds. Its AMD AM5 socket supports AMD Ryzen 9000, 8000 and 7000 Series processors, giving customers a broad choice of compatible CPUs.
Built around the AMD B850 chipset, this motherboard offers access to current DDR5 memory, PCIe 5.0 expansion and high-speed NVMe storage technologies. Its 5+2+2 phase digital VRM design helps provide clean and consistent processor power for gaming, multitasking and demanding multi-threaded workloads.
The compact 24.4 × 24.4 cm Micro ATX form factor fits compatible compact and full-sized PC cases. Fan, water-cooling pump and RGB headers provide useful flexibility for system cooling and visual customisation, while Q-Flash Plus simplifies supported BIOS updates.

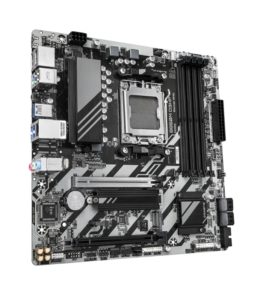

Advanced DDR5 Memory and Storage Acceleration
Four DDR5 DIMM sockets support up to 256 GB of dual-channel system memory, with a maximum supported capacity of 64 GB per slot. Compatible overclocked memory modules can operate at speeds reaching DDR5 8200 MT/s, depending on the installed processor and memory configuration.
AMD EXPO and Intel XMP memory profile support helps simplify the configuration of compatible high-performance modules. This provides greater memory bandwidth for gaming, content creation, multitasking and other data-intensive desktop workloads.
Two CPU-connected M.2 connectors provide high-speed NVMe storage. The primary connector supports PCIe 5.0 x4 SSDs with compatible Ryzen 9000 and 7000 Series processors, while the secondary connector supports PCIe 4.0 storage. Four SATA 6Gb/s ports provide additional capacity for SATA SSDs and hard drives.
NVMe storage supports RAID 0, RAID 1, RAID 5 and RAID 10, although RAID 5 requires an AMD Ryzen 9000 Series processor. SATA storage supports RAID 0, RAID 1 and RAID 10 configurations.
PCIe 5.0 Expansion and Flexible I/O Connectivity
The main CPU-connected PCIe x16 slot supports PCIe 5.0 x16 operation with compatible AMD Ryzen 9000 and 7000 Series processors, providing high bandwidth for modern discrete graphics cards. Ryzen 8000 Series processors operate the slot at PCIe 4.0 x8 or x4, depending on the processor architecture.
A second full-length expansion slot operates at PCIe 3.0 x4 bandwidth through the chipset, making it suitable for compatible capture cards, storage adapters, network cards and other expansion devices.

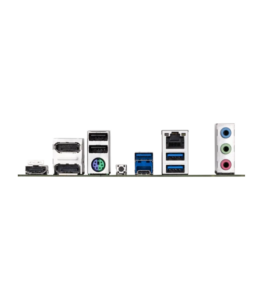

Rear connectivity includes one USB 3.2 Gen 1 Type-C port, three USB 3.2 Gen 1 Type-A ports and two USB 2.0 ports. Realtek Gigabit Ethernet provides reliable wired networking, while three audio jacks support high-definition multi-channel sound configurations.
Display connectivity includes one HDMI 2.1 output and two DisplayPort 1.4 outputs. HDMI supports resolutions up to 4096 × 2160 at 60Hz, while each DisplayPort supports up to 3840 × 2160 at 144Hz. Up to three displays can be supported simultaneously when paired with a compatible processor featuring integrated Radeon graphics.
| Brand | Gigabyte |
| Product Name | GIGABYTE B850M D3HP Motherboard |
| CPU Socket | Socket AM5 |
| Compatible Processors | AMD Ryzen 7000, 8000, and 9000 Series Processors |
| Motherboard Chipset | AMD B850 |
| Form Factor | micro ATX (244 mm x 244 mm) |
| VRM Power Phases | 5+2+2 Phases Digital VRM |
| Memory Type | DDR5-SDRAM |
| Memory Slots | 4 x DIMM Sockets (Dual-Channel) |
| Maximum Internal Memory | Up to 256 GB (64 GB per slot) |
| Supported Memory Speed | Up to 8200 MHz (O.C.) |
| PCI Express Expansion Slots | 1 x PCIe 5.0 x16 slot |
| M.2 Storage Slots | 2 x M.2 (1 x PCIe 5.0 x4, 1 x PCIe 4.0 x4) |
| SATA III Connectors | 4 x SATA III (6Gb/s) connectors |
| RAID Support | RAID 0, 1, 10 |
| Rear USB Ports | 1 x USB 3.2 Gen 1 Type-C, 3 x USB 3.2 Gen 1 Type-A, 2 x USB 2.0 |
| HDMI Ports | 1 x HDMI 2.1 Port |
| DisplayPort Output | 1 x DisplayPort 2.1 Port |
| Ethernet LAN | Gigabit Ethernet |
| Audio Controller | Realtek ALC897 7.1 Channel HD Audio |
| Supported Operating Systems | Windows 10 64-bit, Windows 11 64-bit |
| Warranty Period | 3 Years |
| Weight | 1.3 kg |
| MPN | B850M D3HP |
| EAN | 4719331867058 |
| Brand | Gigabyte |
| Product Model | GIGABYTE A620M H Motherboard |
| Warranty Duration | 3 Years Warranty |
| Warranty Service Type | Limited Manufacturer Warranty (Carry-in / Repair) |
| Warranty Coverage | Covers hardware defects in materials and workmanship under normal operating conditions |
| Weight | 3201590008000700020152220154201-16201--201-2215042012012 kg |
|---|---|
| Manufacturer | Gigabyte |
| Motherboard Form Factor | Micro ATX |
| Motherboard WIFI | Yes |
| Socket | AMD AM5 |
| DDR Type | DDR5 |
| Warranty | 3 Year |
Customer Reviews
Description
GIGABYTE B850M D3HP AM5 DDR5 Micro ATX Motherboard
Next-Generation AM5 Support and Power Architecture
The GIGABYTE B850M D3HP motherboard provides a modern foundation for mainstream gaming PCs, content-creation systems and powerful everyday desktop builds. Its AMD AM5 socket supports AMD Ryzen 9000, 8000 and 7000 Series processors, giving customers a broad choice of compatible CPUs.
Built around the AMD B850 chipset, this motherboard offers access to current DDR5 memory, PCIe 5.0 expansion and high-speed NVMe storage technologies. Its 5+2+2 phase digital VRM design helps provide clean and consistent processor power for gaming, multitasking and demanding multi-threaded workloads.
The compact 24.4 × 24.4 cm Micro ATX form factor fits compatible compact and full-sized PC cases. Fan, water-cooling pump and RGB headers provide useful flexibility for system cooling and visual customisation, while Q-Flash Plus simplifies supported BIOS updates.
Advanced DDR5 Memory and Storage Acceleration
Four DDR5 DIMM sockets support up to 256 GB of dual-channel system memory, with a maximum supported capacity of 64 GB per slot. Compatible overclocked memory modules can operate at speeds reaching DDR5 8200 MT/s, depending on the installed processor and memory configuration.
AMD EXPO and Intel XMP memory profile support helps simplify the configuration of compatible high-performance modules. This provides greater memory bandwidth for gaming, content creation, multitasking and other data-intensive desktop workloads.
Two CPU-connected M.2 connectors provide high-speed NVMe storage. The primary connector supports PCIe 5.0 x4 SSDs with compatible Ryzen 9000 and 7000 Series processors, while the secondary connector supports PCIe 4.0 storage. Four SATA 6Gb/s ports provide additional capacity for SATA SSDs and hard drives.
NVMe storage supports RAID 0, RAID 1, RAID 5 and RAID 10, although RAID 5 requires an AMD Ryzen 9000 Series processor. SATA storage supports RAID 0, RAID 1 and RAID 10 configurations.
PCIe 5.0 Expansion and Flexible I/O Connectivity
The main CPU-connected PCIe x16 slot supports PCIe 5.0 x16 operation with compatible AMD Ryzen 9000 and 7000 Series processors, providing high bandwidth for modern discrete graphics cards. Ryzen 8000 Series processors operate the slot at PCIe 4.0 x8 or x4, depending on the processor architecture.
A second full-length expansion slot operates at PCIe 3.0 x4 bandwidth through the chipset, making it suitable for compatible capture cards, storage adapters, network cards and other expansion devices.
Rear connectivity includes one USB 3.2 Gen 1 Type-C port, three USB 3.2 Gen 1 Type-A ports and two USB 2.0 ports. Realtek Gigabit Ethernet provides reliable wired networking, while three audio jacks support high-definition multi-channel sound configurations.
Display connectivity includes one HDMI 2.1 output and two DisplayPort 1.4 outputs. HDMI supports resolutions up to 4096 × 2160 at 60Hz, while each DisplayPort supports up to 3840 × 2160 at 144Hz. Up to three displays can be supported simultaneously when paired with a compatible processor featuring integrated Radeon graphics.
Specifications
| Brand | Gigabyte |
| Product Name | GIGABYTE B850M D3HP Motherboard |
| CPU Socket | Socket AM5 |
| Compatible Processors | AMD Ryzen 7000, 8000, and 9000 Series Processors |
| Motherboard Chipset | AMD B850 |
| Form Factor | micro ATX (244 mm x 244 mm) |
| VRM Power Phases | 5+2+2 Phases Digital VRM |
| Memory Type | DDR5-SDRAM |
| Memory Slots | 4 x DIMM Sockets (Dual-Channel) |
| Maximum Internal Memory | Up to 256 GB (64 GB per slot) |
| Supported Memory Speed | Up to 8200 MHz (O.C.) |
| PCI Express Expansion Slots | 1 x PCIe 5.0 x16 slot |
| M.2 Storage Slots | 2 x M.2 (1 x PCIe 5.0 x4, 1 x PCIe 4.0 x4) |
| SATA III Connectors | 4 x SATA III (6Gb/s) connectors |
| RAID Support | RAID 0, 1, 10 |
| Rear USB Ports | 1 x USB 3.2 Gen 1 Type-C, 3 x USB 3.2 Gen 1 Type-A, 2 x USB 2.0 |
| HDMI Ports | 1 x HDMI 2.1 Port |
| DisplayPort Output | 1 x DisplayPort 2.1 Port |
| Ethernet LAN | Gigabit Ethernet |
| Audio Controller | Realtek ALC897 7.1 Channel HD Audio |
| Supported Operating Systems | Windows 10 64-bit, Windows 11 64-bit |
| Warranty Period | 3 Years |
| Weight | 1.3 kg |
| MPN | B850M D3HP |
| EAN | 4719331867058 |
Warranty
| Brand | Gigabyte |
| Product Model | GIGABYTE A620M H Motherboard |
| Warranty Duration | 3 Years Warranty |
| Warranty Service Type | Limited Manufacturer Warranty (Carry-in / Repair) |
| Warranty Coverage | Covers hardware defects in materials and workmanship under normal operating conditions |
