GIGABYTE H810M GAMING WIFI6 Motherboard – Intel LGA 1851 DDR5
£101.16 Inc.VAT
In stock
In stock
Features
- Form Factor: Micro ATX
- Socket: Intel LGA 1851
- Chipset: Intel H810
- DDR Type: DDR5
View Delivery Options
- Free Pickup from our Central London Store.
- Standard Delivery (Free): Arrives in 2–3 working days.
- Express Delivery: Arrives in 1–2 working days.
View Payment Methods

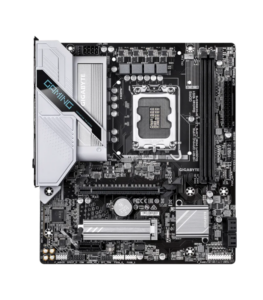

GIGABYTE H810M GAMING WIFI6 LGA 1851 DDR5 Motherboard
Next-Generation Power and Intel LGA 1851 Compatibility
The GIGABYTE H810M GAMING WIFI6 motherboard provides a modern foundation for compact Intel gaming and everyday desktop computers. Built around the Intel H810 chipset and LGA 1851 socket, it supports compatible Intel Core Ultra Series 2 processors, providing access to Intel’s latest desktop platform for gaming, content consumption, productivity and daily computing.
Its 4+1+2 phase digital VRM power design supplies clean and efficient power to the processor, helping maintain consistent performance across gaming, media playback, office applications and multitasking. The space-efficient Micro ATX form factor is suitable for compact cases while retaining the essential features needed for a responsive modern desktop system.
Two DDR5 DIMM slots support up to 128GB of dual-channel system memory, with memory speeds reaching up to 6400MT/s depending on the processor, installed modules and system configuration. DDR5 bandwidth helps deliver fast response times and fluid multitasking across games, creative software and demanding everyday applications.

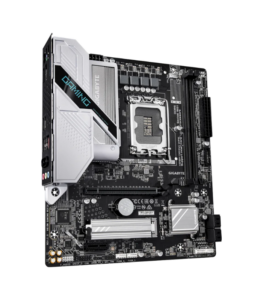

High-Speed PCIe 4.0 Storage and Modern Wireless Connectivity
A PCIe 4.0 M.2 connector supports compatible 2280 NVMe solid-state drives, providing fast storage performance for rapid system start-up, shorter game and application loading times and responsive file transfers. The compact M.2 design also enables high-speed storage without requiring additional power or data cables.
Four SATA 6Gb/s ports provide additional connectivity for SATA SSDs and high-capacity hard drives. Support for RAID 0, RAID 1, RAID 5 and RAID 10 configurations gives users flexible options for improving storage speed, protecting important data or balancing performance with redundancy.
Integrated Wi-Fi 6 delivers fast and dependable wireless networking when connected to compatible equipment, even in busy network environments. Bluetooth 5.3 supports wireless accessories such as gaming controllers, headsets, keyboards and mice. For wired connections, Realtek 2.5GbE LAN provides speeds of up to 2.5Gbps for low-latency gaming, high-quality streaming and rapid network file transfers.
Enhanced Thermal Controls and Hardware Stability
Passive VRM heatsinks help draw heat away from essential power-delivery components, supporting stable operation during extended gaming, productivity and media workloads. This efficient thermal design helps maintain reliable performance inside both compact and full-sized desktop cases.
Smart Fan controls provide precise cooling management through multiple CPU and system fan headers. Users can configure fan behaviour to prioritise quieter operation or stronger airflow according to system temperatures and workload demands. Dedicated water-cooling pump support also provides added flexibility for compatible liquid-cooling configurations.
Integrated hardware monitoring tracks important operating conditions including fan speeds, internal temperatures and system voltages. These monitoring capabilities make it easier to fine-tune cooling performance, detect unusual behaviour and maintain a stable operating environment for critical PC components over long-term use.
| Brand | Gigabyte |
| Category | Motherboards |
| Motherboard Chipset | Intel H810 |
| Processor Socket | LGA 1851 |
| Motherboard Form Factor | micro ATX |
| Number of Memory Slots | 2 |
| Supported Memory Types | DDR5-SDRAM |
| Maximum Internal Memory | 128 GB |
| Supported Memory Clock Speed max | 6400 MHz |
| Number of M.2 M slots | 1 |
| Number of SATA III Connectors | 4 |
| RAID Levels | 0, 1, 5, 10 |
| PCI Express x16 Gen 4.x slots | 1 |
| Top Wi-Fi Standard | Wi-Fi 6 (802.11ax) |
| Bluetooth Version | 5.3 |
| Ethernet Interface Type | 2.5 Gigabit Ethernet |
| LAN Controller | Realtek RTL8125 |
| Audio Chip | Realtek ALC897 |
| Audio Output Channels | 7.1 channels |
| hdmi ports quantity | 1 |
| displayports quantity | 1 |
| USB 3.2 Gen 1 Type-A ports quantity | 1 |
| USB 2.0 ports quantity | 5 |
| mpn | H810M GAMING WIFI6 |
| ean | 4719331869090 |
| Brand | Gigabyte |
| Warranty Period | 3 year(s) |
| Warranty Type | Manufacturer Limited Warranty |
| Coverage | Parts and Labor |
| Service Location | Authorized Service Centers |
| Weight | 1 kg |
|---|---|
| Manufacturer | Gigabyte |
| Motherboard Form Factor | Micro ATX |
| Motherboard WIFI | Yes |
| Socket | Intel 1851 |
| DDR Type | DDR5 |
| Warranty | 3 Year |
Customer Reviews
Description
GIGABYTE H810M GAMING WIFI6 LGA 1851 DDR5 Motherboard
Next-Generation Power and Intel LGA 1851 Compatibility
The GIGABYTE H810M GAMING WIFI6 motherboard provides a modern foundation for compact Intel gaming and everyday desktop computers. Built around the Intel H810 chipset and LGA 1851 socket, it supports compatible Intel Core Ultra Series 2 processors, providing access to Intel’s latest desktop platform for gaming, content consumption, productivity and daily computing.
Its 4+1+2 phase digital VRM power design supplies clean and efficient power to the processor, helping maintain consistent performance across gaming, media playback, office applications and multitasking. The space-efficient Micro ATX form factor is suitable for compact cases while retaining the essential features needed for a responsive modern desktop system.
Two DDR5 DIMM slots support up to 128GB of dual-channel system memory, with memory speeds reaching up to 6400MT/s depending on the processor, installed modules and system configuration. DDR5 bandwidth helps deliver fast response times and fluid multitasking across games, creative software and demanding everyday applications.
High-Speed PCIe 4.0 Storage and Modern Wireless Connectivity
A PCIe 4.0 M.2 connector supports compatible 2280 NVMe solid-state drives, providing fast storage performance for rapid system start-up, shorter game and application loading times and responsive file transfers. The compact M.2 design also enables high-speed storage without requiring additional power or data cables.
Four SATA 6Gb/s ports provide additional connectivity for SATA SSDs and high-capacity hard drives. Support for RAID 0, RAID 1, RAID 5 and RAID 10 configurations gives users flexible options for improving storage speed, protecting important data or balancing performance with redundancy.
Integrated Wi-Fi 6 delivers fast and dependable wireless networking when connected to compatible equipment, even in busy network environments. Bluetooth 5.3 supports wireless accessories such as gaming controllers, headsets, keyboards and mice. For wired connections, Realtek 2.5GbE LAN provides speeds of up to 2.5Gbps for low-latency gaming, high-quality streaming and rapid network file transfers.
Enhanced Thermal Controls and Hardware Stability
Passive VRM heatsinks help draw heat away from essential power-delivery components, supporting stable operation during extended gaming, productivity and media workloads. This efficient thermal design helps maintain reliable performance inside both compact and full-sized desktop cases.
Smart Fan controls provide precise cooling management through multiple CPU and system fan headers. Users can configure fan behaviour to prioritise quieter operation or stronger airflow according to system temperatures and workload demands. Dedicated water-cooling pump support also provides added flexibility for compatible liquid-cooling configurations.
Integrated hardware monitoring tracks important operating conditions including fan speeds, internal temperatures and system voltages. These monitoring capabilities make it easier to fine-tune cooling performance, detect unusual behaviour and maintain a stable operating environment for critical PC components over long-term use.
Specifications
| Brand | Gigabyte |
| Category | Motherboards |
| Motherboard Chipset | Intel H810 |
| Processor Socket | LGA 1851 |
| Motherboard Form Factor | micro ATX |
| Number of Memory Slots | 2 |
| Supported Memory Types | DDR5-SDRAM |
| Maximum Internal Memory | 128 GB |
| Supported Memory Clock Speed max | 6400 MHz |
| Number of M.2 M slots | 1 |
| Number of SATA III Connectors | 4 |
| RAID Levels | 0, 1, 5, 10 |
| PCI Express x16 Gen 4.x slots | 1 |
| Top Wi-Fi Standard | Wi-Fi 6 (802.11ax) |
| Bluetooth Version | 5.3 |
| Ethernet Interface Type | 2.5 Gigabit Ethernet |
| LAN Controller | Realtek RTL8125 |
| Audio Chip | Realtek ALC897 |
| Audio Output Channels | 7.1 channels |
| hdmi ports quantity | 1 |
| displayports quantity | 1 |
| USB 3.2 Gen 1 Type-A ports quantity | 1 |
| USB 2.0 ports quantity | 5 |
| mpn | H810M GAMING WIFI6 |
| ean | 4719331869090 |
Warranty
| Brand | Gigabyte |
| Warranty Period | 3 year(s) |
| Warranty Type | Manufacturer Limited Warranty |
| Coverage | Parts and Labor |
| Service Location | Authorized Service Centers |
