Gigabyte X870E AORUS ELITE X3D Motherboard AM5, DDR5, Wi-Fi 7
£309.97 Inc.VAT
In stock
In stock
Features
- Form Factor: ATX
- Socket: AMD AM5
- Chipset: AMD X870E
- DDR Type: DDR5
View Delivery Options
- Free Pickup from our Central London Store.
- Standard Delivery (Free): Arrives in 2–3 working days.
- Express Delivery: Arrives in 1–2 working days.
View Payment Methods

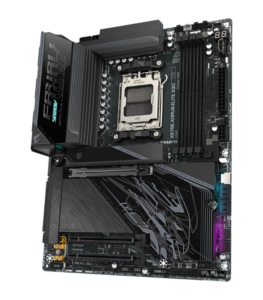

GIGABYTE X870E AORUS ELITE X3D AM5 Motherboard
Performance and Next-Generation Connectivity
The GIGABYTE X870E AORUS ELITE X3D motherboard provides a powerful foundation for modern gaming PCs, content-creation systems and high-performance desktop builds. Built around the advanced AMD X870E chipset and Socket AM5 platform, it supports AMD Ryzen 9000, 8000 and 7000 Series processors. Four DDR5 DIMM sockets accommodate up to 256 GB of dual-channel system memory, with overclocked speeds reaching DDR5 9000 MT/s. Support for AMD EXPO and Intel XMP memory profiles also makes compatible memory performance easier to configure.
A CPU-connected PCIe 5.0 x16 slot provides high-bandwidth expansion for compatible graphics cards and NVMe storage devices. The motherboard also includes additional PCIe 4.0 x4 and PCIe 3.0 x2 expansion slots, providing flexibility for capture cards, storage adapters and other add-in components. Supported PCIe modes can vary according to the installed Ryzen processor.
Superior Storage and Expansion Options
High-speed storage support includes four M.2 connectors and four SATA 6Gb/s ports. The CPU-connected M2A_CPU connector supports PCIe 5.0 x4 NVMe drives when paired with a compatible Ryzen processor, while the second CPU-connected connector can also support PCIe 5.0 storage with selected Ryzen 9000 and 7000 Series CPUs. Two additional chipset-connected M.2 slots support PCIe 4.0 x4 drives, giving users substantial capacity for fast game libraries, creative applications and large project files.
NVMe storage supports RAID 0, RAID 1, RAID 5 and RAID 10 configurations, although NVMe RAID 5 requires an AMD Ryzen 9000 Series processor. SATA storage supports RAID 0, RAID 1 and RAID 10. This combination of next-generation M.2 connectivity and traditional SATA support makes the board suitable for performance-focused systems requiring both speed and expandable storage capacity.
Comprehensive High-Speed I/O Options

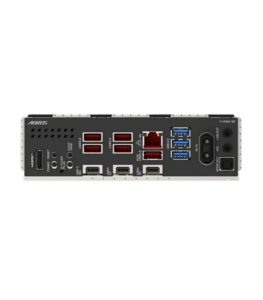

The rear I/O panel offers extensive connectivity for gaming peripherals, external storage and professional equipment. Two USB4 Type-C ports provide bandwidth of up to 40Gbps and support DisplayPort 1.4 video output with compatible processors. Connectivity also includes five rear USB 3.2 Gen 2 Type-A ports, one USB 3.2 Gen 2 Type-C port and three USB 3.2 Gen 1 ports. An internal USB 3.2 Gen 2×2 Type-C header supports up to 65W Power Delivery 3.0 and Quick Charge 4+ for compatible front-panel connections.
Display connectivity includes rear HDMI 2.1 and an internal front HDMI connector, with actual graphics support depending on the installed processor. The motherboard also features Realtek 5GbE wired networking, Qualcomm Wi-Fi 7, Bluetooth 5.4 and Realtek ALC1220 high-definition audio. Rear power, reset, Clear CMOS and Q-Flash Plus buttons provide convenient system control and make firmware maintenance easier during building or troubleshooting.
| Brand | Gigabyte |
| Model Name | Gigabyte X870E AORUS ELITE X3D |
| CPU Socket | AMD Socket AM5 |
| Supported Processors | AMD Ryzen 9000, 8000, and 7000 Series Processors |
| Chipset | AMD X870E |
| Form Factor | ATX (30.5cm x 24.4cm) |
| Memory Slots | 4 x DDR5 DIMM Sockets |
| Maximum Memory Capacity | Up to 256 GB (64 GB single DIMM capacity) |
| Memory Support Speed | Up to DDR5 9000(O.C.) / AMD EXPO and XMP Support |
| PCIe Expansion Slots | 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16 (x4 mode), 1 x PCIe 3.0 x16 (x2 mode) |
| M.2 Storage Slots | 4 x M.2 Sockets (PCIe 5.0 and PCIe 4.0 support) |
| SATA Ports | 4 x SATA 6Gb/s Connectors |
| RAID Support | RAID 0, 1, 5, 10 (NVMe) / RAID 0, 1, 10 (SATA) |
| USB4 Ports | 2 x USB4 USB Type-C ports (DisplayPort supported) |
| Rear USB Ports | 5 x USB 3.2 Gen 2 Type-A, 1 x USB 3.2 Gen 2 Type-C, 3 x USB 3.2 Gen 1 |
| HDMI Ports | 1 x Rear HDMI 2.1 Port, 1 x Front Internal HDMI Header |
| DisplayPort Output | Supported via USB4 Type-C Ports (up to 3840×2160@240 Hz) |
| Ethernet LAN | Realtek 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless LAN and Bluetooth | Qualcomm Wi-Fi 7 QCNCM865 (2.4/5/6 GHz, 320MHz) + Bluetooth 5.4 |
| Audio Codec | Realtek ALC1220 CODEC High Definition Audio |
| Fast Charging Support | USB Type-C Front Header with 65W PD 3.0 / QC 4+ |
| BIOS Features | 512 Mbit flash, AMI UEFI BIOS, Q-Flash Plus support |
| Operating System Support | Windows 11 64-bit |
| MPN | X870E AORUS ELITE X3D |
| EAN | 4719331876470 |
| Brand | Gigabyte / AORUS |
| Product Model | X870E AORUS ELITE X3D |
| Warranty Duration | 3 Years Limited Warranty |
| Coverage Type | Local Hardware Repair / Replacement |
| Key Conditions | Valid proof of purchase required; terms vary by region |
| Weight | 3 kg |
|---|---|
| Manufacturer | Gigabyte |
| Socket | AMD AM5 |
| Motherboard Form Factor | ATX |
| DDR Type | DDR5 |
| Warranty | 3 Year |
| Motherboard WIFI | Yes |
Customer Reviews
Description
GIGABYTE X870E AORUS ELITE X3D AM5 Motherboard
Performance and Next-Generation Connectivity
The GIGABYTE X870E AORUS ELITE X3D motherboard provides a powerful foundation for modern gaming PCs, content-creation systems and high-performance desktop builds. Built around the advanced AMD X870E chipset and Socket AM5 platform, it supports AMD Ryzen 9000, 8000 and 7000 Series processors. Four DDR5 DIMM sockets accommodate up to 256 GB of dual-channel system memory, with overclocked speeds reaching DDR5 9000 MT/s. Support for AMD EXPO and Intel XMP memory profiles also makes compatible memory performance easier to configure.
A CPU-connected PCIe 5.0 x16 slot provides high-bandwidth expansion for compatible graphics cards and NVMe storage devices. The motherboard also includes additional PCIe 4.0 x4 and PCIe 3.0 x2 expansion slots, providing flexibility for capture cards, storage adapters and other add-in components. Supported PCIe modes can vary according to the installed Ryzen processor.
Superior Storage and Expansion Options
High-speed storage support includes four M.2 connectors and four SATA 6Gb/s ports. The CPU-connected M2A_CPU connector supports PCIe 5.0 x4 NVMe drives when paired with a compatible Ryzen processor, while the second CPU-connected connector can also support PCIe 5.0 storage with selected Ryzen 9000 and 7000 Series CPUs. Two additional chipset-connected M.2 slots support PCIe 4.0 x4 drives, giving users substantial capacity for fast game libraries, creative applications and large project files.
NVMe storage supports RAID 0, RAID 1, RAID 5 and RAID 10 configurations, although NVMe RAID 5 requires an AMD Ryzen 9000 Series processor. SATA storage supports RAID 0, RAID 1 and RAID 10. This combination of next-generation M.2 connectivity and traditional SATA support makes the board suitable for performance-focused systems requiring both speed and expandable storage capacity.
Comprehensive High-Speed I/O Options
The rear I/O panel offers extensive connectivity for gaming peripherals, external storage and professional equipment. Two USB4 Type-C ports provide bandwidth of up to 40Gbps and support DisplayPort 1.4 video output with compatible processors. Connectivity also includes five rear USB 3.2 Gen 2 Type-A ports, one USB 3.2 Gen 2 Type-C port and three USB 3.2 Gen 1 ports. An internal USB 3.2 Gen 2×2 Type-C header supports up to 65W Power Delivery 3.0 and Quick Charge 4+ for compatible front-panel connections.
Display connectivity includes rear HDMI 2.1 and an internal front HDMI connector, with actual graphics support depending on the installed processor. The motherboard also features Realtek 5GbE wired networking, Qualcomm Wi-Fi 7, Bluetooth 5.4 and Realtek ALC1220 high-definition audio. Rear power, reset, Clear CMOS and Q-Flash Plus buttons provide convenient system control and make firmware maintenance easier during building or troubleshooting.
Specifications
| Brand | Gigabyte |
| Model Name | Gigabyte X870E AORUS ELITE X3D |
| CPU Socket | AMD Socket AM5 |
| Supported Processors | AMD Ryzen 9000, 8000, and 7000 Series Processors |
| Chipset | AMD X870E |
| Form Factor | ATX (30.5cm x 24.4cm) |
| Memory Slots | 4 x DDR5 DIMM Sockets |
| Maximum Memory Capacity | Up to 256 GB (64 GB single DIMM capacity) |
| Memory Support Speed | Up to DDR5 9000(O.C.) / AMD EXPO and XMP Support |
| PCIe Expansion Slots | 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16 (x4 mode), 1 x PCIe 3.0 x16 (x2 mode) |
| M.2 Storage Slots | 4 x M.2 Sockets (PCIe 5.0 and PCIe 4.0 support) |
| SATA Ports | 4 x SATA 6Gb/s Connectors |
| RAID Support | RAID 0, 1, 5, 10 (NVMe) / RAID 0, 1, 10 (SATA) |
| USB4 Ports | 2 x USB4 USB Type-C ports (DisplayPort supported) |
| Rear USB Ports | 5 x USB 3.2 Gen 2 Type-A, 1 x USB 3.2 Gen 2 Type-C, 3 x USB 3.2 Gen 1 |
| HDMI Ports | 1 x Rear HDMI 2.1 Port, 1 x Front Internal HDMI Header |
| DisplayPort Output | Supported via USB4 Type-C Ports (up to 3840×2160@240 Hz) |
| Ethernet LAN | Realtek 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless LAN and Bluetooth | Qualcomm Wi-Fi 7 QCNCM865 (2.4/5/6 GHz, 320MHz) + Bluetooth 5.4 |
| Audio Codec | Realtek ALC1220 CODEC High Definition Audio |
| Fast Charging Support | USB Type-C Front Header with 65W PD 3.0 / QC 4+ |
| BIOS Features | 512 Mbit flash, AMI UEFI BIOS, Q-Flash Plus support |
| Operating System Support | Windows 11 64-bit |
| MPN | X870E AORUS ELITE X3D |
| EAN | 4719331876470 |
Warranty
| Brand | Gigabyte / AORUS |
| Product Model | X870E AORUS ELITE X3D |
| Warranty Duration | 3 Years Limited Warranty |
| Coverage Type | Local Hardware Repair / Replacement |
| Key Conditions | Valid proof of purchase required; terms vary by region |
